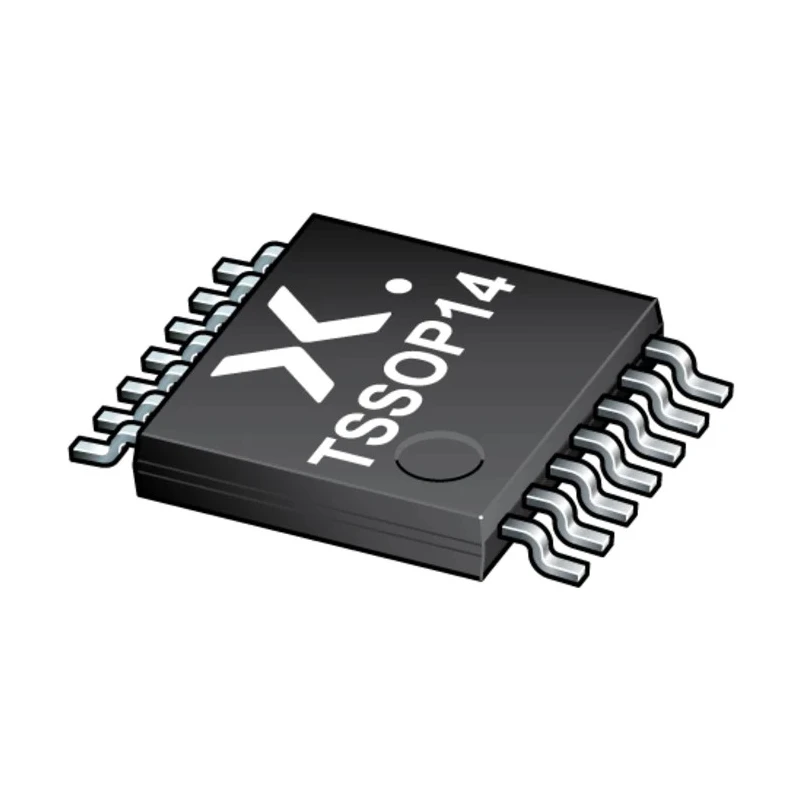

Nexperia Quad 2-Input AND Logic Gate, CMOS 74HC Family, 14-Pin TSSOP Package 74HC08PW-Q100,118

The Nexperia 74HC08PW-Q100,118 is a quad 2-input AND logic gate IC from the 74HC CMOS family, housed in a compact 14-pin Thin Shrink Small Outline Package (TSSOP). Designed for surface mounting, this device integrates four independent AND gates each with two inputs, enabling a wide range of digital logic applications.

Featuring CMOS input circuitry, the device offers excellent noise immunity and very low power dissipation across a supply voltage from 2 volts to a maximum of 6 volts. The maximum propagation delay time at a standard capacitive load is 23 nanoseconds, providing fast switching speeds suitable for high-performance circuits.

This component is automotive qualified under the AEC-Q100 Grade 1 standard, making it suitable for use in stringent automotive and industrial environments. It supports a wide operating temperature range from -40°C to 125°C, ensuring reliable operation under extreme conditions.

The device specifications include maximum high-level output current of -5.2 mA and a low-level output current of 5.2 mA. Its dimensions include a body length of approximately 5.1 mm and a height of 950 micrometers, emphasizing its compact footprint ideal for space-constrained applications.

Commonly used in electronic components, power & connector systems, and semiconductor logic IC applications, the 74HC08PW-Q100,118 enables efficient logic function integration on printed circuit boards for various industrial, automotive, and manufacturing systems.

This Logic Gate IC features four 2-input AND gates for versatile applications. CMOS input type ensures low power consumption and high noise immunity. Operates over a supply voltage range from 2V to 6V. Maximum propagation delay time is 23 nanoseconds at CL.

Automotive grade with AEC-Q100 qualification ensures high reliability. Wide operating temperature range from -40°C to 125°C. Compact TSSOP package with 14 pins provides easy surface mounting. Maximum high level output current is -5.2 mA and low level output current is 5.2 mA.
