| Country of Origin | China |
|---|---|
| Brand | Nexperia |
| Height | 0.65mm |
| Length | 1.65mm |
| Model | BZX585-C27,115 |
| Mount Type | Surface |
| Series | BZX585 |
| Maximum Operating Temperature | 150°C |
| Working voltage range | nominal 2.4 V to 75 V (E24 range) |
| Package Type | SOD-523 |
| Minimum Operating Temperature | -65°C |
| Pin Count | 2 |
| Number of Elements per Chip | 1 |
| Automotive Standard | AEC-Q101 |
| Maximum Power Dissipation Pd | 300mW |
| Diode Configuration | Single |
| Test Current It | 5mA |
| Maximum Reverse Leakage Current | 50nA |
| Nominal Zener Voltage Vz | 27V |
| Zener Type | Voltage Regulator |
| Maximum Zener Impedance | 80Ω |
| Typical Voltage Temperature Coefficient | 23.4mV/K |
| Total power dissipation | max. 300 mW |
| Non-repetitive Peak reverse power dissipation | max. 40 W |
| Two tolerance series | +- 2 pct and +- 5 pct |

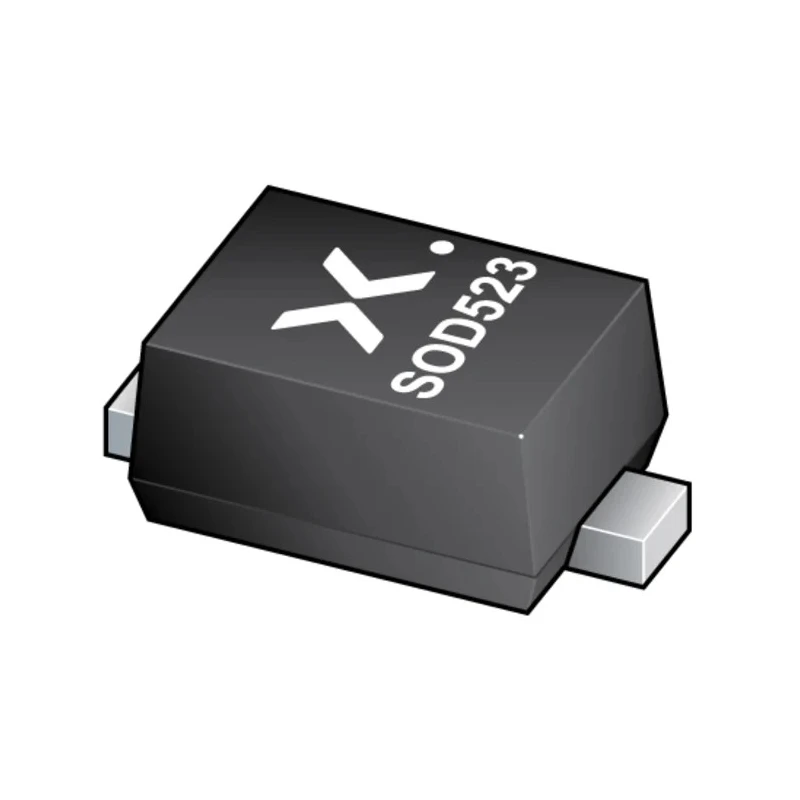

Nexperia BZX585-C27,115 is a voltage regulator Zener diode with a nominal Zener voltage of 27 V and a maximum power dissipation of 300 mW. This single diode is housed in a compact, surface mount SOD-523 2-pin package designed for efficient assembly in modern electronics.
This diode features a voltage tolerance of ±5%, making it suitable for applications requiring moderate precision voltage regulation. The device operates reliably across a broad temperature range from -65°C to 150°C, supporting use in demanding industrial, automotive, and commercial electronics environments.
The maximum reverse leakage current is limited to 50 nA, ensuring high efficiency in blocking reverse currents. The typical voltage temperature coefficient is 23.4 mV/K which provides predictable performance over wide temperature changes.
AEC-Q101 qualification certifies this model for automotive-grade applications, reflecting its high reliability and durability. The diode is ideal for low power voltage stabilization in segments such as power supplies, communication devices, and embedded control systems.
The BZX585 series includes 37 types with working voltages ranging nominally from 2.4 V to 75 V within the E24 standardized values. This specific model is part of the ±5% tolerance group (series C), making it suitable for general voltage regulation duties.
Nominal Zener voltage: 27 V. Maximum power dissipation: 300 mW. Mount type: Surface mount SOD-523. Operating temperature range: -65°C to 150°C. Test current: 5 mA. Voltage tolerance: ±5%. Maximum Zener impedance: 80 Ω. Maximum reverse leakage current: 50 nA.
Typical voltage temperature coefficient: 23.4 mV/K. AEC-Q101 automotive qualification.
This component is well suited for applications in industrial, automotive, power management, and electronic devices requiring stable voltage regulation at low power. Its small form factor and surface mount design allow for dense and compact circuit boards.
