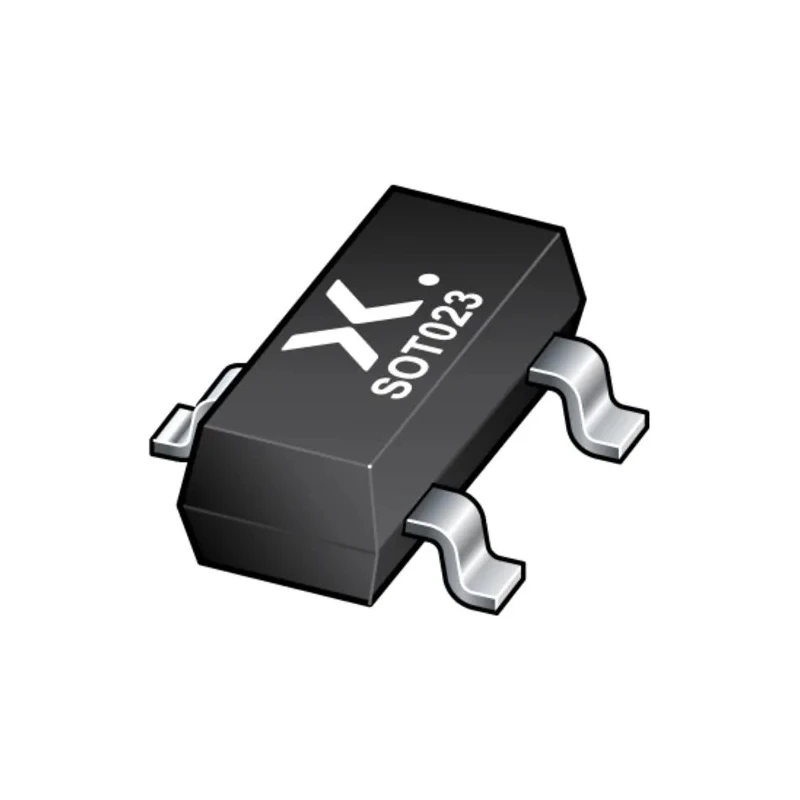

Nexperia General Purpose Diode Common Cathode 500 mA 50 V SOT-23 BAL74,215

Free Delivery in India | Lowest Global Shipping Charges

Nexperia General Purpose Diode Common Cathode 500 mA 50 V SOT-23 BAL74,215

Name: Nexperia General Purpose Diode Common Cathode 500 mA 50 V SOT-23 BAL74,215
Brand: Nexperia
SKU: 147650
Price: 0.03 USD
Availability: InStock



Category Switching Diodes Brand Nexperia Condition New

Specifications

Country of Origin	China
Brand	Nexperia
Height	1.2mm
Length	2.7mm
Model	BAL74,215
Width	1.7mm
Mount Type	Surface
Maximum Operating Temperature	150°C
Package Type	SOT-23
Sub Type	General Purpose Diode
Pin Count	3
Maximum Power Dissipation Pd	250mW
Diode Configuration	Common Cathode
Peak Non-Repetitive Forward Surge Current Ifsm	4A
Maximum Forward Voltage Vf	1.25V
Peak Reverse Recovery Time trr	4ns
Maximum Forward Current If	500mA
Maximum Peak Reverse Repetitive Voltage Vrrm	50V
Repetitive peak reverse voltage	max. 50 V
Continuous reverse voltage	max. 50 V
Repetitive Peak forward current	max. 500 mA
onsemi 75 V 200 mA Diode Low Leakage 3-Pin SOT-23 BAS116LT1GBrand	onsemi

Key Features

This diode supports a maximum forward current of 500 mA.
It features a peak reverse repetitive voltage of 50 V and a continuous reverse voltage maximum of 50 V.
Built with a compact SOT-23 3-pin surface mount package suitable for efficient PCB layouts.
Maximum forward voltage is 1.25 V with a peak non-repetitive forward surge current of 4 A.
It has a fast reverse recovery time of 4 ns enabling high-speed switching.
Power dissipation limit is 250 mW ensuring safe operation within thermal constraints.
Operating temperature can reach up to 150°C, suitable for demanding electronic environments.

Product Description

Nexperia BAL74,215 General Purpose Diode, common cathode type, designed for high-speed switching applications. This surface mount diode is fabricated using planar technology and encapsulated in a small SOT-23 plastic package. It operates at a continuous maximum forward current of 500 mA and withstands a repetitive peak reverse voltage of 50 V, making it suitable for diverse electronic circuit protection roles.

The BAL74,215 diode features a maximum forward voltage of 1.25 V and an impressive fast peak reverse recovery time of 4 ns, enabling efficient high-frequency switching with minimal losses. Its peak non-repetitive forward surge current rating of 4 A ensures reliable handling of transient currents.

With a maximum power dissipation of 250 mW and an operational temperature range reaching 150°C, this diode provides robust performance under thermal stress, suitable for industrial, automotive, consumer electronics, and telecommunication applications.

The diode’s compact SOT-23 package size (2.7 mm length, 1.7 mm width, and 1.2 mm height) supports high-density PCB designs and surface mounting manufacturing techniques. High-speed switching diode optimized for switching circuits.

Common cathode configuration for efficient circuit integration. Continuous current rating of up to 500 mA. Repetitive peak reverse voltage of 50 V ensures circuit protection. Fast recovery time of 4 ns reduces switching losses.

Low forward voltage drop of 1.25 V for energy efficiency. Compact SOT-23 surface mount package for space-saving design. Wide operating temperature range up to 150°C for harsh environments.

This diode is well-suited for use in power supplies, rectification circuits, switching regulators, and signal processing modules. Engineers can integrate the BAL74,215 diode in industrial equipment, automotive electronics, telecommunications, and consumer electronic designs requiring reliable and fast switching semiconductor components.

Explore our extensive range of semiconductor components and Switching Diodes on EnvMart for additional alternatives and solutions optimized for your applications.
