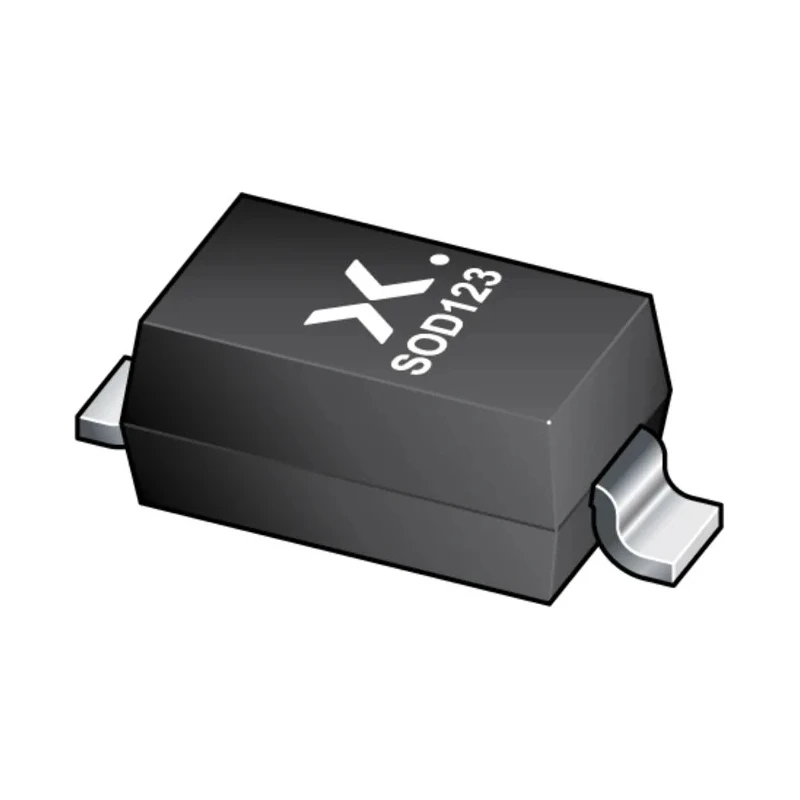

Nexperia General Purpose Switching Diode, Single, 215 mA, 100 V, 357 mW Power, SOD-123 Package BAS16GWX

Nexperia BAS16GWX is a high-performance general purpose switching diode designed for electronic applications requiring fast switching and robust reliability. This single diode device supports a maximum forward current of 215 mA and is optimized for low capacitance and leakage currents, making it suitable for high-speed circuits.

Encapsulated in a small SOD-123 surface-mount plastic package, the diode is ideal for compact and high-density circuit board assemblies, where space constraints are critical. It is capable of handling peak reverse repetitive voltages up to 100 V and forward voltage of 1.25 V, ensuring stable operation under typical electronic loads.

The diode has a maximum power dissipation of 357 mW and can safely withstand transient peak surge currents of up to 4 A, suitable for protecting circuits from voltage spikes. It maintains performance across a wide temperature range from -55°C to 150°C, addressing demanding industrial and automotive environments.

Certified to the automotive AEC-Q101 standard, the BAS16GWX switching diode is well-suited for automotive, industrial, consumer electronics, telecommunications, and power management applications. Its low capacitance of less than or equal to 1.5 pF and extremely low reverse recovery time of 4 ns allow for efficient switching at high frequencies.

High-speed switching diode with low capacitance and leakage currents. Compact SOD-123 plastic surface mount package compatible with dense PCB layouts. Supports peak reverse voltage up to 100 V and max forward current of 215 mA.

Wide operating temperature range from -55°C to 150°C for reliability. Meets AEC-Q101 automotive qualification for performance in vehicular systems. Power dissipation capacity of 357 mW and transient surge current rating of 4 A.

Physical dimensions of 2.8 x 1.7 x 1.3 mm enable flexible design integration.

This diode is extensively used in industrial and laboratory electronic equipment, telecommunications devices, power electronics, automotive control units, and other high-speed switching applications. Its robust design and automotive certification ensure durability and high reliability in harsh operational environments.
