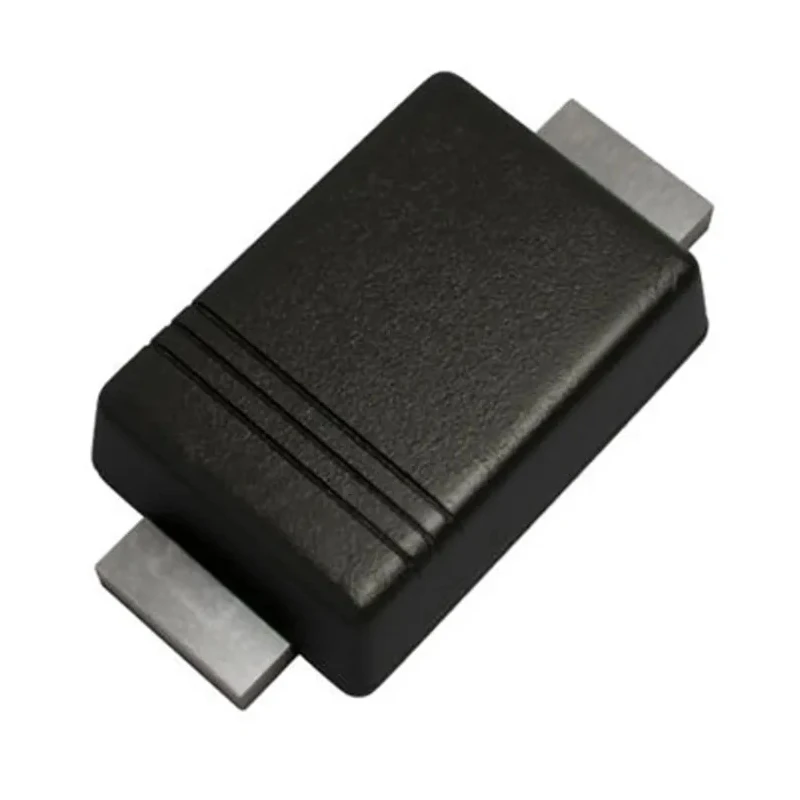

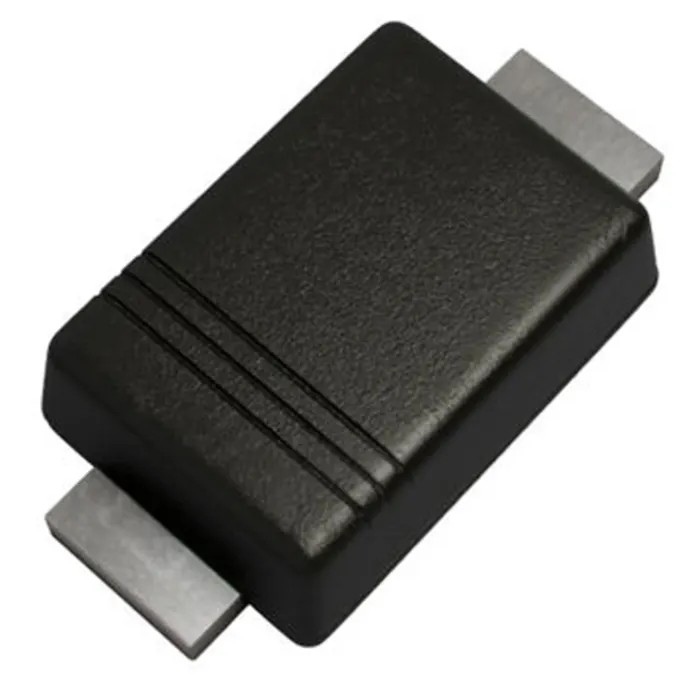

ROHM 30 V 500 mA Schottky Diode Surface Mount SOD-323HE RSX051VAM30TR

Free Delivery in India | Lowest Global Shipping Charges

ROHM 30 V 500 mA Schottky Diode Surface Mount SOD-323HE RSX051VAM30TR

Name: ROHM 30 V 500 mA Schottky Diode Surface Mount SOD-323HE RSX051VAM30TR
Brand: ROHM
SKU: 147643



Category Schottky Diodes & Rectifiers Brand ROHM Condition New

Specifications

Country of Origin	India
Brand	ROHM
Height	0.8mm
Length	2.1mm
Model	RSX051VAM30TR
Width	1.5mm
Mount Type	Surface
Maximum Operating Temperature	150°C
Package Type	SOD-323HE
Standards/Approvals	RoHS
Pin Count	2
Maximum Continuous Forward Current If	500mA
Peak Reverse Repetitive Voltage Vrrm	30V
Diode Configuration	Single
Rectifier Type	Schottky
Peak Reverse Current Ir	200μA
Peak Non-Repetitive Forward Surge Current Ifsm	5A
Maximum Forward Voltage Vf	0.39V

Key Features

Compact SOD-323HE package with 2 pins for surface mounting.
Maximum continuous forward current of 500 mA ensures reliable operation.
Peak reverse repetitive voltage rated at 30 V for durability.
Low maximum forward voltage of 0.39 V reduces power loss.
High surge current capability of 5 A for transient tolerance.
Maximum operating temperature up to 150°C for high temperature applications.
Pin count of 2 supports single diode configuration.
RoHS compliant for environmental safety.

Product Description

ROHM RSX051VAM30TR is a high-reliability Schottky diode designed for surface-mount applications. It features a compact SOD-323HE 2-pin package that fits well in space-constrained PCB layouts. Rated for a maximum continuous forward current of 500 mA and a peak reverse repetitive voltage of 30 V, this diode is suitable for power rectification and protection in various electronic circuits.

The device exhibits a low forward voltage drop of 0.39 V, reducing conduction losses and improving efficiency, particularly in low voltage and high-frequency switching applications. Its robust peak non-repetitive forward surge current capacity of 5 A enables tolerance against transient conditions.

With a maximum operating temperature of 150°C, the RSX051VAM30TR diode is suitable for environments requiring stable performance under elevated thermal stress. The single diode configuration and a pin count of 2 simplify integration into circuits requiring Schottky-type rectification.

This product complies with RoHS standards, ensuring it meets environmental regulations restricting hazardous substances. The small mold type (TUMD2M) construction further enhances the device's reliability and suitability for modern electronics manufacturing.

Compact 2-pin SOD-323HE surface mount package ideal for space-saving designs. Maximum continuous forward current of 500 mA for steady-state performance. Peak reverse repetitive voltage of 30 V for robust voltage handling.

Low forward voltage drop of 0.39 V to minimize power dissipation. Surge current capability of 5 A supports transient load conditions. High maximum operating temperature of 150°C for thermal endurance. Single Schottky diode configuration with 2 pins for ease of use.

RoHS compliant ensuring adherence to environmental standards. Small mold type construction for enhanced reliability. Ideal for industrial, consumer electronics, and power management applications.

This diode from ROHM is widely employed in power rectification, fast switching, voltage clamping, and reverse polarity protection circuits in industrial, laboratory, and consumer electronic devices. Explore more ROHM semiconductor components and Schottky diodes on EnvMart for your specific application needs.
