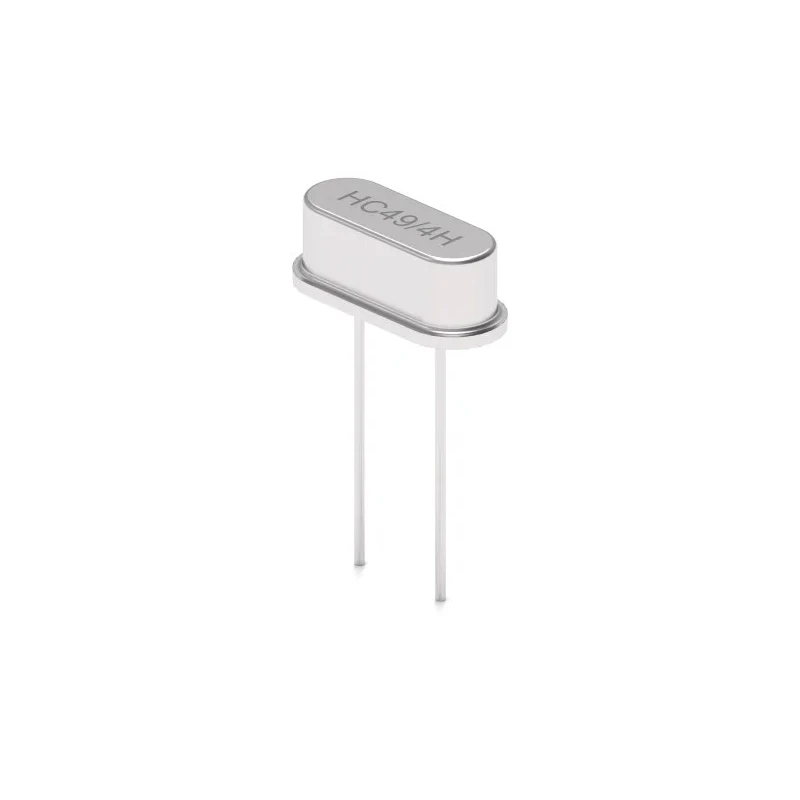

IQD 7.3728 MHz Crystal Unit ±30 ppm HC-49 2-Pin 4.1 mm Height 11.05 mm Length 4.7 mm Width LFXTAL003335B

IQD LFXTAL003335B Crystal Unit is a precise electronic component operating at a standard frequency of 7.3728 MHz and frequency tolerance of ±30 ppm. The HC-49 package provides a robust through-hole mounting format with 2 pins, ideal for stable and reliable placement on printed circuit boards.

This crystal unit features a 30 pF load capacitance which helps in achieving optimized frequency stability in oscillator circuits. Its physical dimensions measure 11.05 mm in length, 4.7 mm in width, and 4.1 mm in height, fitting industry standard sizes for easy replacement and system design.

Constructed with an industry standard leaded package, this unit is resistance welded and hermetically sealed in an inert atmosphere with glass to metal seals on its leads. This ensures excellent protection against environmental factors and mechanical stresses, prolonging service life under industrial and laboratory conditions.

The device supports a minimum operating temperature of -10°C and a maximum of 60°C which suits various industrial, laboratory, and commercial electronic applications requiring temperature tolerance and frequency accuracy.

With a series resistance of 60 ohms, it ensures high-quality signal resonance essential for precision timing and frequency control in electronic devices. The crystal is compliant with REACH and RoHS standards, endorsing its environmental safety credentials.

Standard frequency of 7.3728 MHz with tight tolerance. Through-hole mount type with 2-pin design. Compact HC-49 package measurements 11.05 x 4.7 x 4.1 mm. Hermetically sealed construction for durability. Operating temperature range from -10°C to 60°C.

Load capacitance of 30 pF for frequency stability. Series resistance of 60Ω for signal quality. Compliance with REACH and RoHS regulations.

This Crystal Unit is well suited for use in electronic components manufacturing, testing instruments, communication devices, and other applications requiring precise frequency standards. Explore more in the Electronics & Electricals category for compatible components and building blocks on EnvMart.
