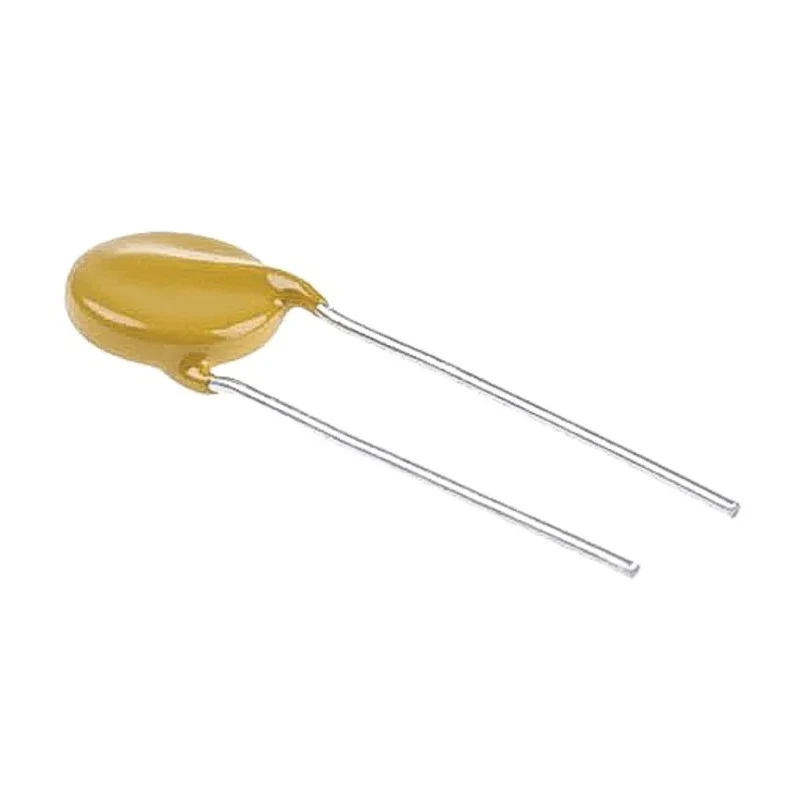

Vishay Metal Oxide Varistor 30 pF Capacitance 5 A Clamping Current 1200 V Clamping Voltage VDRS05C460BSE

Vishay VDRS05C460BSE is a high-quality Metal Oxide Varistor designed for surge protection in electronic circuits and devices. Featuring a capacitance of 30 pF and a clamping current capacity of 5 A, this varistor efficiently suppresses voltage transients and safeguards sensitive components.

Its clamping voltage of 1200 V provides robust protection against voltage spikes, while the varistor voltage of 750 V ensures precise activation during surges. The compact form factor includes a 7 mm diameter and 33 mm length, making it suitable for space-constrained circuit board applications.

Engineered to withstand operating temperatures from -40°C up to 85°C, the VDRS05C460BSE ensures reliable performance in a wide range of environmental conditions. It supports a maximum AC voltage of 460 V and a maximum DC voltage of 615 V, accommodating diverse power environments.

The device boasts an energy rating of 21 joules and a maximum surge current capacity of 400 A, enabling it to absorb significant transient energy loads. Its lead pitch of 5 mm aligns with standard PCB spacing requirements, facilitating straightforward assembly.

Compliant with critical industry standards including CSA, RoHS, DVE, and UR, this varistor guarantees safety and industry-grade reliability. Bulk packaging supports efficient production workflows, ideal for both prototype development and volume manufacturing.

Capacitance of 30 pF ensures stable performance under voltage surges. Clamping current rating of 5 A to handle transient surges effectively. Clamping voltage rated at 1200 V for reliable over-voltage protection. Compact diameter of 7 mm and length of 33 mm for space-efficient PCB designs.

Operates in temperature range from -40°C to 85°C for robust application environments. Rated maximum AC voltage of 460 V and DC voltage of 615 V suitable for various electrical circuits. Energy rating of 21J offers effective energy absorption in surge conditions.

Bulk packaging to facilitate manufacturing processes and easy integration. Lead pitch of 5 mm compatible with standard circuit boards. Certified with CSA, RoHS, DVE, and UR standards ensuring compliance and safety.

This Vishay Metal Oxide Varistor is well suited for industrial, electronic manufacturing, telecommunications, power supply protection, and other surge suppression applications. It integrates seamlessly into electronic designs to enhance durability and electrical safety. Explore more in the Varistor category on EnvMart for comprehensive surge protection solutions.
