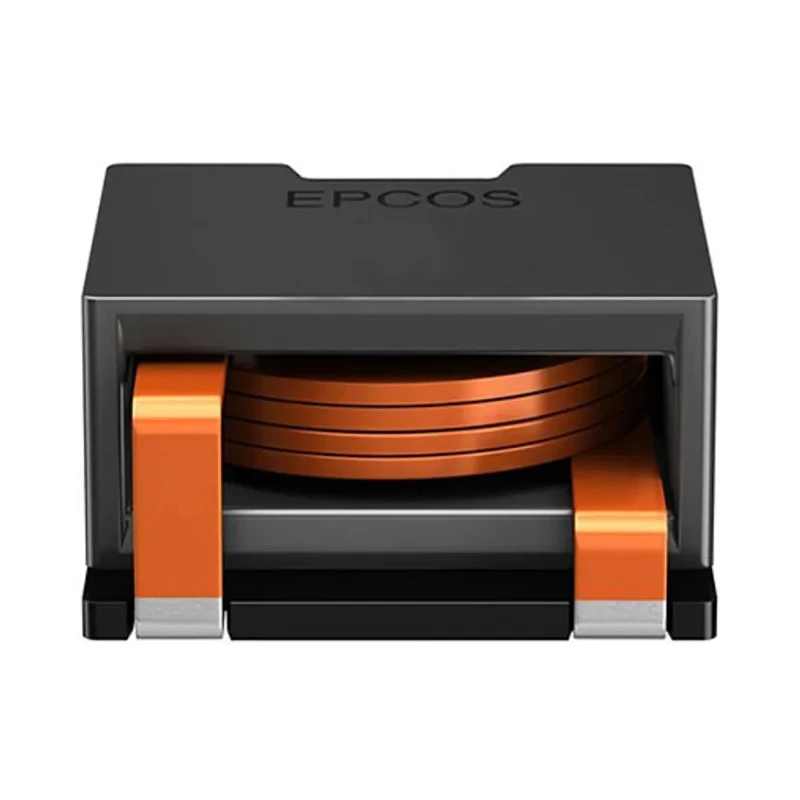

TDK Shielded Wirewound Surface Mount Inductor with Ferrite Core 30μH ±10% 10.1A IDC B82559B0303A019

TDK B82559B0303A019 is a shielded wirewound Surface Mount Inductor featuring a ferrite core, designed for electronic and industrial applications requiring precise inductance and high current capability. With a rated inductance of 30μH ±10% tolerance, this inductor delivers robust electrical performance.

The component boasts a maximum DC current rating of 10.1 A and low DC resistance of 18.65mΩ, which contributes to efficient power management in circuit designs. Its ferrite core construction ensures optimal magnetic properties and effective shielding to minimize electromagnetic interference.

Certified to automotive standard AEC-Q200, this inductor meets strict quality and reliability requirements demanded by automobile electronics. It is RoHS compliant, supporting environmentally safe manufacturing standards.

Operating within a wide temperature range of -40°C to 150°C, it is suitable for harsh thermal environments common in industrial and automotive applications. The surface mount termination style facilitates easy placement in modern PCB manufacturing processes.

The device is moulded for enhanced mechanical resilience and features a maximum self-resonant frequency of 2 MHz, enabling use in high-frequency circuits such as DC-DC converters, POL converters, VRM modules, and solar converters.

Magnetically shielded wire wound choke providing stable inductance. Low DC resistance ensures minimal power loss. Ferrite core material for efficient magnetic performance. Compliance with AEC-Q200 automotive standards ensures durability.

Wide operating temperature range for use in demanding environments. Surface mount termination style suitable for automated assembly. Moulded construction provides mechanical strength. High self-resonant frequency for advanced electronic applications.

Compact size and 2-pin configuration allow versatile circuit integration. Applications include DC-DC converters, POL converters, VRM modules, and solar power converters in industrial, automotive, and renewable energy sectors.

Originating from China, this TDK inductor is a reliable choice for modern electronic components requiring compact size and high electrical performance. For more detailed technical documentation and design support, consult the TDK product resources and technical datasheets.
