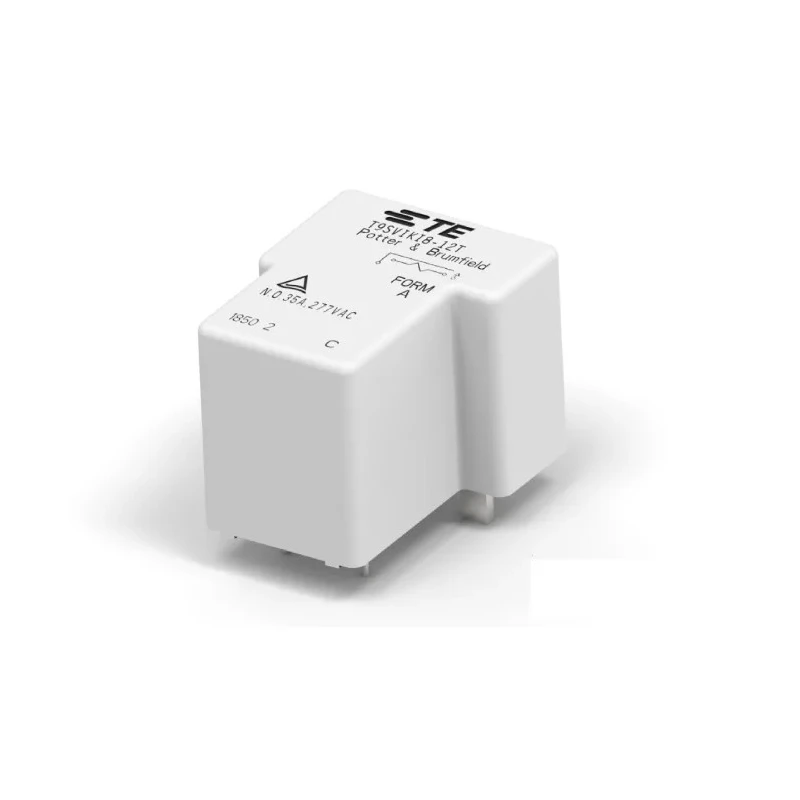

TE Connectivity PCB Power Relay, 12V DC Coil, 35A Switching Current, SPST, PCB Mount T9SV1K18-12T
Specifications
| Country of Origin | China |
|---|---|
| Brand | TE Connectivity |
| Height | 32.5mm |
| Length | 27.4mm |
| Model | T9SV1K18-12T |
| Width | 20.4mm |
| Mount Type | PCB |
| Contact Material | Silver Alloy |
| Series | T9S |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | SPST |
| Minimum Operating Temperature | -40°C |
| Switching Current | 35A |
| Terminal type | PCB Pin |
| Contact Resistance | 75mΩ |
| Standards/Approvals | RoHS, CE |
| Coil Resistance | 64Ω |
| Coil Voltage | 12V dc |
| Switching AC Voltage | 277V ac |
| Coil Power | 2.25W |
Key Features
- PCB mount relay features a 12V DC coil and SPST contact configuration.
- Rated for a maximum switching current of 35A for demanding applications.
- Highly durable silver alloy contacts ensure consistent performance.
- Compact form factor with dimensions of 27.4mm length, 20.4mm width, and 32.5mm height.
- Suitable for photovoltaic inverters, electric vehicle charging stations, and automated equipment.
- Wide operating temperature range from -40°C to 85°C for versatile installation.
- Low coil resistance of 64Ω and coil power of 2.25W enhances efficiency.
- Complies with RoHS and CE standards for environmental and quality assurance.
Product Description
TE Connectivity T9SV1K18-12T PCB Power Relay is engineered for reliable, high-capacity switching in industrial and commercial electric systems. Featuring a robust SPST contact configuration, this relay accommodates a 12V DC coil and supports up to 35A switching current, making it suitable for applications involving substantial power demands.
PCB mount design allows seamless integration into electronic assemblies. Silver alloy contacts offer excellent conductivity and durability for prolonged operational life. Operating temperature ranges from -40°C to 85°C, ensuring functionality in harsh environments.
PCB pin terminals simplify installation and secure circuit board connectivity. Compact footprint: 27.4mm (L) x 20.4mm (W) x 32.5mm (H). Coil resistance of 64Ω and coil power of 2.25W balance energy efficiency and performance.
Switching voltage up to 277V AC, ideal for high-voltage systems. Low contact resistance (75mΩ) ensures minimal power loss during operation. Complies with RoHS and CE standards, supporting global industrial requirements.
This relay is widely applied in photovoltaic inverter systems, electric vehicle charging infrastructure, and automated manufacturing equipment - where consistent, reliable switching is vital. Its professional build quality is ideal for OEMs and electronics designers in need of robust switchgear for printed circuit boards.
Industrial use cases include: solar energy systems, electric vehicle stations, automation panels, and commercial power control. The versatility and durability make it suitable for environments demanding high switching currents and secure relay operation.
Explore more TE Connectivity relays in the Power Relays category at EnvMart for compatible products and solutions for industrial automation and power distribution.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The relay supports a maximum switching current of 35A, making it suitable for demanding applications.
This model operates with a coil voltage of 12V DC.
The relay has a compact footprint with dimensions of 27.4mm in length, 20.4mm in width, and 32.5mm in height.
It features a Single Pole Single Throw (SPST) contact configuration.
The relay operates within a temperature range of -40°C to 85°C, allowing for versatile installation in various environments.
It utilizes PCB pin terminals for secure circuit board connectivity.
The coil resistance of this relay is 64Ω, contributing to its efficiency.
The contacts are made of silver alloy, which ensures good conductivity and durability.
It can switch AC voltage up to 277V, making it suitable for high-voltage systems.
This relay complies with RoHS and CE standards, ensuring it meets environmental and quality requirements.
The coil power for this relay is 2.25W, balancing energy efficiency and performance.
It is suitable for applications such as photovoltaic inverters, electric vehicle charging stations, and automated equipment.
