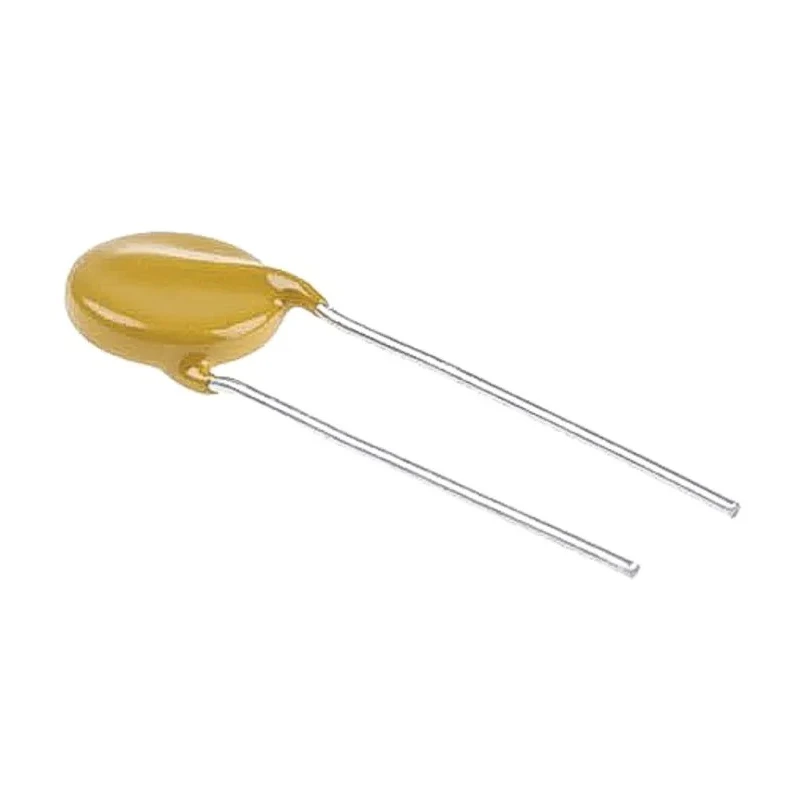

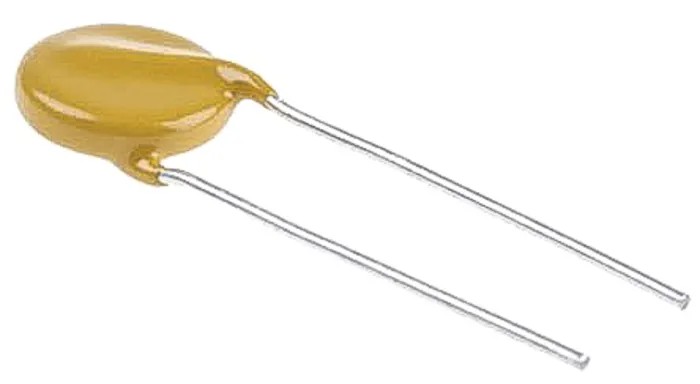

Vishay Metal Oxide Varistor 30 pF 5 A Clamping 1200 V 7 mm Diameter VDRS05C460BSE

Vishay VDRS05C460BSE Metal Oxide Varistor is a robust surge protection component widely used in electronic circuits to safeguard sensitive devices against voltage spikes and transient surges. Featuring a capacitance of 30 pF and a clamping current rating of 5 A, this varistor effectively limits transient voltages to a maximum clamping voltage of 1200 V. Its 7 mm diameter and 33 mm length dimensions provide a compact form factor suitable for placement on densely populated PCBs.

This varistor operates reliably over a broad temperature range from -40°C to 85°C, making it suitable for industrial, commercial, and consumer electronic applications exposed to varying environments. The product withstands maximum AC voltage of 460 V and DC voltage of 615 V, ensuring comprehensive protection under different electrical conditions.

With an energy rating of 21 joules, the VDRS05C460BSE model absorbs significant transient energy, augmenting circuit durability and longevity. It conforms to major industry standards including CSA, RoHS, DVE, and UR, highlighting its compliance with safety and environmental regulations. The lead pitch of 5 mm facilitates straightforward installation on standard PCBs, enhancing manufacturing efficiency.

Recommended for use in surge protective devices, power supplies, control systems, and various industrial electronics, this Vishay varistor supports critical applications requiring stable and repeatable voltage transient suppression. Its bulk packaging suits volume production requirements.

Varistor voltage is rated at 750 V for optimal circuit protection. Clamping voltage is 1200 V to limit transient voltage spikes. Maximum AC voltage is 460 V AC and maximum DC voltage is 615 V DC. Compact size with 7 mm diameter and 33 mm length ensures easy PCB integration.

Operating temperature range spans from -40°C to 85°C for versatile environmental conditions. Energy rating of 21 J supports high surge absorption capability. Compliant with CSA, RoHS, DVE, and UR standards for quality assurance.

Lead pitch measures 5 mm to match standard PCB layouts for assembly efficiency. Explore a wide selection of electronic components including Varistors at EnvMart for reliable industrial and commercial applications.
