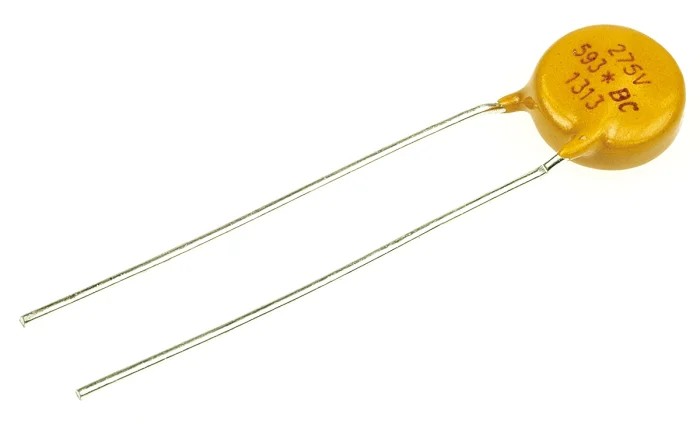

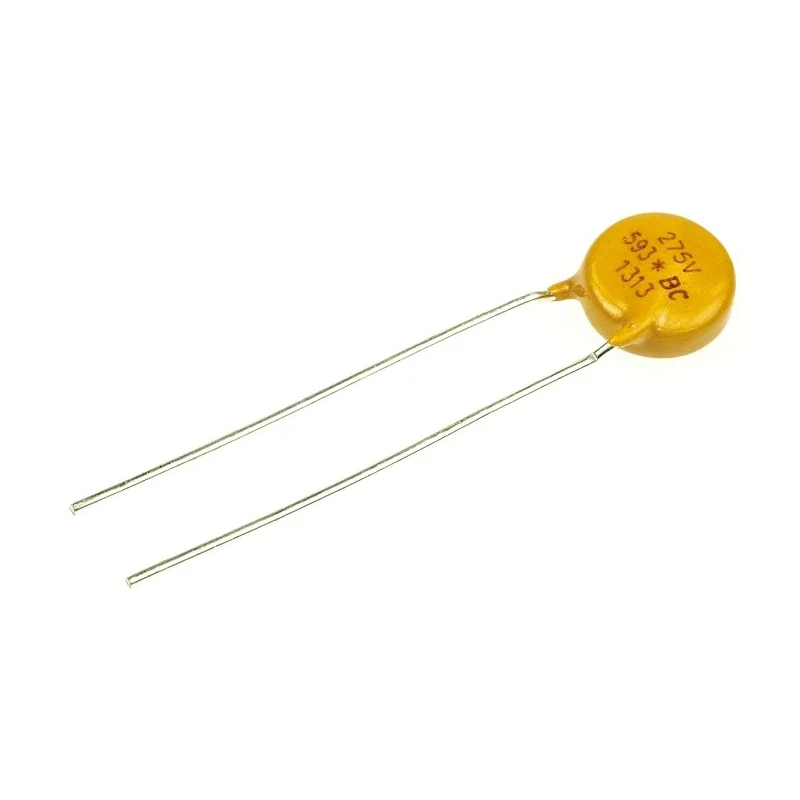

Vishay Metal Oxide Varistor 140 pF 10 A, Clamping Voltage 376 V, Varistor Voltage 430 V, Disc Radial Mount VDRS07H275BSE
Specifications
| Country of Origin | India |
|---|---|
| Diameter | 9mm |
| Brand | Vishay |
| THICKNESS | 4.9mm |
| Length | 28mm |
| Model | VDRS07H275BSE |
| Mount Type | Radial |
| Series | VDRS - E |
| Energy Rating | 496J |
| Maximum Operating Temperature | 85°C |
| Capacitance | 140pF |
| Minimum Operating Temperature | -40°C |
| Maximum dc Voltage | 895V dc |
| Standards/Approvals | IEC 61051-1, VDE, UL 1449, CSA |
| Package/Case | Disc |
| Pin Count | 2 |
| Termination Style | Radial |
| Lead Pitch | 5mm |
| Maximum AC Voltage | 680V ac |
| Clamping Voltage VC | 376V |
| Clamping Current | 10A |
| Maximum Surge Current | 1.2kA |
| Varistor Voltage | 430 V |
| Metal oxide varistor,9mm dia 275VrmsBrand | Phycomp |
| Panasonic, ZNR Metal Oxide Varistor 120pF 10A, Clamping 710V, Varistor 430VBrand | Panasonic |
Key Features
- Has a varistor voltage rating of 430 V and clamping voltage of 376 V.
- Designed with a radial mount type and disc package for easy PCB insertion.
- Operates effectively from -40°C to 85°C temperature range.
- Maximum AC voltage rating of 680 V and DC voltage rating of 895 V.
- Capacitance is 140 pF facilitating transient voltage suppression.
- Capable of handling peak surge current up to 1.2 kA.
- Compact size with 9 mm diameter and 28 mm length.
- Complies with IEC 61051-1, VDE, UL 1449, and CSA safety standards.
Product Description
Vishay VDRS07H275BSE Metal Oxide Varistor is engineered for protection against transient voltage spikes and surges in electronic circuits. Featuring a capacitance of 140 pF and a clamping current of 10 A, it efficiently clamps voltage surges to a maximum of 376 V, ensuring sensitive components remain safeguarded.
This varistor has a nominal varistor voltage of 430 V and is designed with a radial mount and disc package type, facilitating easy and secure PCB mounting. Its compact dimensions include a 9 mm diameter, 4.9 mm thickness, and 28 mm length, making it suitable for space-constrained applications.
It supports a maximum AC voltage of 680 V and a maximum DC voltage of 895 V, capable of withstanding surges up to 1.2 kA peak current. Operating temperature ranges from -40°C to 85°C, making it reliable for diverse environmental conditions.
Manufactured complying with international standards IEC 61051-1, VDE, UL 1449, and CSA, this varistor assures quality and safety in industrial, commercial, and consumer electronic surge protection applications.
The energy absorption capacity of 496 joules enables it to handle substantial transient energy, suitable for protecting power supplies, consumer electronics, and industrial equipment from voltage spikes.
Varistor voltage: 430 V. Clamping voltage: 376 V. Clamping current: 10 A. Mount type: Radial with disc package. Capacitance: 140 pF. Diameter: 9 mm. Lead pitch: 5 mm. Operating temperature: -40°C to 85°C. Maximum surge current: 1.2 kA.
Energy rating: 496 J.
This varistor is ideal for use in industrial electronics, power distribution systems, and consumer electronic devices to enhance operational reliability and prevent damage from transient electrical events. Explore more Vishay surge protection components and Varistors at EnvMart for your electronic manufacturing and repair needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The varistor voltage rating is 430 V.
The maximum clamping voltage is 376 V.
It can handle a maximum surge current of 1.2 kA.
The varistor has a diameter of 9 mm, a thickness of 4.9 mm, and a length of 28 mm.
The capacitance is 140 pF.
It operates effectively within a temperature range of -40°C to 85°C.
This model features a radial mount type with a disc package.
The maximum AC voltage rating is 680 V, and the maximum DC voltage rating is 895 V.
It complies with IEC 61051-1, VDE, UL 1449, and CSA safety standards.
The energy absorption capacity is 496 joules.
This model has a pin count of 2.
This varistor belongs to the VDRS - E series.
