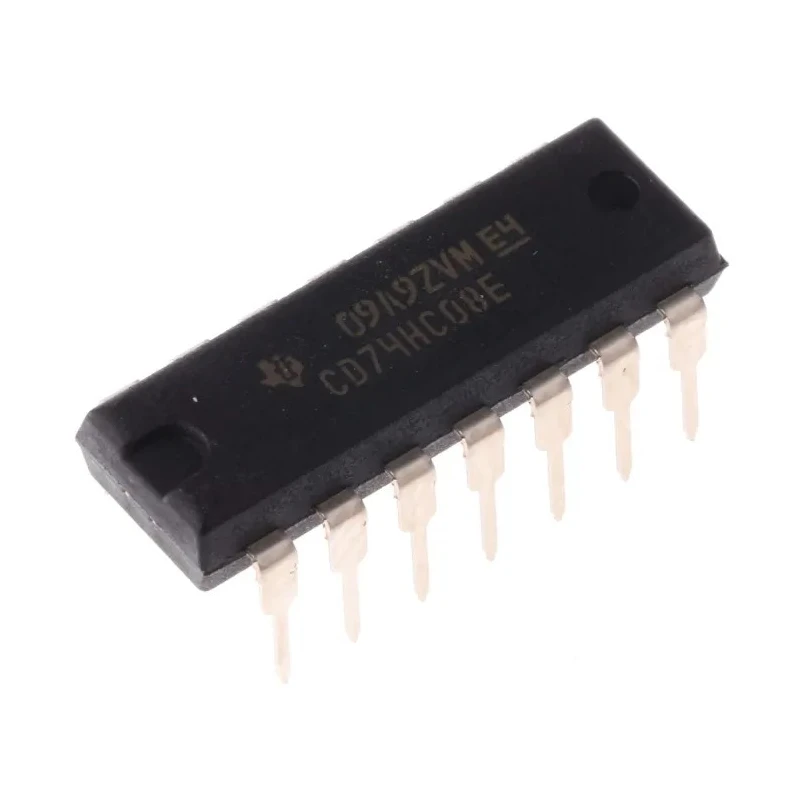

Texas Instruments 4 2-Input AND Logic Gate, CMOS, 14-Pin PDIP, Operating Voltage 2-6 V CD74HC08E

Texas Instruments CD74HC08E is a high-speed CMOS quad 2-input AND logic gate integrated circuit designed for use in complex digital logic functions. Packaged in a 14-pin PDIP, it supports through-hole mounting and provides four independent 2-input AND gates within a single IC.

This logic gate operates efficiently within a voltage range of 2 to 6 volts, leveraging silicon gate CMOS technology to achieve high-speed performance similar to LSTTL logic but with significantly lower power consumption. Its CMOS inputs and outputs allow compatibility with a wide range of digital circuits following CMOS logic standards.

The device is capable of operating in extreme conditions with a temperature range from -55°C to 125°C, making it suited for industrial and commercial applications requiring durability and reliability. Each gate’s maximum propagation delay at a capacitive load is 33ns, ensuring rapid switching in digital signal processing.

The CD74HC08E has a 14-pin dual in-line package (PDIP), measuring 19.3mm in length and 4.57mm in height, providing a compact footprint for PCB layouts. The device’s output currents can handle ±5.2mA levels, optimizing it for driving various downstream logic components. While it does not include Schmitt Trigger input, it excels in standard AND Logic Gate operations.

This IC is widely used in industrial automation, embedded electronic systems, instrumentation, and control logic circuits where reliable AND gate functionality is essential. It supports complex gate-level integration in logic design, digital counting, timing, and decision-making circuits.

Quad 2-input AND gates provide multiple logic functions within one IC. Low power CMOS technology reduces energy consumption in devices. Wide operating temperature and voltage range enhance application versatility. Standard 14-pin PDIP ensures compatibility with legacy and new PCBs.

Suitable for industrial, consumer electronics, laboratory instrumentation, and automation systems.
