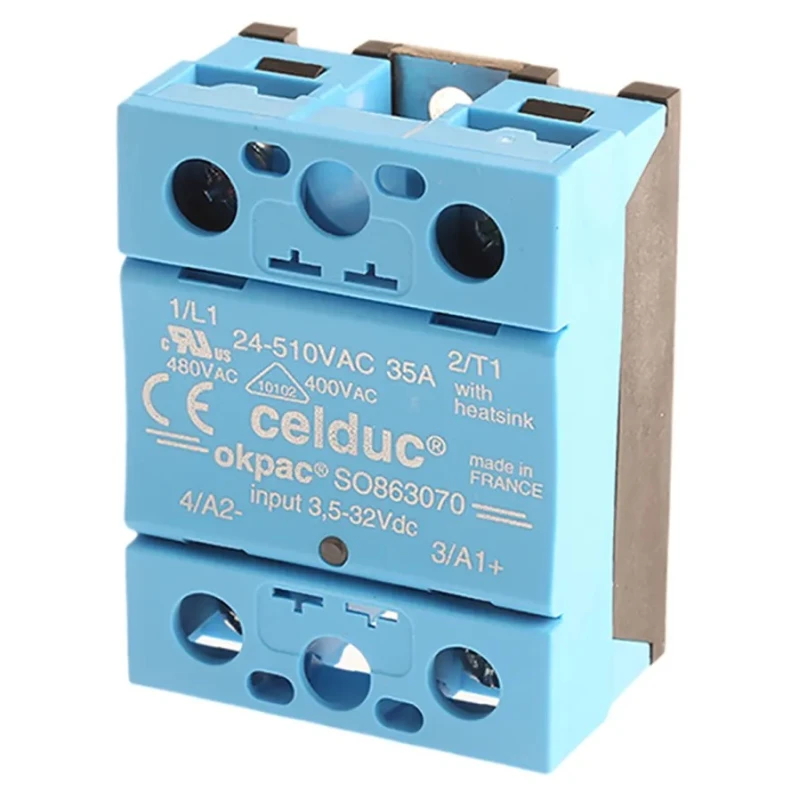

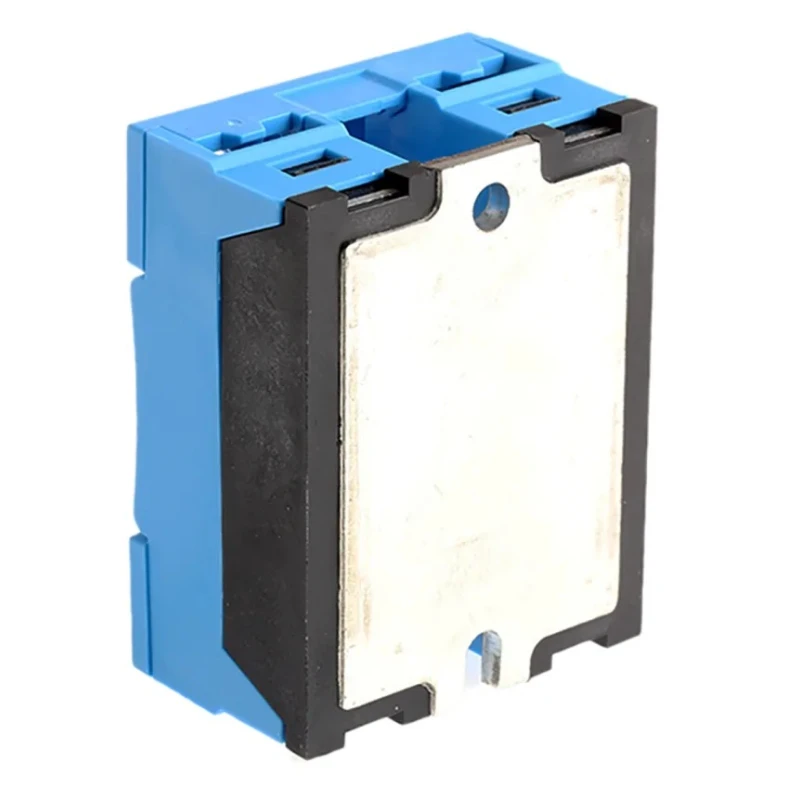

Celduc SO8 Series Solid State Relay, 40 A Load, DIN Rail Mount, 510 Vrms Load, 32V Control SO863070

Celduc SO863070 SO8 Series Solid State Relay is engineered for reliable single-phase power switching applications. This relay supports a maximum load current of 40 A and withstands load voltages up to 510 Vrms, making it suitable for industrial, automation, and electrical control systems. The relay is designed for DIN rail mounting, facilitating easy and efficient installation within electrical enclosures and control panels.

Equipped with a wide control voltage range of 3 to 32 V DC and regulated control current, the SO8 series provides flexible and precise switching capability. Its zero cross switching minimizes electrical noise, enhancing system stability. Voltage protection components for input (transil) and output (VDR) safeguard against interference, ensuring reliable operation under challenging electrical conditions.

The relay features a green LED input indicator for clear operating status visualization. Its triac output type and SPST contact configuration are optimized for switching resistive and inductive loads in industrial and HVAC applications.

Compact in dimension with 58.5 mm length, 44.8 mm width, and 30 mm height, and an IP20 rating, the SO863070 offers robust protection and suitable form factor for space-limited installations. Operating temperatures range from -55°C to 100°C, supporting usage in diverse environmental conditions.

Supports a maximum load current of 40 A operating at up to 510 Vrms load voltage. DIN rail mounting ensures secure and convenient installation in control panels. Wide control voltage range from 3 V to 32 V DC with regulated current.

Designed with zero cross switching for reduced electrical noise. Constructed for high immunity to interference with voltage protection on input and output. Equipped with a green LED input display for visual status indication.

Uses a triac output type with SPST contact configuration for single-phase applications. Compact size: 58.5 mm length, 44.8 mm width, and 30 mm height. Operational temperature range from -55°C up to 100°C. Rated with IP20 protection and screw terminal type connections.

This solid state relay is ideal for industrial automation, electrical systems control, HVAC systems, manufacturing equipment, and other commercial electrical switching applications. It enhances efficiency, reliability, and noise reduction in electrical controls.
