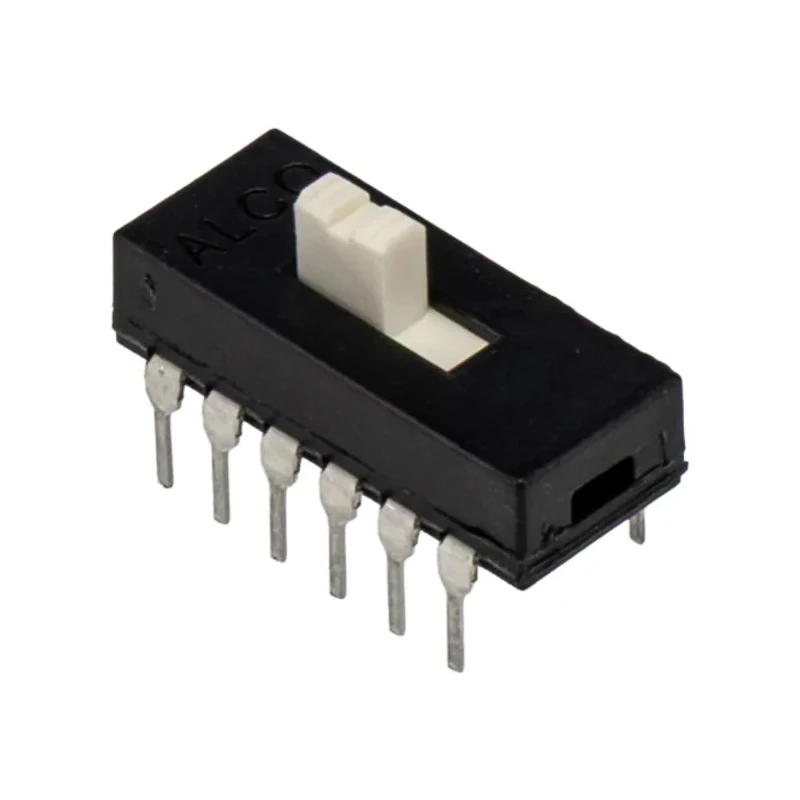

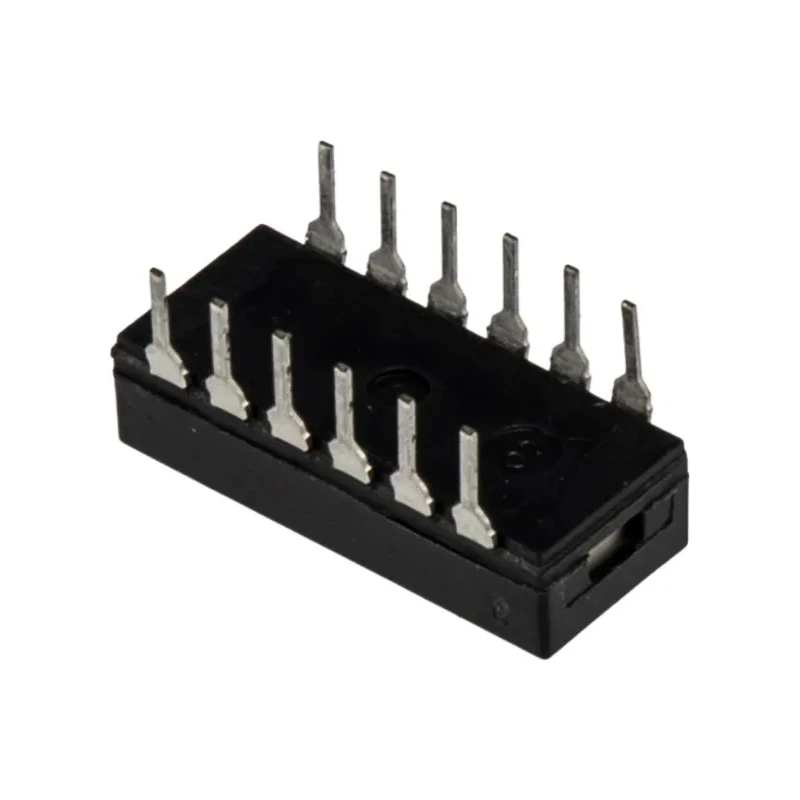

TE Connectivity PCB Slide Switch 4PDT Latching 300mA 115V AC Nylon ASE4204
Specifications
| Country of Origin | India |
|---|---|
| Brand | TE Connectivity |
| Operating Temperature Range | -40°C +80°C, making them particularly suited to harsh environments |
| Length | 17.38mm |
| Model | ASE4204 |
| Depth | 7.36mm |
| Width | 7.37mm |
| Mount Type | PCB |
| Series | ASE |
| Maximum Operating Temperature | 80°C |
| Contact Configuration | 4PDT |
| Switch Configuration | On-On-On |
| Minimum Operating Temperature | -40°C |
| Terminal type | Solder |
| Standards/Approvals | RoHS, UL |
| Switch Operation | Latching |
| Switch Contact Current | 300mA |
| Mechanical Life | 15000Cycles |
| Contact AC Voltage | 115V ac |
| Electrical Life | 10000 operations |
| Actuator Material | Nylon |
| TE Connectivity PCB Slide Switch 4PDT Latching 300 mA @ 115 V dc SlideBrand | TE Connectivity |
Key Features
- This slide switch features a 4PDT (four-pole double-throw) contact configuration for versatile circuit control.
- The switch operation is latching, providing a stable on/off position without returning to center.
- The design includes solder terminal types ideal for PCB mounting.
- Constructed with a durable nylon actuator, it operates within a temperature range of -40°C to 80°C.
- The compact dimensions (17.38mm length, 7.37mm width, 7.36mm depth) support space-constrained applications.
- Mechanical life rating is 15,000 cycles, ensuring long-lasting performance.
- This switch complies with RoHS and UL approvals, guaranteeing quality and safety standards.
- It is designed with a make-before-break switching configuration to prevent momentary connection interruptions.
Product Description
TE Connectivity ASE4204 is a precision-engineered PCB Slide Switch featuring a 4PDT contact configuration and latching operation mechanism. Designed for robust performance, this switch supports a contact current of 300mA at 115V AC and utilizes a nylon actuator for resilient handling under harsh environment conditions. The device is optimized for PCB mounting using solder terminals, making it suitable for industrial electronics, automation systems, instrumentation, and measurement equipment.
Its operational temperature range extends from -40°C to 80°C, which enhances its suitability in demanding thermal environments. The switch boasts a mechanical life of 15,000 cycles, ensuring reliable, long-term service. The ASE series features bifurcated double wipe contacts designed for telecom-grade switching applications.
With dimensions of 17.38mm in length, 7.37mm width, and 7.36mm depth, the compact footprint allows integration into tight PCB layouts. The make-before-break configuration prevents simultaneous connection of old and new contacts, reducing switch noise and improving circuit reliability.
This slide switch meets RoHS and UL standards, underlining its compliance with international safety and environmental guidelines. Typical applications include automation control panels, server electronics, test instrumentation, and measurement devices in industrial and laboratory settings.
This slide switch features a 4PDT contact configuration for multiple circuit control. Its latching operation provides stable switch positions for reliable use. Solder terminal connection enables secure PCB mounting. Temperature range of -40°C to 80°C allows deployment in harsh environments.
The nylon actuator material offers durability and stable tactile response. Mechanical life of 15,000 cycles ensures extended service life. RoHS and UL compliance guarantees safety and reliability standards. Make-before-break switching prevents momentary connection interruptions.
Explore more slide switch options and other quality electrical components on EnvMart to meet your industrial, automation, and electronic device needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The slide switch features a 4PDT (four-pole double-throw) contact configuration, allowing for versatile circuit control.
This model operates within a temperature range of -40°C to 80°C, making it suitable for harsh environments.
The mechanical life rating of this switch is 15,000 cycles, ensuring reliable long-term performance.
It utilizes solder terminals for PCB mounting, which provides a secure connection.
The switch supports a contact current of 300mA at a voltage of 115V AC.
The dimensions of this switch are 17.38mm in length, 7.37mm in width, and 7.36mm in depth.
This model features a latching operation, providing a stable on/off position without returning to center.
The switch complies with RoHS and UL standards, ensuring it meets safety and environmental guidelines.
The make-before-break configuration prevents momentary connection interruptions, enhancing circuit reliability.
Typical applications include automation control panels, server electronics, test instrumentation, and measurement devices.
The actuator is constructed from durable nylon, which provides a stable tactile response.
The electrical life rating of this switch is 10,000 operations, indicating its expected lifespan under electrical load.
