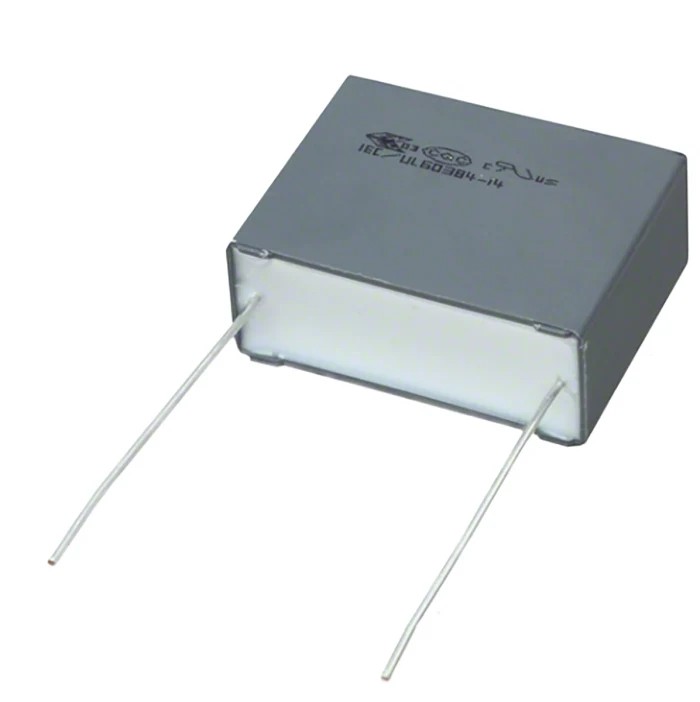

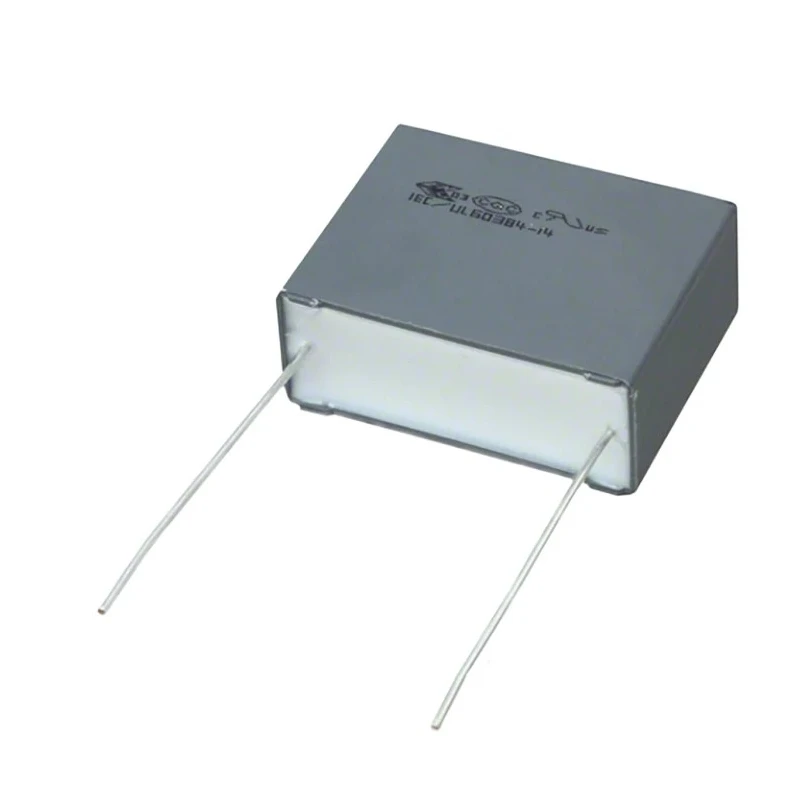

KEMET F863 Film Capacitor X2, ±10 % Tolerance, 330 nF, 310 V DC 310 V AC Radial Lead Through Hole F863BN334K310ALW0L
Specifications
| Country of Origin | China |
|---|---|
| Display | screen |
| Brand | KEMET |
| Height | 14.5mm |
| Length | 18mm |
| Model | F863BN334K310ALW0L |
| Approvals | ENEC, UL, cUL, CQC |
| Packaging | Bag |
| Width | 8.5mm |
| Mount Type | Through Hole |
| Series | F863 |
| Maximum Operating Temperature | 110°C |
| Tolerance | ±10 % |
| Capacitance | 330nF |
| Minimum Operating Temperature | -40°C |
| Terminal type | Radial |
| Dissipation Factor | 0.2% |
| Lead Length | 30mm |
| Standards/Approvals | CQC, ENEC, UL, cUL |
| Pin Count | 2 |
| Rated AC Voltage | 310V ac |
| Rated DC Voltage | 310V dc |
| Lead Pitch | 15mm |
| Lead Diameter | 0.6mm |
| Automotive Standard | AEC-Q200 |
| Suppression Class | X2 |
| Capacitance tolerance | ±20%, ±10% |
| Lead Spacing | 15.0 - 37.5 mm |
Key Features
- This capacitor features a radial lead Through Hole mount type.
- It is designed for EMI suppression and meets Automotive AEC-Q200 standards.
- The operating temperature ranges from −40°C to +110°C, suitable for harsh environments.
- The capacitor has a lead pitch of 15 mm and lead length of 30 mm for easy PCB installation.
- Constructed with metallized polypropylene film and self-extinguishing resin for safety and durability.
- Approvals include ENEC, UL, cUL, and CQC ensuring compliance with global standards.
Product Description
KEMET F863BN334K310ALW0L is a high-quality Film Capacitor designed for reliable EMI suppression in electronic circuits. It features a capacitance of 330 nF with a tight tolerance of ±10%, making it precise for sensitive applications. Rated for both 310 V DC and 310 V AC, it supports operation under demanding voltage conditions.
The capacitor utilizes a Through Hole radial lead mounting type with a lead pitch of 15 mm and lead length of 30 mm, simplifying assembly onto printed circuit boards. Its metallized polypropylene film construction encapsulated in self-extinguishing resin complies with UL 94 V-0 safety standards, providing excellent durability and flame resistance.
Meeting the Automotive Electronics Council's AEC-Q200 qualification, this capacitor is suitable for automotive and harsh industrial environments, offering an operating temperature range of -40°C to +110°C. It has been thoroughly tested at 1900 V DC to ensure performance reliability.
This capacitor is approved by CQC, ENEC, UL, and cUL, assuring compliance with stringent international quality and safety standards. The compact dimensions (18 mm length, 14.5 mm height, 8.5 mm width) and lead diameter of 0.6 mm further optimize it for space-constrained applications.
This capacitor features a radial lead Through Hole mount type. It is designed for EMI suppression and meets Automotive AEC-Q200 standards. The operating temperature ranges from −40°C to +110°C, suitable for harsh environments.
The capacitor has a lead pitch of 15 mm and lead length of 30 mm for easy PCB installation. Constructed with metallized polypropylene film and self-extinguishing resin for safety and durability. Approvals include ENEC, UL, cUL, and CQC ensuring compliance with global standards.
This product is ideal for industrial electronics, automotive electronics, power supply units, and EMI suppression applications. It balances precision, safety, and environmental robustness to provide reliable capacitor performance. Explore our Electronics Components category for similar capacitors and other electronic components to meet your design requirements.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The capacitor has a capacitance of 330 nF with a tolerance of ±10%.
It is rated for both 310 V DC and 310 V AC, making it suitable for various applications requiring these voltage levels.
The operating temperature range is from -40°C to +110°C, allowing it to function in harsh environments.
This model features a Through Hole radial lead mounting type, facilitating easy installation on printed circuit boards.
The capacitor has a length of 18 mm, a height of 14.5 mm, and a width of 8.5 mm.
The lead length is 30 mm, and the lead pitch is 15 mm, which helps in PCB assembly.
It is constructed with metallized polypropylene film and encapsulated in a self-extinguishing resin for safety and durability.
This capacitor is approved by ENEC, UL, cUL, and CQC, ensuring compliance with international safety and quality standards.
The dissipation factor is 0.2%, indicating low energy loss during operation.
Yes, it meets the Automotive Electronics Council's AEC-Q200 standard, making it suitable for automotive applications.
This capacitor has a pin count of 2, which is standard for radial lead capacitors.
The suppression class of this capacitor is X2, designed for EMI suppression applications.
