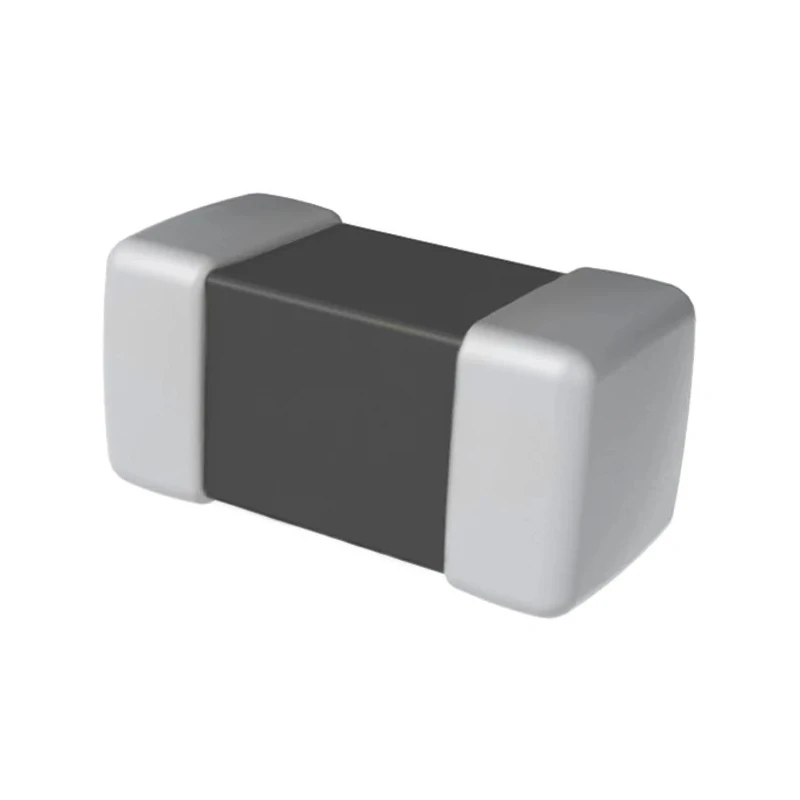

KEMET Ferrite Bead 0.031 mm Tape & Reel Chip Bead 22.8 Ω Impedance at 25 MHz 28 Ω at 100 MHz Z0603C280APWST

Name: KEMET Ferrite Bead 0.031 mm Tape & Reel Chip Bead 22.8 Ω Impedance at 25 MHz 28 Ω at 100 MHz Z0603C280APWST
Brand: KEMET
SKU: 171842
Price: 0.11 USD
Availability: InStock



Category Ferrite Bead Brand KEMET Condition New

Specifications

Country of Origin	Philippines
Brand	KEMET
Material	Ferrite
Height	0.031mm
Length	0.063mm
Model	Z0603C280APWST
Depth	0.031mm
Packaging	Tape & Reel
Current Rating	900mA
Series	Z-PWZ
Maximum Operating Temperature	125°C
Package Type	Tape & Reel
Sub Type	Chip Bead
Minimum Operating Temperature	40°C
Standards/Approvals	RoHS and REACH compliant
Maximum DC Resistance	0.45Ω
Impedance at 100 MHz	28Ω
Impedance at 25 MHz	22.8Ω
Impedance at 300 MHz	30.5Ω
Impedance at 50 MHz	25.8Ω
Impedance at 1 GHz	30.4Ω

Key Features

Designed for high impedance applications with 22.8 Ω at 25 MHz and 28 Ω at 100 MHz impedance.
Compact 0.031 mm chip bead size suitable for surface mounting on PCBs.
Operates reliably within a wide temperature range from -40°C to 125°C.
Capable of handling continuous current up to 900 mA for robust performance.
Low maximum DC resistance of 0.45 Ω minimizes signal loss.
Constructed from ferrite material ensuring effective high frequency noise suppression.
Compliant with RoHS and REACH standards for environmental safety.
Packaging is provided as Tape & Reel for efficient automated assembly.

Product Description

KEMET Z0603C280APWST ferrite bead tape & reel chip bead features a small 0.031 mm size designed to suppress unwanted electromagnetic interference (EMI) and high frequency noise in digital circuits.

This chip bead exhibits impedance values of 22.8 Ω at 25 MHz and 28 Ω at 100 MHz, providing effective noise filtering across a broad frequency range useful in power lines and signal integrity applications.

Manufactured from high-quality ferrite material, the bead has a low maximum DC resistance of 0.45 Ω, ensuring minimal voltage drops and power losses during operation. It supports a continuous current rating of 900 mA, enabling it to handle moderate power levels with high reliability.

The operating temperature range from -40°C to 125°C allows deployment in diverse environments including industrial, electronic manufacturing, consumer electronics, and telecommunications equipment.

The product is provided in Tape & Reel packaging, making it suitable for high-volume automated PCB assembly processes in electronics manufacturing. Designed for high impedance applications with 22.8 Ω at 25 MHz and 28 Ω at 100 MHz impedance.

Compact 0.031 mm chip bead size suitable for surface mounting on PCBs. Operates reliably within a wide temperature range from -40°C to 125°C. Capable of handling continuous current up to 900 mA for robust performance. Low maximum DC resistance of 0.45 Ω minimizes signal loss.

Constructed from ferrite material ensuring effective high frequency noise suppression. Compliant with RoHS and REACH standards for environmental safety. Packaging is provided as Tape & Reel for efficient automated assembly.

This Ferrite Bead is ideal for industrial electronics, telecommunications, computer hardware, and other applications requiring EMI mitigation and signal integrity preservation. Its compact size and reliable specifications ensure compatibility with advanced surface mount technology assembly lines.

Explore a wide range of KEMET electronic components and EMI filtering solutions at EnvMart for your industrial and manufacturing needs.

Looking to purchase in bulk?

Purchase item in bulk quantity
Get best price for your business

Comments (0)

No customer reviews for the moment.

Frequently Asked Questions

The impedance of this ferrite bead is 22.8 Ω at 25 MHz.

This model has a maximum continuous current rating of 900 mA.

It operates reliably within a temperature range of -40°C to 125°C.

The maximum DC resistance of this unit is 0.45 Ω, which helps minimize signal loss.

The impedance values are 22.8 Ω at 25 MHz, 28 Ω at 100 MHz, 25.8 Ω at 50 MHz, and 30.5 Ω at 300 MHz.

It is constructed from ferrite material, which is effective for high frequency noise suppression.

The product is provided in Tape & Reel packaging, suitable for automated assembly processes.

This model is compliant with RoHS and REACH standards for environmental safety.

The dimensions are 0.031 mm in height and depth, and 0.063 mm in length.

This unit is suitable for applications requiring EMI mitigation and signal integrity preservation, such as in industrial electronics and telecommunications.

It belongs to the Z-PWZ series of ferrite beads.

The impedance at 1 GHz is 30.4 Ω.
