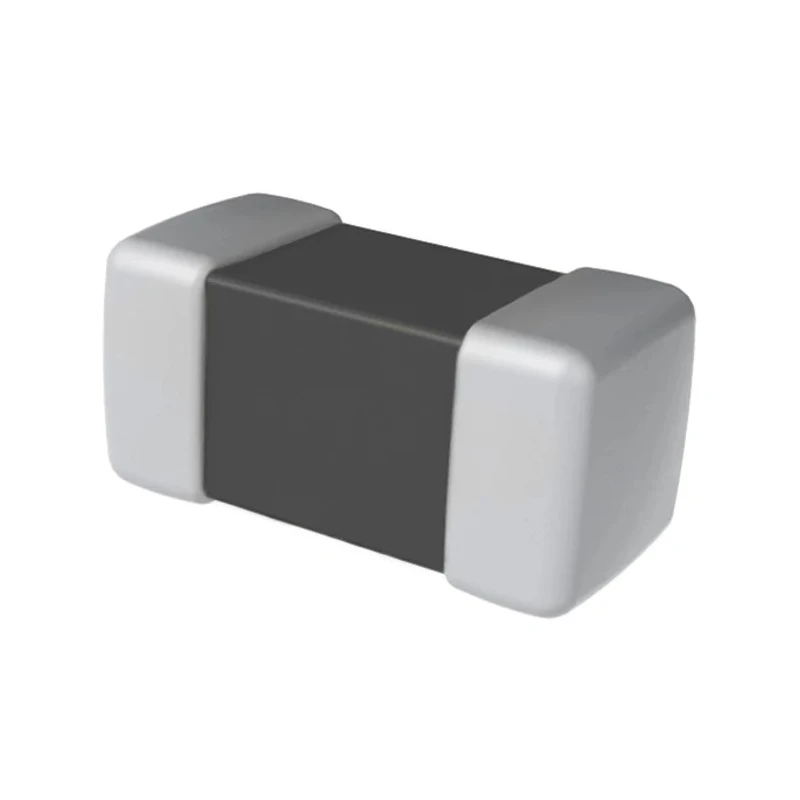

KEMET Ferrite Bead Chip Bead 0.033 mm Height, 78.5 Ω Impedance at 25 MHz, 220 Ω Impedance at 100 MHz, 6A Z0805C221BPWZT

KEMET Z0805C221BPWZT ferrite bead chip bead with 0.033 mm height is designed for noise suppression and waveform correction in electronic circuits. It offers high impedance values of 78.5 Ω at 25 MHz, 220 Ω at 100 MHz, and 344 Ω at 300 MHz, making it ideal for high frequency noise filtering applications. The bead supports a current rating of 6A, ensuring compatibility with high-current power lines.

This chip bead is made from ferrite material with a wire wound structure, which contributes to low stray capacitance and high impedance stability. Its compact size (0.033 mm height, 0.079 mm length, 0.049 mm depth) supports use in densely packed digital mobile and low power applications, effectively suppressing radiated noise.

The device also operates reliably over a wide temperature range from -40°C to 125°C, suitable for diverse industrial environments. The ferrite bead is RoHS and REACH compliant, guaranteeing adherence to environmental standards.

Its features include high reliability, low stray capacitance, and large withstand current, tailored for circuit designs needing large impedance and current handling. The bead belongs to the PWZ series and does not conform to automotive standards. Its maximum DC resistance is 0.45 Ω.

This ferrite bead offers 78.5 Ω impedance at 25 MHz frequency. It features 220 Ω impedance at 100 MHz and 344 Ω at 300 MHz. The product supports a current rating of 6A for high current applications. It is constructed from ferrite material with a wire wound structure for low stray capacitance.

Operating temperature ranges from -40°C up to 125°C, assuring reliability. Compact dimensions include height 0.033 mm, length 0.079 mm, and depth 0.049 mm. Provides high impedance and waveform correction in digital signal circuits.

Suitable for digital mobile equipment requiring low power consumption and noise suppression. RoHS and REACH compliant, ensuring environmental safety.

This KEMET ferrite bead is a specialized solution for industrial, electronic, and laboratory applications requiring EMI noise suppression. It is suitable for manufacturing electronic components and equipment designed for low power consumption and digital signal integrity. For more industrial electronic components and Ferrite Beads, browse EnvMart's extensive catalog.
