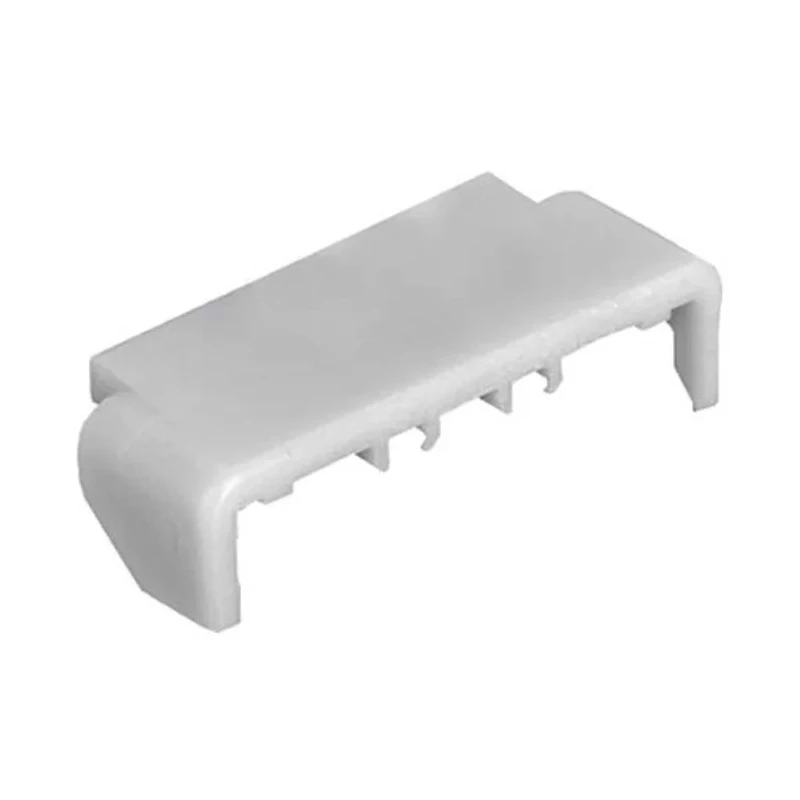

Molex Female Terminal Position Assurance for Micro-Fit TPA Receptacle Housing, 10A Current, Crimp Termination 172953-0601
Specifications
| Country of Origin | China |
|---|---|
| Brand | Molex |
| Current | 10A |
| Gender | Female |
| Contact Material | Phosphor Bronze Copper Alloy |
| Series | 172953 |
| Termination Type | Crimp |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -40°C |
| For Use With | Micro-Fit TPA Receptacle Housing Low Halogen 172952 |
| Contact Plating | Gold or Tin |
| Minimum Wire Size AWG | 30AWG |
| Maximum Wire Size AWG | 20AWG |
| Maximum Contact Resistance | 10mΩ |
Key Features
- Provides terminal position assurance to prevent terminal backouts.
- Compatible with Micro-Fit TPA Receptacle Housing Low Halogen 172952.
- Suitable for wire sizes ranging from 30 AWG minimum to 20 AWG maximum.
- Contact plating available in gold or tin for reliable electrical connection.
- Constructed using phosphor bronze copper alloy contact material for durability.
- Maximum contact resistance is 10 milliohms ensuring low electrical loss.
- Operates reliably between -40°C to 105°C for varied environments.
- Termination type is crimp for secure wire attachment.
Product Description
Molex 172953-0601 Female Terminal Position Assurance (TPA) is specifically engineered for use with Micro-Fit double row receptacle housings, providing a robust secondary lock mechanism to prevent terminal backouts due to improper assembly. Rated for a continuous current of 10 amperes, it supports wire sizes spanning from 30 AWG minimum to 20 AWG maximum, ensuring versatility in various electrical applications.
The terminal features contact plating options of gold or tin that enhance corrosion resistance and electrical conductivity, while the phosphor bronze copper alloy contact material offers excellent mechanical strength and reliability. This component ensures a maximum contact resistance of 10 milliohms, minimizing power loss and heat generation.
Designed to perform in demanding environments, the TPA withstands operating temperatures from -40°C up to 105°C, catering to industrial and electronic component assembly applications with low halogen requirements.
Termination is achieved via a crimp method, ensuring secure and reliable wire connection within the housing assembly. Manufactured in China, this terminal position assurance component meets the quality standards expected in high-reliability electrical and electronic systems.
Prevents terminal backouts with integrated secondary lock design. Compatible with Micro-Fit TPA Receptacle Housing Low Halogen 172952 series. Wire gauge compatibility from 30 AWG minimum to 20 AWG maximum. Gold or tin plating available for optimal conductivity and protection.
Constructed from phosphor bronze copper alloy for strength and durability. Low maximum contact resistance of 10 milliohms. Suitable for operating temperatures ranging -40°C to 105°C. Crimp termination type for secure wire attachment.
This product is ideal for use in electronics manufacturing, PCB connector assemblies, and power connector applications within industrial equipment, automotive electronics, and telecommunications devices. It ensures the integrity of electrical connections and enhances overall system reliability.
Discover more electronic components and Crimp Contacts in the Electronics & Electricals section at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum current rating for this terminal is 10 amperes.
This model supports wire sizes ranging from 30 AWG minimum to 20 AWG maximum.
It uses a crimp termination type for secure wire attachment.
The terminal is constructed from phosphor bronze copper alloy for strength and durability.
The maximum contact resistance is 10 milliohms, ensuring low electrical loss.
It operates reliably between -40°C to 105°C, suitable for varied environments.
Yes, it is compatible with the Micro-Fit TPA Receptacle Housing Low Halogen 172952.
The terminal features contact plating options of gold or tin for enhanced corrosion resistance and conductivity.
This terminal is manufactured in China.
It is suitable for use in electronics manufacturing, PCB connector assemblies, and power connector applications in various industries.
This terminal is female gendered.
This terminal belongs to the 172953 series.
