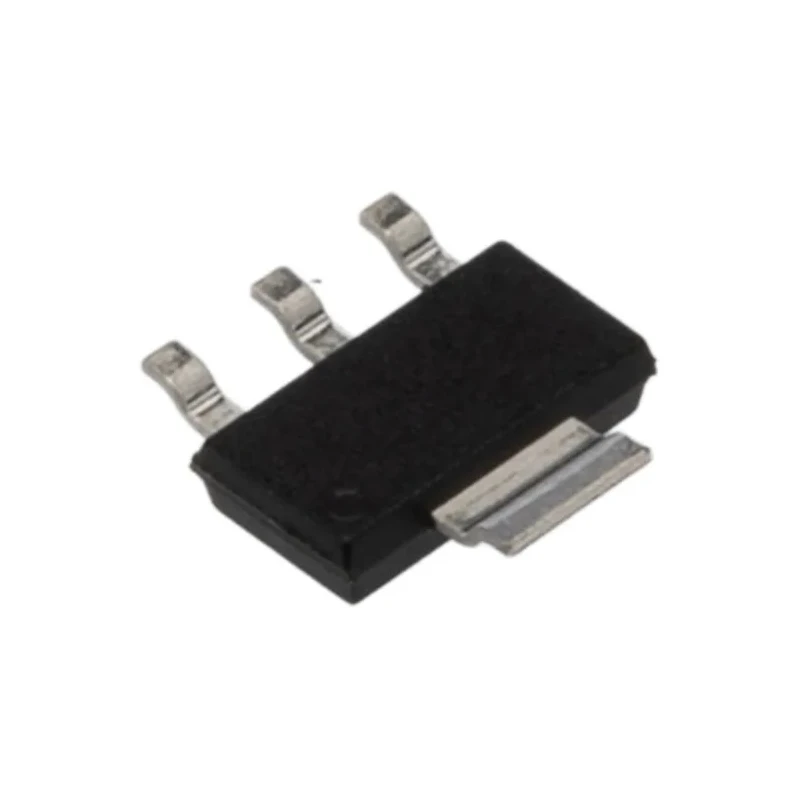

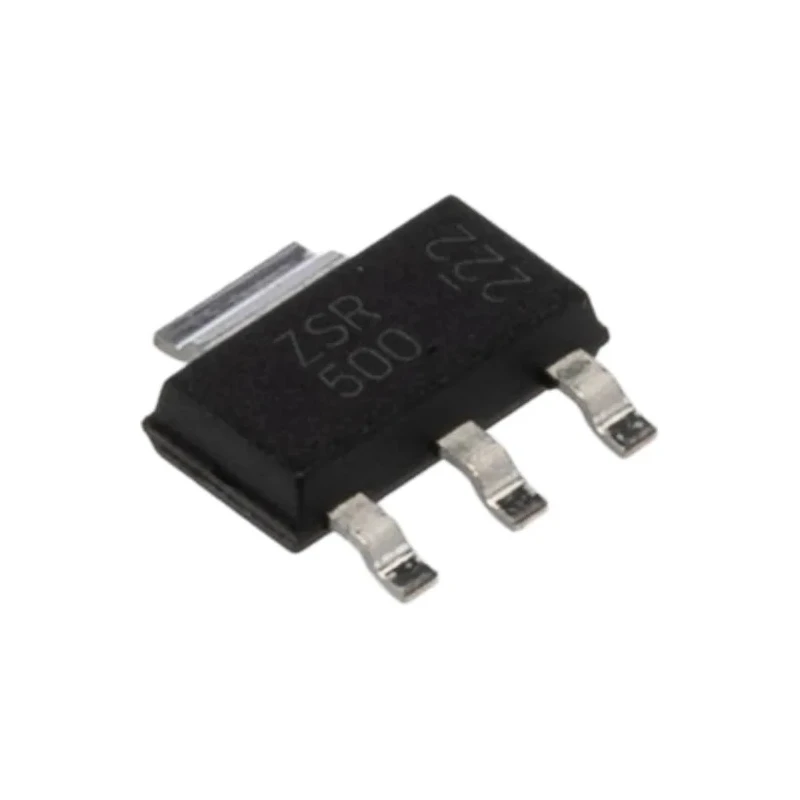

DiodesZetex Voltage Regulator 2W 20V Positive Polarity Surface Mount SOT-223 4-Pin ZSR500GTA

DiodesZetex ZSR500GTA is a high-performance linear voltage regulator designed for use in electronic production environments. It delivers fixed positive output voltages ranging from 3 V up to 10 V with a power rating of 2 watts and output current capability of 200 mA. Packaged in a compact SOT-223 surface mount format, it is ideal for space-sensitive applications.

The regulator features very low quiescent current of just 350 μA, minimizing power consumption in standby modes. Its robust design includes internal thermal shutdown and current limiting protections, increasing device durability and safety under fault conditions.

Operating input voltage ranges from 7 V to 20 V, allowing flexibility in various power supply configurations. With a maximum operating temperature of 125°C, the ZSR500GTA suits industrial and consumer electronics that demand stable and efficient voltage regulation.

Applications include power supplies for electronic circuits, onboard post regulation in embedded systems, and use in industrial automation and consumer devices. The regulator requires no external components to maintain stability, simplifying PCB design and assembly.

The device supports output currents up to 200 mA. Available fixed output voltages include 3 V, 3.3 V, 5 V, 8 V, and 10 V. Features very low quiescent current of 350 μA for efficient power management. Includes internal thermal shutdown and current limiting for device protection.

Operating input voltage ranges from 7 V to 20 V. Compact dimensions with length 6.55 mm, width 3.55 mm, and height 1.65 mm. Maximum operating temperature of 125°C ensures reliability in industrial environments. Designed for surface mount applications requiring positive voltage regulation.
