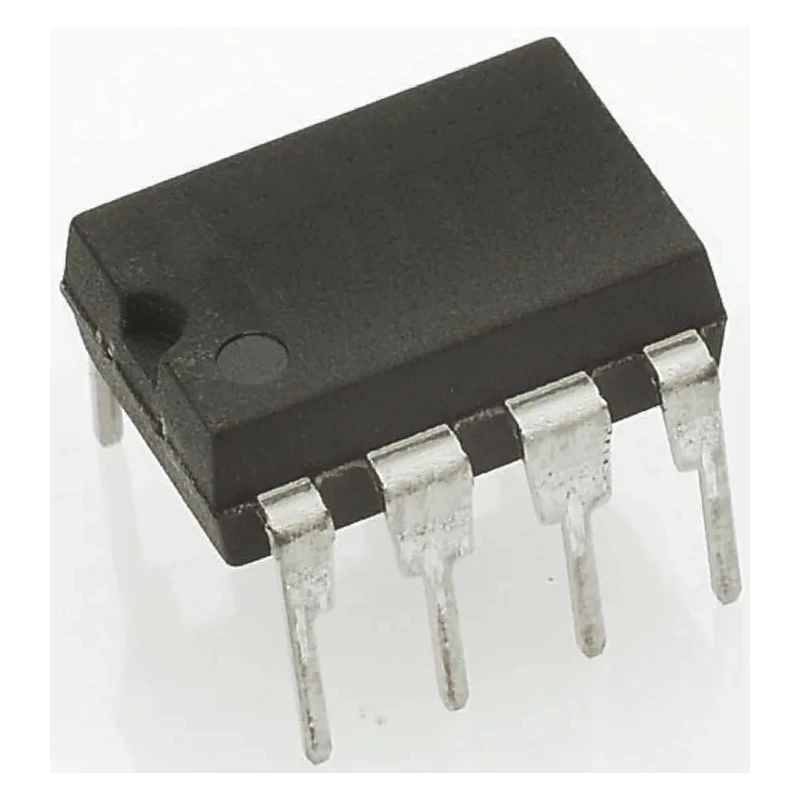

NVE Digital Isolator 110 Mbps, 2.5 kVrms Isolation Voltage, 5.5 V Supply, 8-Pin PDIP IL710-2E

Free Delivery in India | Lowest Global Shipping Charges

NVE Digital Isolator 110 Mbps, 2.5 kVrms Isolation Voltage, 5.5 V Supply, 8-Pin PDIP IL710-2E



Category Digital Isolator ICs Brand NVE Condition New

Specifications

Country of Origin	India
Brand	NVE
Length	10.2mm
Model	IL710-2E
Depth	6.6mm
Width	3.81mm
Mount Type	Through Hole
Series	IL
Maximum Operating Temperature	125°C
Package Type	PDIP
Minimum Operating Temperature	-40°C
Maximum input current	15μA
Number Of Channels	1
Rise Time	4ns
Supply Voltage	5.5V
Standards/Approvals	UL, IEC
Maximum Forward Voltage	7V
Number of Pins	8
Maximum Data Rate	110Mbps
Propagation Delay Time	18ns
Package Style	PDIP

Key Features

Supports a maximum data rate of 110 Mbps for fast digital signal isolation.
Features 2.5 kVrms isolation ensuring safe operation in high voltage environments.
Operates at a supply voltage of 5.5 V suitable for various electronic applications.
Compact 8-pin PDIP through-hole package ideal for easy PCB mounting.
Wide operating temperature range from -40°C to 125°C for industrial use.
Low propagation delay time of 18 ns to ensure signal integrity.
Complies with UL and IEC standards for quality and reliability.
Maximum forward voltage of 7 V and maximum input current of 15 μA for efficient performance.

Product Description

NVE IL710-2E Digital Isolator is a specialized component designed to provide reliable digital signal isolation with a maximum data rate of 110 Mbps and an isolation voltage of 2.5 kVrms. Packaged in an 8-pin PDIP form factor, it offers through-hole mounting for streamlined integration into electronic circuits. This digital isolator operates at a supply voltage of 5.5 V and is capable of functioning efficiently in harsh industrial, laboratory, and manufacturing environments due to its wide operating temperature range from -40°C to 125°C.

The device features a low propagation delay time of 18 ns and a rise time of 4 ns, contributing to rapid and precise signal transmission while maintaining strong electrical isolation. Its maximum forward voltage is rated at 7 V and it has a very low maximum input current of 15 μA, ensuring minimal power consumption in sensitive electronic applications.

Measuring approximately 10.2 mm in length, 6.6 mm in depth, and 3.81 mm in width, the NVE IL710-2E is compact yet robust, complying with UL and IEC standards for safety and performance. This digital isolator series is widely used in electronics components including power supplies, signal monitoring, and control systems in industrial automation, electronics manufacturing, and embedded system design.

Supports a maximum data rate of 110 Mbps for fast digital signal isolation. Provides an isolation voltage of 2.5 kVrms for electrical safety and noise reduction. Operates on a 5.5 V supply voltage compatible with standard electronic circuits.

Comes in an 8-pin PDIP package suitable for through hole mounting. Wide operating temperature range from -40°C to 125°C ensures reliability in various environments. Low propagation delay and rise time guarantee high-speed data transmission.

Complies with UL and IEC standards ensuring certified safety and performance. Compact dimensions allow for easy integration into electronic boards. Low input current reduces overall power consumption in electronic applications.

This product is an excellent choice for engineers and technicians requiring high-performance digital isolation solutions for electronic circuits in industrial, laboratory, automotive, and commercial systems. Browse more products from the Digital Isolator ICs category on EnvMart to find compatible components and accessories from NVE and other leading brands.

Looking to purchase in bulk?

Purchase item in bulk quantity
Get best price for your business

Comments (0)

No customer reviews for the moment.

Frequently Asked Questions

The NVE IL710-2E supports a maximum data rate of 110 Mbps for fast digital signal isolation.

It provides an isolation voltage of 2.5 kVrms, ensuring electrical safety and noise reduction.

This model operates at a supply voltage of 5.5 V, making it compatible with standard electronic circuits.

The dimensions are approximately 10.2 mm in length, 6.6 mm in depth, and 3.81 mm in width.

It has a wide operating temperature range from -40°C to 125°C, suitable for various industrial applications.

The propagation delay time is 18 ns, which helps ensure signal integrity during transmission.

The rise time for this digital isolator is 4 ns, contributing to rapid signal transmission.

This model features 1 channel for digital signal isolation.

It uses a through-hole mounting style, packaged in an 8-pin PDIP format for easy PCB integration.

The maximum input current is rated at 15 μA, which helps to minimize power consumption.

It complies with UL and IEC standards, ensuring certified safety and performance.

This digital isolator is widely used in power supplies, signal monitoring, and control systems in industrial automation and electronics manufacturing.
