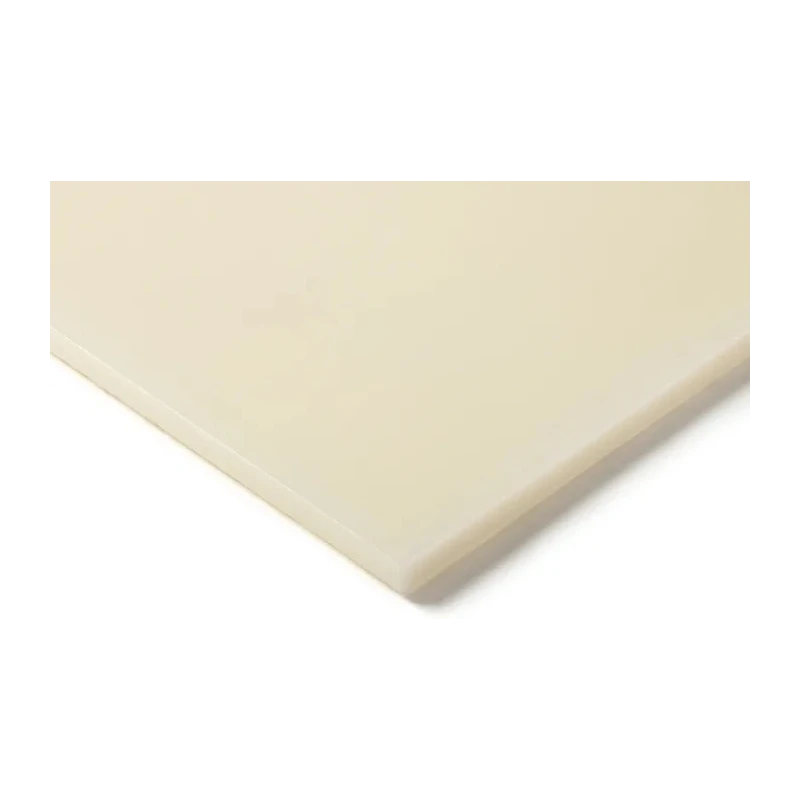

RS PRO Natural Polyamide Plastic Sheet 1m x 500mm x 25mm PA 66 Engineering Plastic 704-8166

RS PRO 704-8166 Natural Polyamide Plastic Sheet is a premium quality PA 66 solid plastic sheet measuring 1 meter in length, 500 mm in width, and 25 mm in thickness. Crafted from Polyamide 66, this engineering plastic features excellent hardness, rigidity, and thermal dimensional stability, essential for maintaining component precision under temperature and humidity variations.

Polyamide 66’s low friction and outstanding wear resistance make this plastic sheet ideal for high-performance industrial applications requiring smooth sliding and minimal locking, such as fine instruments, gear wheels, and bearings. The product exhibits a tensile strength of 80 MPa and hardness rated R 118 Rockwell, providing robustness against mechanical stresses.

The sheet also offers remarkable chemical resistance to many oils, greases, and fuels, along with good abrasion and impact resistance, ensuring durability in harsh industrial environments. Thermal conductivity of 0.17 W/mK and a maximum operating temperature of 100°C allow use in temperature-critical applications. With a water absorption rate of 8.5%, dimensional stability is preserved in moist conditions.

Designed to meet DIN 50014 standards and certified with UL HB flammability rating, this RS PRO nylon sheet delivers dependable safety and compliance. It is electrically insulating and can be effectively welded or bonded for custom fabrications. Common industrial uses encompass manufacturing of gear wheels, cam discs, friction strips, bushes, piston guides, castors, and conveyor screws among others.

Manufactured in Germany, the product ensures premium construction quality and consistency suitable for electronic, automotive, aerospace, agricultural, packaging, and textile applications. This plastic sheet is an essential material for engineers and fabricators requiring superior mechanical properties and adaptability.

The sheet provides excellent rigidity and thermal dimensional stability. It features a hardness of R 118 Rockwell and tensile strength of 80 MPa. The product offers good abrasion, impact resistance, and chemical resistance.

Maximum operating temperature is 100°C, suitable for demanding industrial applications. This plastic sheet is electrically insulating and features low water absorption of 8.5%. Thermal conductivity is 0.17 W/mK, making it suitable for thermal management.

It meets DIN 50014 standards and has a UL HB flammability rating. The sheet is weldable and bondable, enabling versatile fabrication options. Typical applications include gear wheels, cam discs, bearings, and conveyor screws.

Manufactured in Germany, ensuring high quality and consistency.

This RS PRO natural polyamide plastic sheet is a reliable choice for industrial, manufacturing, laboratory, automotive, and aerospace sectors seeking durable and high-performance engineering plastics. Browse the Plastic Sheets category at EnvMart for more premium material options.
