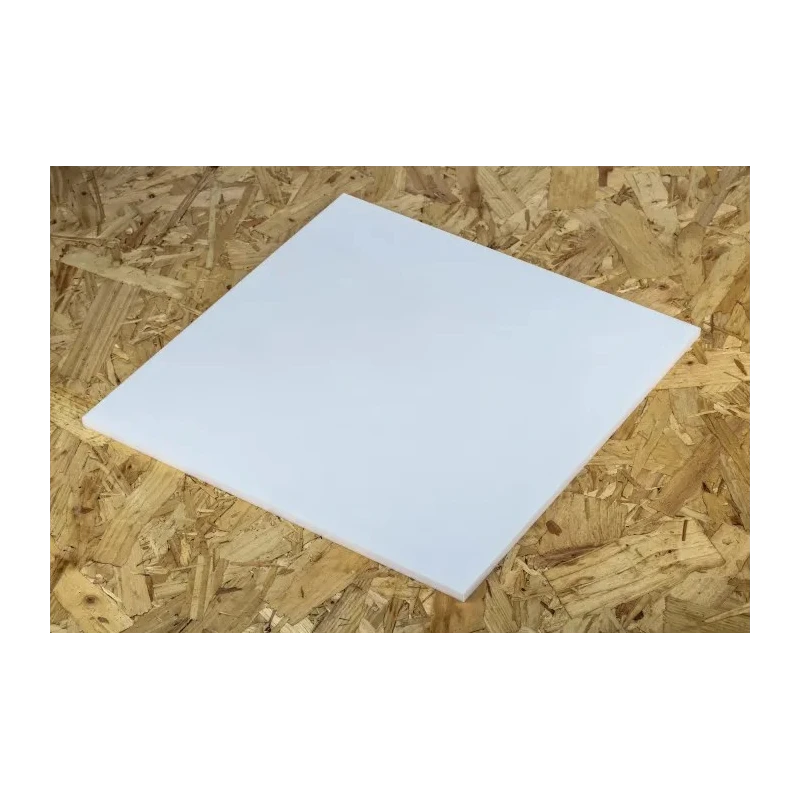

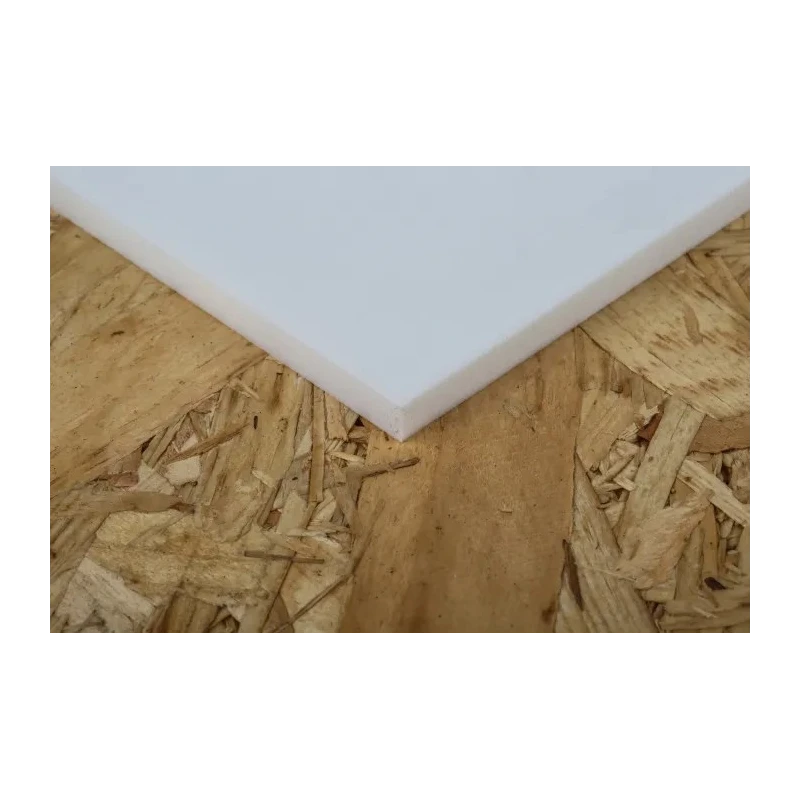

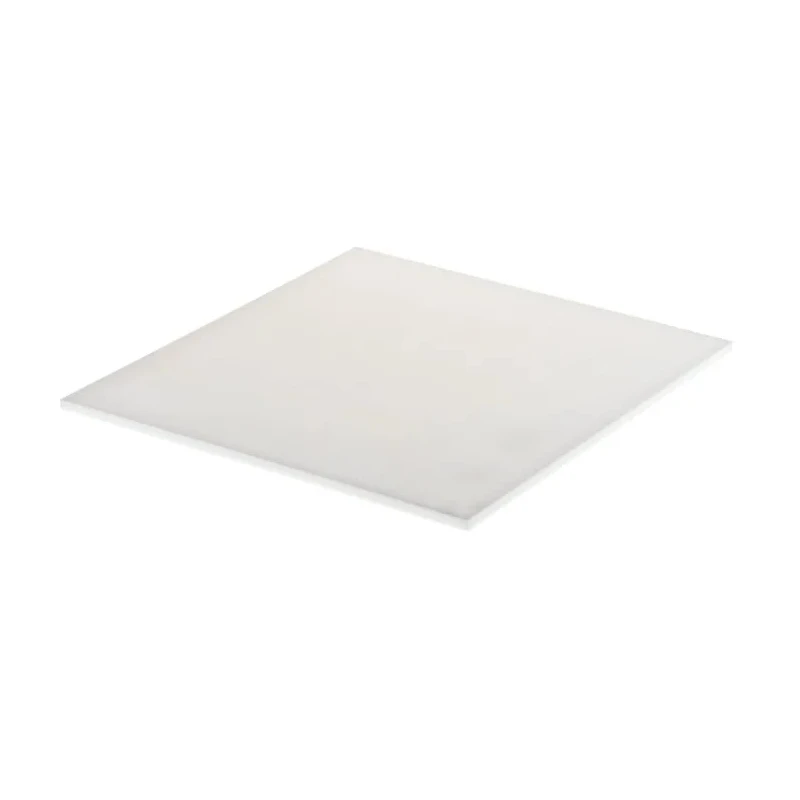

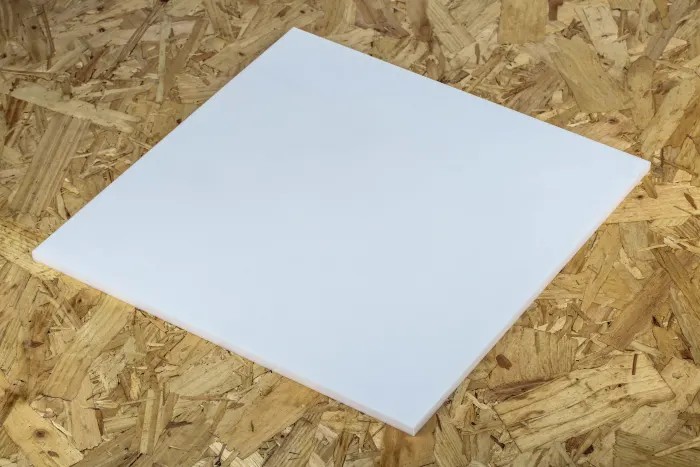

RS PRO White Polytetrafluoroethylene Plastic Sheet 300 mm x 300 mm x 6 mm 197-0051

RS PRO 197-0051 Polytetrafluoroethylene (PTFE) Plastic Sheet measures 300 mm by 300 mm with a 6 mm thickness. It is a white, semi-crystalline thermoplastic known for its exceptional chemical resistance, low friction, and high thermal stability, suitable for demanding industrial and engineering applications.

Manufactured from polytetrafluoroethylene, this sheet has a density of 2.21 g/cm³ and tensile strength of 25 MPa, providing a balance of mechanical robustness and flexibility. It is designed for high-temperature environments with an operating limit up to 260°C and short-term heat resistance of up to 300°C.

The material possesses a rockwell hardness rating of R 118 and complies with strict industry standards such as DIN 53479, ASTM-D 1929, and DIN 53736. Its UL 94 V-0 flame retardancy rating ensures it self-extinguishes and is safe to use in various conditions.

PTFE's excellent sliding capability and low coefficient of friction reduce wear and heat generation, making it especially suitable for components like bearings, pump parts, and sliding elements subject to high chemical or mechanical stress.

This plastic sheet features a non-stick surface feature that prevents adhesion of other materials, simplifying cleaning and lowering maintenance costs. Its electrical insulation characteristics make it suitable for electrical engineering and aerospace applications where reliability and safety are paramount.

Applications include transportation and conveying systems, pump and instrument construction, medical and food processing industries, aerospace and laser technology sectors. The impact strength rated at 12 kJ/m² enhances its suitability for dynamic industrial environments.

Constructed from high-performance Polytetrafluoroethylene offering excellent chemical resistance. Features a white color with a density of 2.21 g/cm³ for structural stability. Rated for high temperature use up to 260°C and excellent sliding properties with low friction.

Certified flame retardant with UL 94 V-0 classification ensuring safety in applications. Impact strength rated at 12 kJ/m² for enhanced durability under mechanical stress. Complies with DIN 53479, ASTM-D 1929, and DIN 53736 standards for quality assurance.

Non-stick surface with virtually no material adhesion, reducing maintenance and wear. Excellent electrical insulation properties with low dielectric constant suitable for various industrial uses. Ideal for use in applications like pump construction, electrical engineering, aerospace, and laser technology.

RS PRO offers a trusted range of engineering materials and industrial hardware designed for demanding professional uses. Explore more Plastic Sheets and other materials suitable for your industrial projects at EnvMart.
