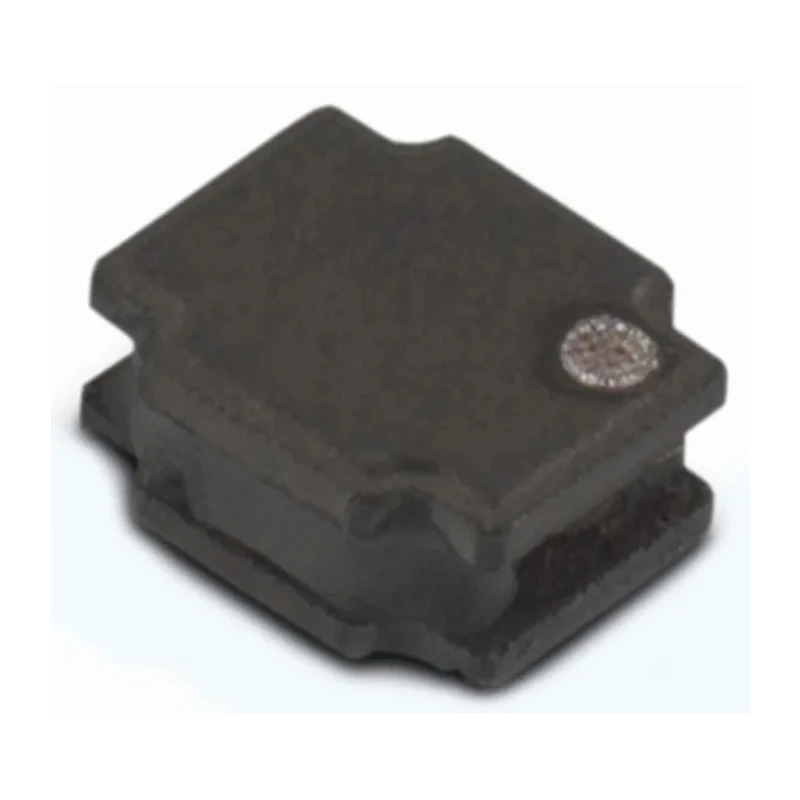

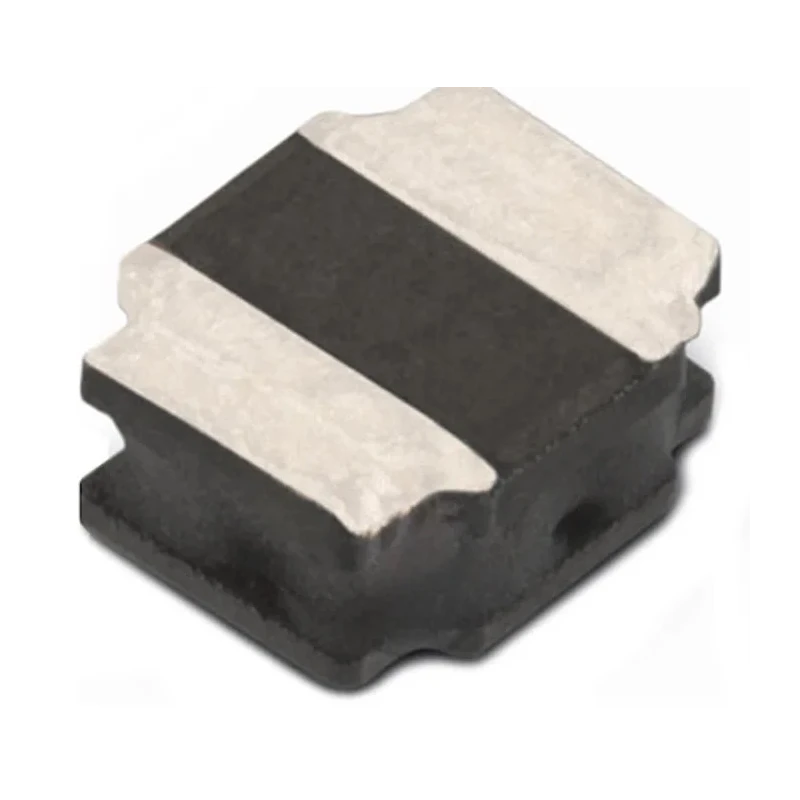

Wurth Elektronik Wirewound Surface Mount Inductor 10μH ±20 % 800mA Shielded Ferrite Core 2512 74405024100

Wurth Elektronik 74405024100 wirewound surface mount inductor in 2512 package with a shielded ferrite core offers a 10μH inductance with ±20% tolerance and maximum DC current rating of 800mA. This compact, high saturation power inductor features soft saturation behaviour enabled by a magnetic adhesive epoxy which minimizes electromagnetic interference, making it suitable for demanding electronic applications.

Its construction includes a ferrite core that supports high current saturation and provides magnetic shielding, reducing stray fields and noise typically associated with power inductors. The device is moulded, enhancing durability and mechanical stability in surface mount technology (SMT) circuits. Operating across a temperature range from -40°C to +125°C, it ensures reliable performance in industrial, commercial, and portable electronic environments.

The maximum DC resistance of 522mΩ optimizes power efficiency, and the inductor supports frequencies up to 20MHz maximum self-resonant frequency, aligning with high-frequency switching regulator applications. The Wurth WE-LQSH series is engineered for integrated DC-DC converters with high ripple currents, switching controllers requiring high efficiency, and applications in smartphones, tablets, embedded laptops, and digital cameras.

The product complies with REACH, RoHS, IEC 61249-2-21, and JEDEC JS709B standards, ensuring environmental safety and industry compatibility. Delivered in tape and reel packaging, the inductor is suitable for automated PCB assembly processes. Manufactured in China, the item maintains consistent quality and performance as expected from Wurth Elektronik.

The 2512 case dimensions are 2.5mm length, 2mm depth, and 1.2mm height, with termination style surface mount compatible with standard SMT equipment. The core ferrite material and wirewound construction offer semi-shielded high saturation power performance, ideal for embedded electronics requiring compact, efficient inductors.

Compact 2512 surface mount package for high density PCB layouts. Shielded wirewound construction reduces electromagnetic interference. Ferrite core enhances magnetic performance and saturation current. Wide temperature operation range from -40°C to 125°C.

Inductance value of 10μH with ±20% tolerance for precision. Supports a max DC current of 800mA with optimized self-resonant frequency of 20MHz. Meets RoHS, REACH, IEC and JEDEC standards for compliance. Moulded design ensures mechanical robustness in SMT assembly.

Delivered in tape and reel packaging for industrial assembly automation.

Choose this Wurth Elektronik WE-LQSH 74405024100 inductor for high efficiency, reliable filtering and power management in electronic circuits. Explore related Surface Mount Inductors and Wurth Elektronik products on EnvMart for comprehensive electronic component sourcing.
