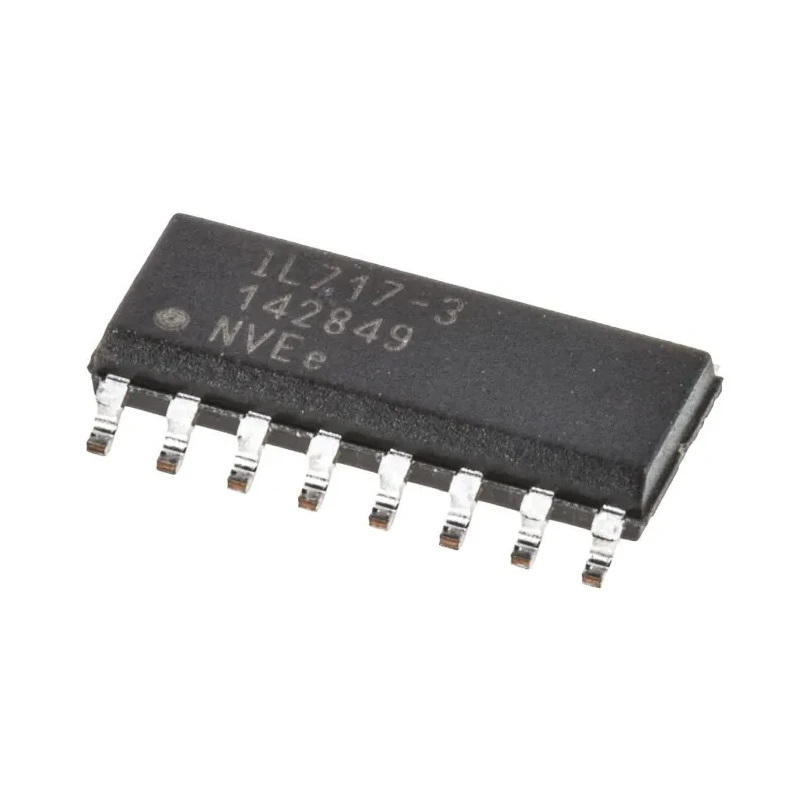

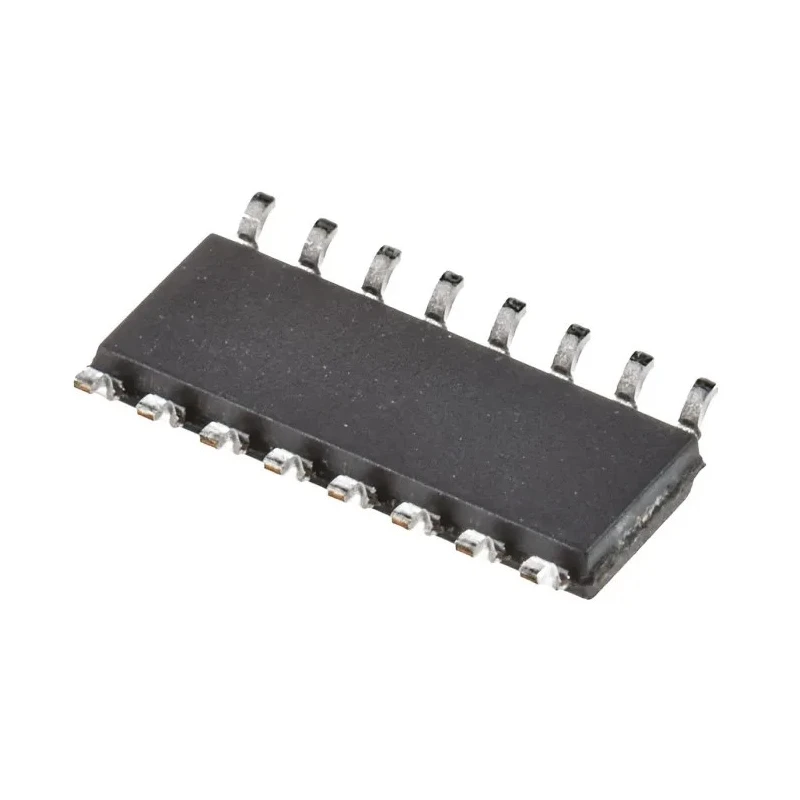

NVE 4-Channel Digital Isolator 110 Mbps, 2.5 kVrms Isolation, 5.5V Supply, 8-Pin SOIC IL717-3E

Free Delivery in India | Lowest Global Shipping Charges

NVE 4-Channel Digital Isolator 110 Mbps, 2.5 kVrms Isolation, 5.5V Supply, 8-Pin SOIC IL717-3E



Category Digital Isolator ICs Brand NVE Condition New

Specifications

Country of Origin	United States
Brand	NVE
Length	10mm
Model	IL717-3E
Depth	6.2mm
Width	1.8mm
Mount Type	Surface
Series	IL
Maximum Operating Temperature	125°C
Package Type	SOIC
Minimum Operating Temperature	-40°C
Maximum input current	3mA
Number Of Channels	4
Rise Time	4ns
Supply Voltage	5.5V
Standards/Approvals	IEC, UL
Maximum Forward Voltage	7V
Number of Pins	8
Maximum Data Rate	110Mbps
Propagation Delay Time	18ns
Package Style	SOIC

Key Features

Supports a maximum data rate of 110 Mbps for efficient digital signal transmission.
Features four individual isolation channels for versatile use in multi-channel applications.
Powered by a 5.5V supply voltage ensuring reliable and stable operation.
Operates within a wide temperature range from -40°C to 125°C suitable for harsh environments.
Compact surface mount SOIC package with 8 pins enabling easy PCB integration.
Low propagation delay time of 18 nanoseconds enhances signal timing accuracy.
Maximum forward voltage rating of 7V ensures durability under voltage stress.
Isolation voltage up to 2.5 kVrms protects sensitive circuits from high voltage spikes.

Product Description

NVE IL717-3E is a high-speed, high-temperature 4-Channel Digital Isolator designed for precise digital signal isolation and transmission. This device supports data rates up to 110 Mbps, making it suitable for modern electronics applications requiring fast and reliable signal isolation.

Featuring four independent channels, the isolator simplifies the design of multi-channel isolation systems. The device is housed in a compact 8-pin SOIC package, facilitating easy integration on printed circuit boards in various industrial and commercial applications.

Operating from a 5.5V supply, the IL717-3E can function effectively within a temperature range of -40°C to 125°C, making it well-suited for harsh industrial, automotive, and aerospace environments where temperature extremes are common.

The isolator provides an isolation voltage of 2.5 kVrms to protect sensitive electronics from high-voltage surges and noise, ensuring system integrity and reducing risk of damage. With a fast propagation delay time of 18 nanoseconds and a low forward voltage of 7V, it delivers excellent electrical performance.

Supports a maximum data rate of 110 Mbps for high-speed digital communication. Four isolated channels offer design flexibility in signal isolation. Surface mount package type (SOIC) for reliable and compact application. Wide operating temperature range from -40°C to 125°C for harsh environments.

Isolation voltage rating of 2.5 kVrms ensures strong protection against voltage spikes. Compliant with IEC and UL standards providing safety and quality assurance.

This digital isolator is ideal for use in industrial controls, medical equipment, automotive electronics, aerospace systems, and other fields where electrical isolation is critical. The device’s robust specifications ensure reliable performance in demanding applications.

Choose the NVE IL717-3E 4-Channel Digital Isolator for high-speed, reliable signal isolation with excellent environmental tolerance and electrical specifications. Browse our extensive range of electronic components at EnvMart for all your advanced circuit design needs.

Explore more products in our Digital Isolator ICs category.

Looking to purchase in bulk?

Purchase item in bulk quantity
Get best price for your business

Comments (0)

No customer reviews for the moment.

Frequently Asked Questions

This model supports a maximum data rate of 110 Mbps, allowing for efficient digital signal transmission.

It operates with a supply voltage of 5.5V, ensuring reliable and stable operation.

The IL717-3E provides an isolation voltage of up to 2.5 kVrms, protecting sensitive circuits from high voltage spikes.

This device has a length of 10mm, a depth of 6.2mm, and a width of 1.8mm, housed in an 8-pin SOIC package.

The propagation delay time is 18 nanoseconds, which enhances signal timing accuracy.

This digital isolator is compliant with IEC and UL standards, ensuring safety and quality assurance.

The rise time for this model is 4 nanoseconds, contributing to its high-speed performance.

The maximum forward voltage rating is 7V, ensuring durability under voltage stress.

It features a surface mount type, specifically in an SOIC package, which facilitates easy integration on PCBs.

This digital isolator is suitable for industrial controls, medical equipment, automotive electronics, and aerospace systems where electrical isolation is critical.
