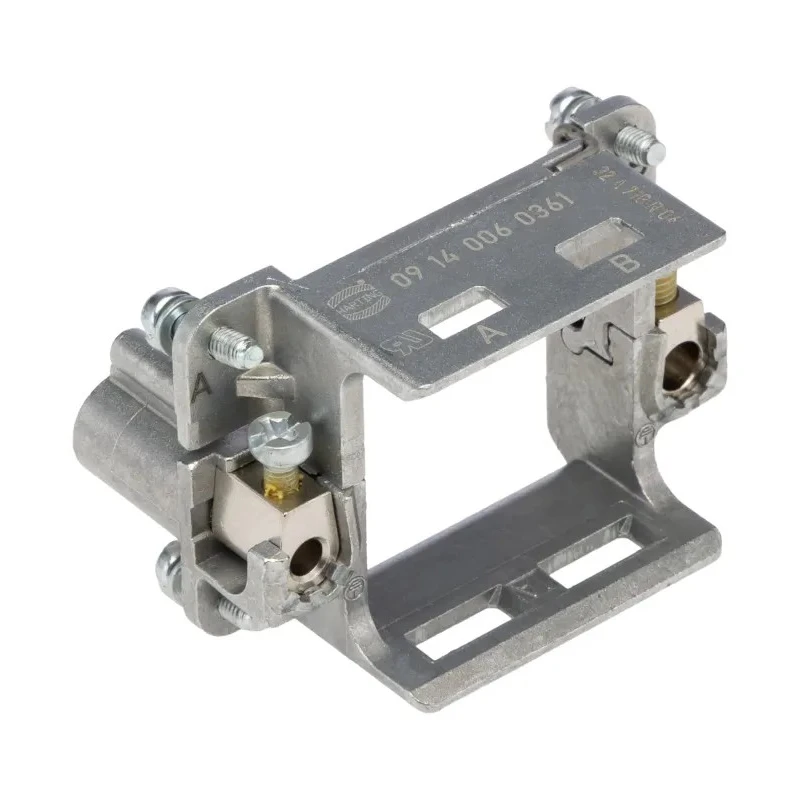

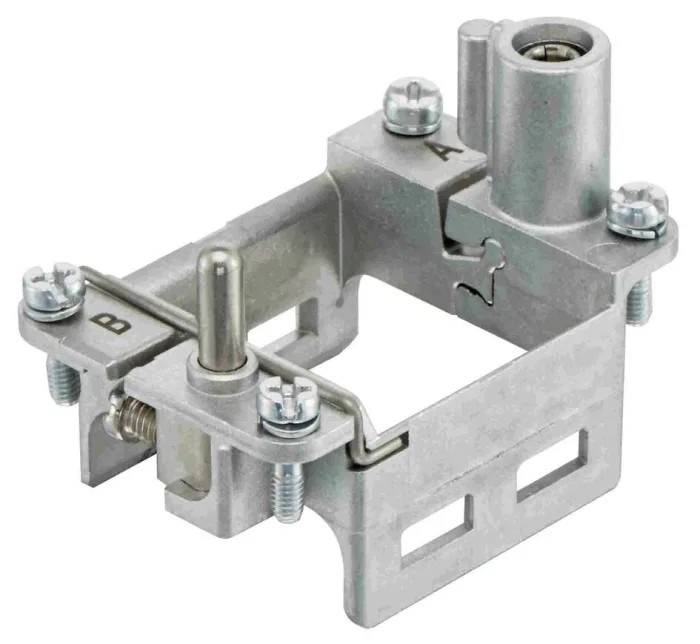

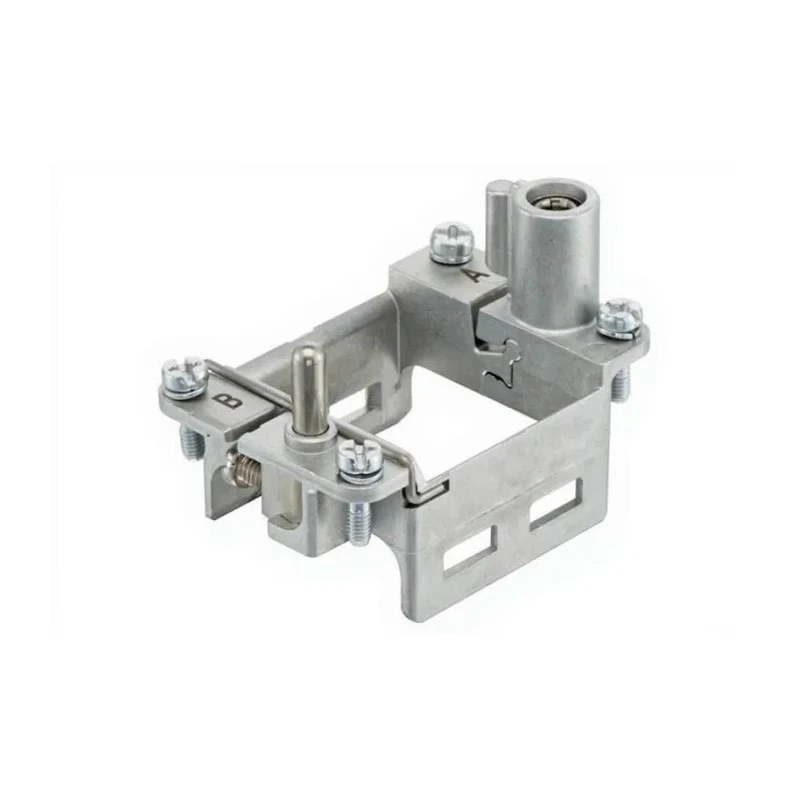

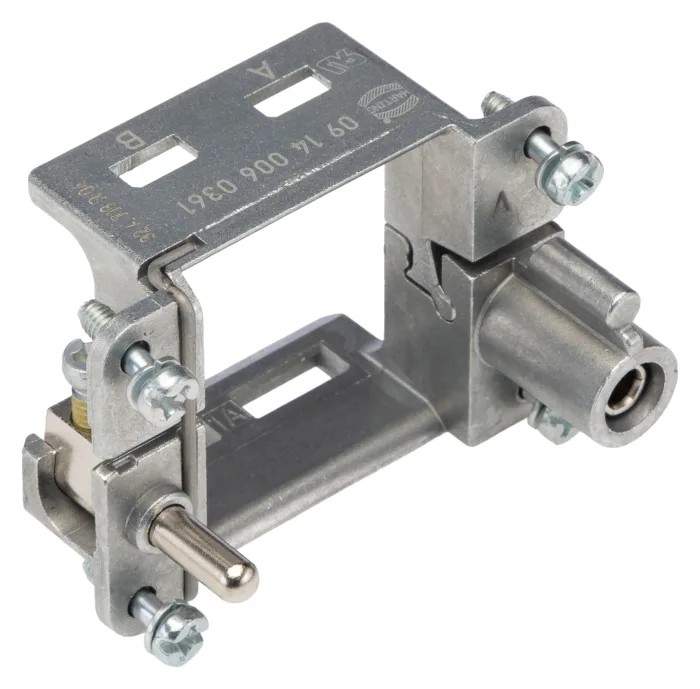

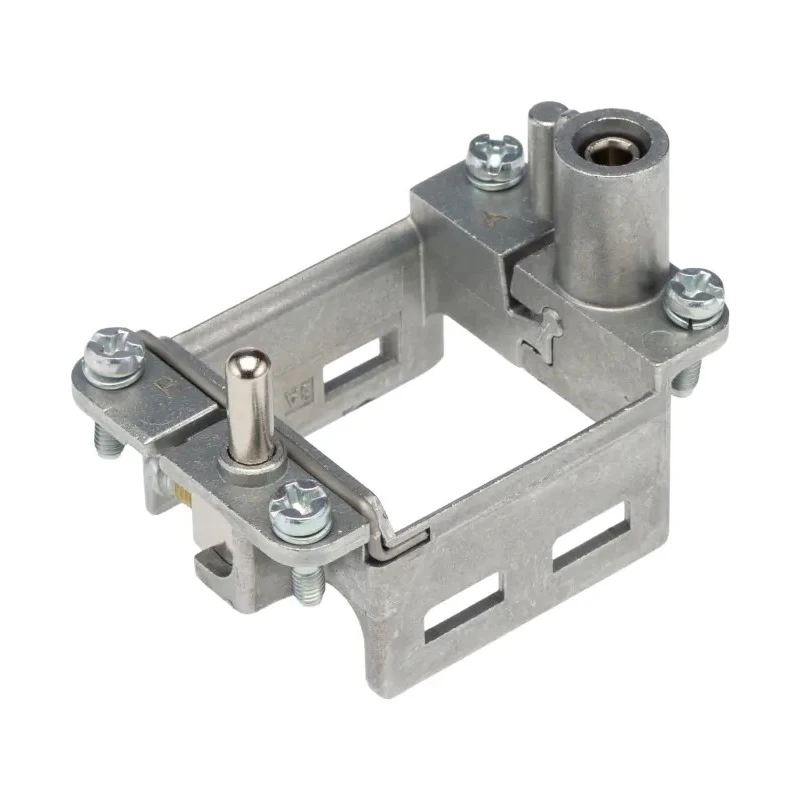

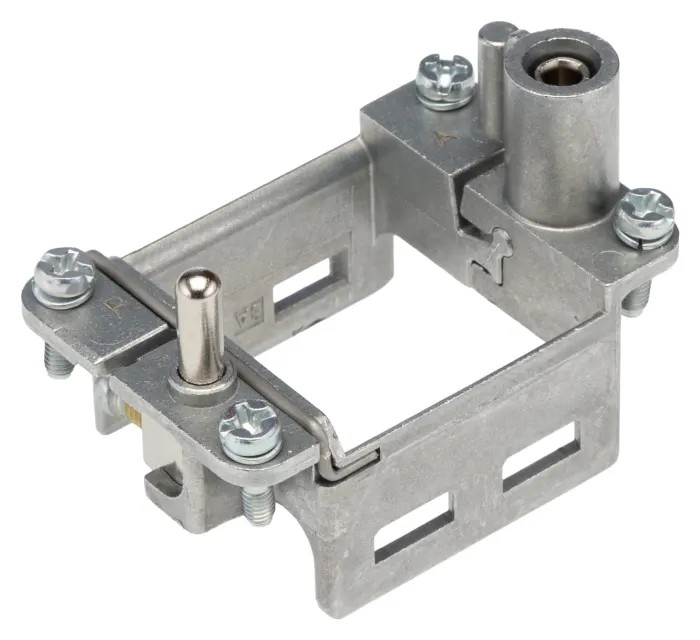

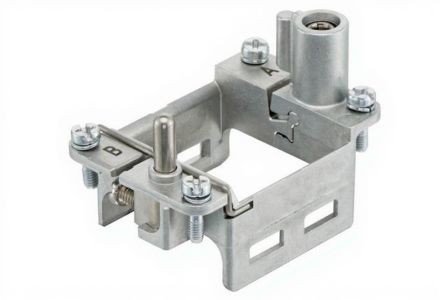

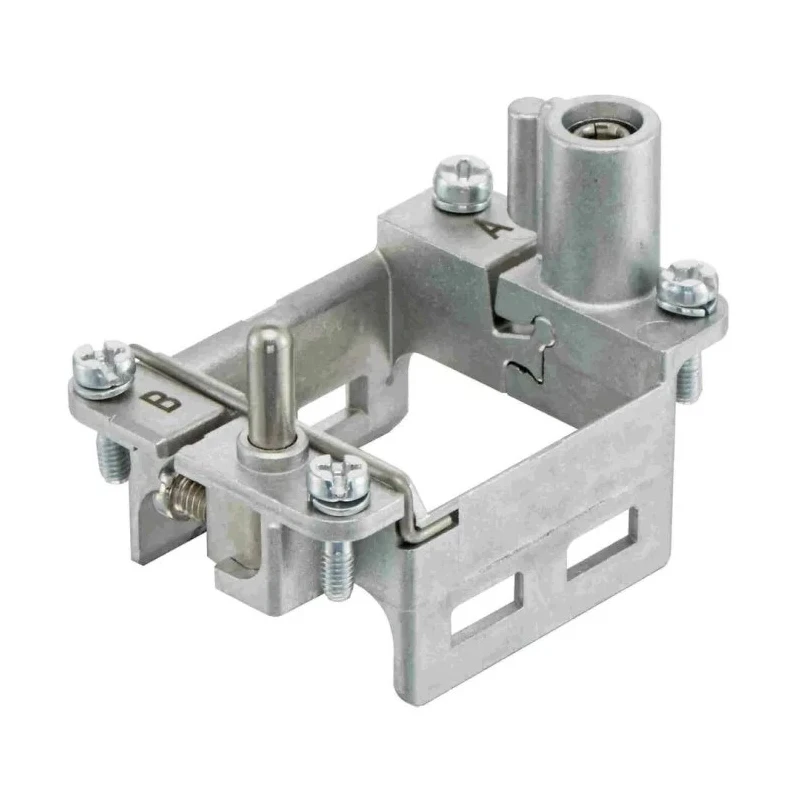

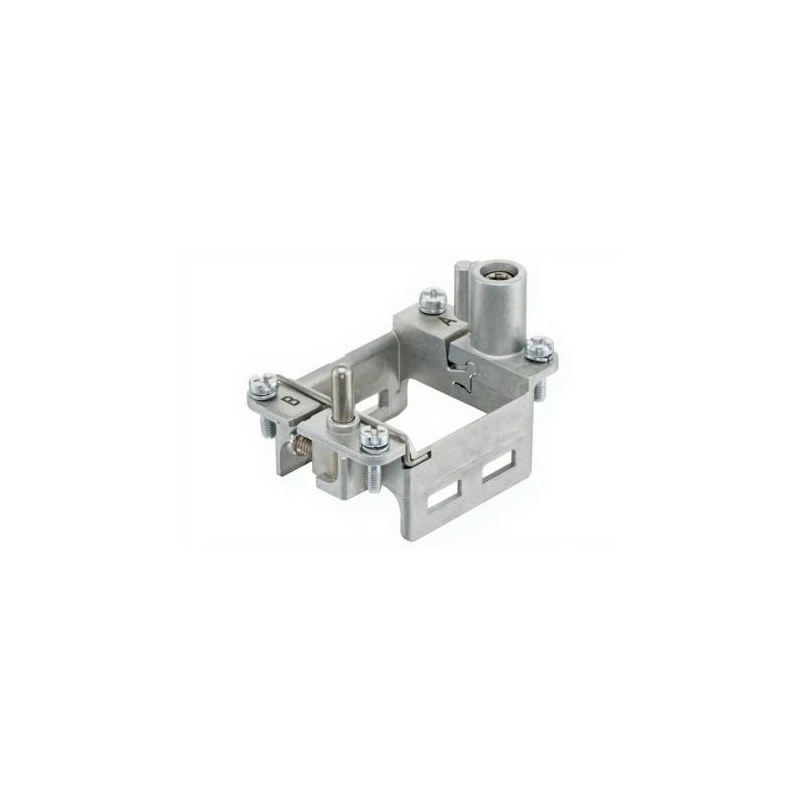

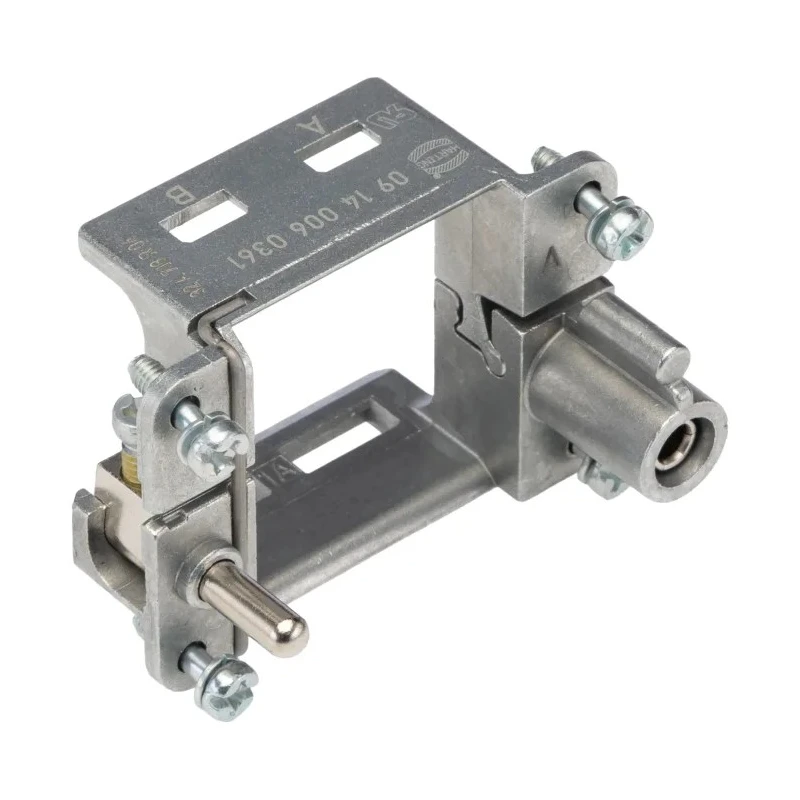

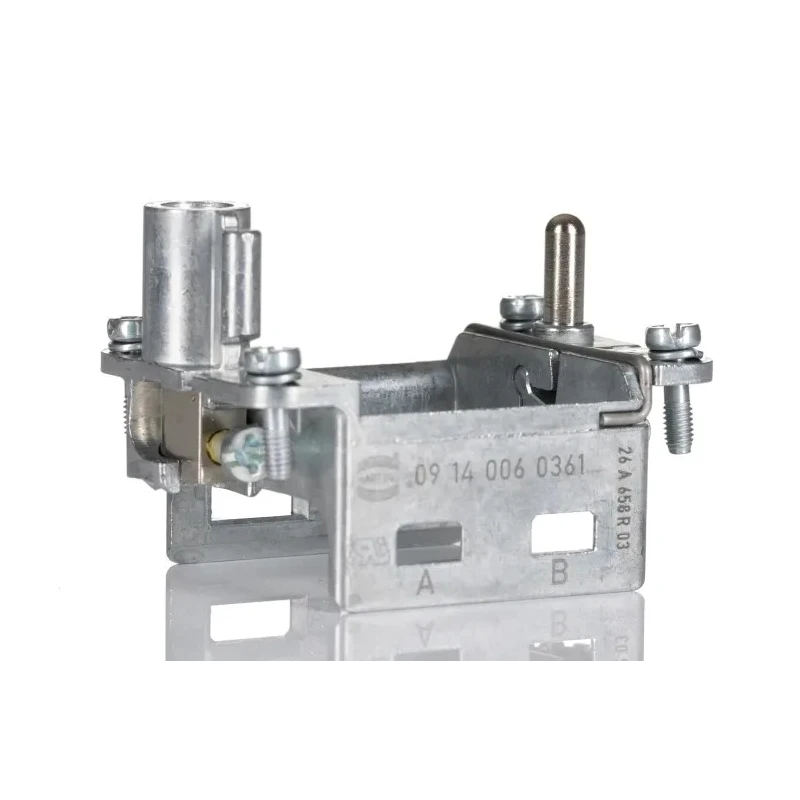

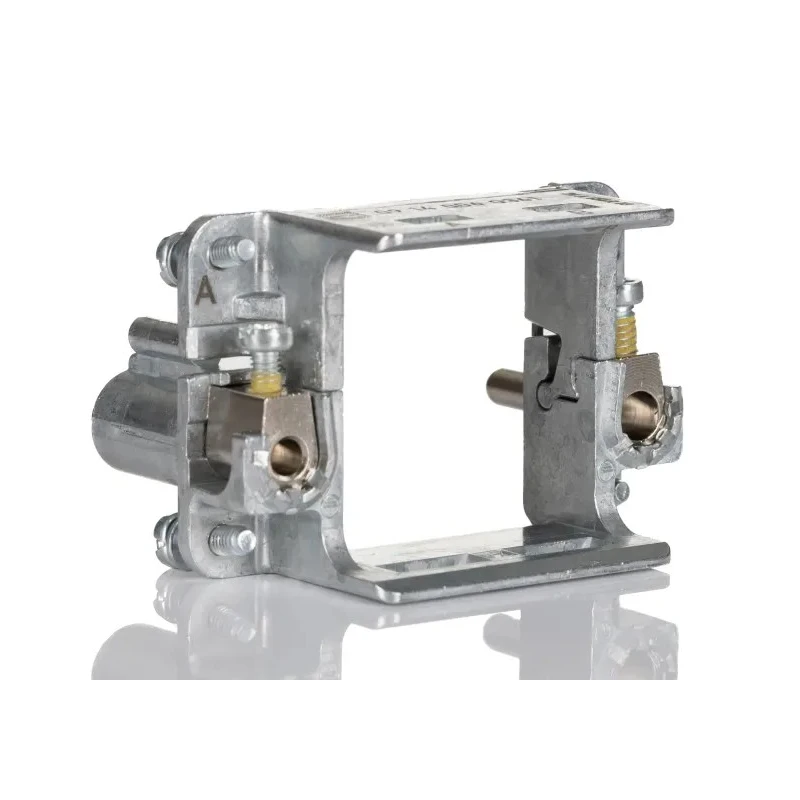

HARTING Hinged Frame Heavy Duty Power Connector Accessory Stainless Steel, Top Cable Entry, Han-Modular, For Use 09140060361
Specifications
| Country of Origin | Germany |
|---|---|
| Size | 6B |
| Brand | HARTING |
| Material | Stainless Steel |
| Series | Han-Modular |
| Accessory Type | Hinged Frame |
| For Use With | Han Modular 2 Module A-B |
| Minimum Wire Size mm² | 1mm² |
| Maximum Wire Size mm² | 10mm² |
| Cable Entry Angle | Top |
Key Features
- Constructed from stainless steel for durability and corrosion resistance.
- Top-entry cable angle simplifies cable routing in compact installations.
- Compatible with conductors ranging from 1mm² to 10mm² for versatile power connections.
- Supports a minimum of 500 mating cycles ensuring high reliability in industrial environments.
- Operates reliably within a temperature range of −40°C to +125°C for wide thermal applications.
- Equipped with PE screw torque specifications of 0.8 Nm for M3 and 1.2 Nm for M4 for secure earthing.
- Designed for retrofit and new installations in automation control panels and electrical distribution modules.
- Conforms to IEC connector standards and is approved by DNV GL, UL, and CSA.
Product Description
HARTING 09140060361 Hinged Frame is a premium accessory from the Han-Modular series, engineered for heavy duty power connectors with a top cable entry angle. Manufactured in Germany, this hinged frame is constructed from robust stainless steel, making it suitable for demanding industrial and automation applications. Designed specifically for use with Han Modular 2 Module A-B insert assemblies, it enables hinged access to connected modules, enhancing maintenance and operational efficiency in control panels and equipment racks.
The zinc die-cast body ensures excellent resistance against mechanical wear and corrosion. Its top-entry orientation facilitates cable management in tight assembly spaces, making it ideal for industrial machinery enclosures and electrical distribution modules. This hinged frame accommodates power conductors between 1mm² and 10mm², with ferrules recommended and mandatory when using specific crimping tools for larger conductor sizes.
Rated for a minimum of 500 mating cycles, the product guarantees durability in frequent use scenarios. The PE earthing screws, tightened to specified torques of 0.8 Nm (M3) and 1.2 Nm (M4), secure proper grounding for safety. It withstands temperatures from −40°C to +125°C, ensuring reliable performance across a wide range of thermal conditions including marine and offshore environments.
This hinged frame meets IEC connector standards and holds certifications such as UL 1977, CSA marking, and DNV GL approval, highlighting its compliance with stringent industrial safety and quality requirements. The component is suitable for automation control panels needing hinged access, retrofit of industrial connector assemblies, and multi-module signal and power combinations in cabinets.
Constructed of corrosion-resistant stainless steel. Top cable entry facilitates easy cable routing. Compatible with conductors from 1mm² to 10mm². Durable design supporting over 500 mating cycles. Operates reliably in temperatures between −40°C and +125°C.
PE screw torque: 0.8 Nm for M3 and 1.2 Nm for M4. Approved by UL, CSA, and DNV GL standards. Suitable for use in automation panels and machinery enclosures. Explore more high-quality accessories in the Heavy Duty Power Connector Accessories category at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This hinged frame accommodates conductors with a maximum wire size of 10mm².
It is constructed from stainless steel, providing durability and corrosion resistance.
It operates reliably within a temperature range of −40°C to +125°C.
It is rated for a minimum of 500 mating cycles, ensuring high reliability in industrial environments.
The accessory features a top cable entry angle, which simplifies cable routing in compact installations.
The PE screw torque specifications are 0.8 Nm for M3 screws and 1.2 Nm for M4 screws.
This hinged frame is part of the Han-Modular series.
The product is manufactured in Germany.
It is designed for use in automation control panels and electrical distribution modules, providing hinged access for maintenance.
It conforms to IEC connector standards and is approved by UL, CSA, and DNV GL.
The minimum wire size compatible with this model is 1mm².
This hinged frame is classified as size 6B.
