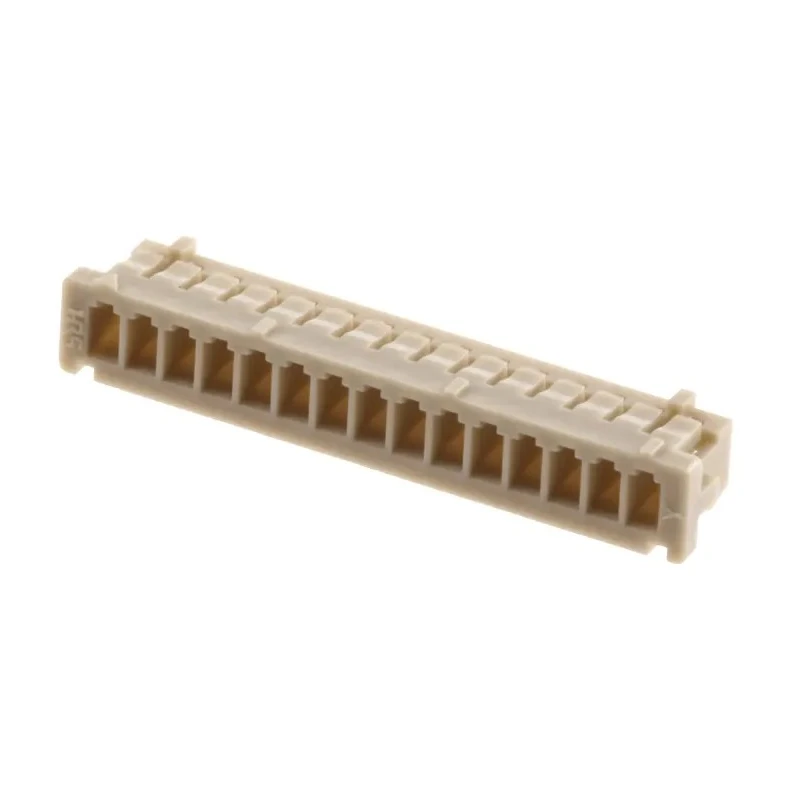

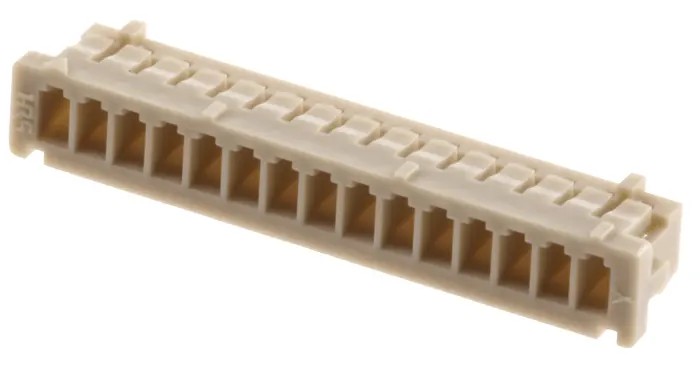

Hirose DF13 Male Connector Housing 1.25 mm Pitch 15 Way 1 Row Straight
Specifications
| Country of Origin | India |
|---|---|
| Brand | Hirose |
| Orientation | Straight |
| Length | 20.4mm |
| Model | DF13 |
| Width | 3.2mm |
| Mount Type | Cable |
| Housing Material | Polyamide |
| Series | DF13 |
| Number of Rows | 1 |
| Pitch | 1.25mm |
| For Use With | DF13 Series |
| Number of Contacts | 15 |
| Connector Gender | Male |
| Hirose, DF13 Male PCB Housing, 1.25mm Pitch, 15 Way, 1 RowBrand | Hirose |
Key Features
- Designed for cable mount use with the DF13 series connectors.
- Features a compact polyamide housing ideal for miniature electronic equipment.
- The 1.25 mm pitch supports high-density wiring configurations.
- Straight orientation and friction locking mechanism ensure secure connection.
- Widely used in digital cameras, LCD displays, automotive navigation, and measurement devices.
- Housing width measures 3.2 mm and length is 20.4 mm for space-saving installations.
- Ideal for industrial, commercial, electronic equipment and automotive applications.
- Meets UL94V-0 flammability standard for electrical safety.
Product Description
Hirose DF13-15S-1.25C is a male connector housing from the DF13 series, featuring a 1.25 mm pitch and 15 contacts arranged in a single row with straight orientation. It is constructed with durable polyamide housing material designed for cable mounting applications in a variety of electronics.
This miniature connector housing allows for high-density signal transmission with space-saving design, making it suitable for compact electronic devices including digital cameras, LCD displays, digital video recorders, car navigation systems, access control units, and measurement instruments.
The connector utilizes polarisation slots to prevent incorrect insertion and a friction locking mechanism ensuring secure mating connection. The housing dimensions of 3.2 mm width and 20.4 mm length enable efficient mounting in constrained spaces on PCBs or wiring harnesses.
These features make the Hirose DF13 series connector housings highly reliable and popular in industrial, laboratory, commercial electronics, automotive, and manufacturing applications.
Compact polyamide housing material for durability and insulation. 1.25 mm pitch ensures precise contact spacing for signal integrity. 15-way, single row configuration supports multiple signal paths. Straight cable mount orientation with friction locking for secure connection.
Compliant with UL94V-0 standards indicating flame retardancy. Reliably used across diverse industries including automotive and measurement devices.
Choose Hirose DF13-15S-1.25C for your PCB and cable assembly needs when a small, robust and precise connector housing is required. Browse other Connector Housings and wire housing solutions in EnvMart’s extensive electronics components section.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The pitch size of the Hirose DF13 connector housing is 1.25 mm, which supports high-density wiring configurations.
This connector housing features 15 contacts arranged in a single row.
The housing width measures 3.2 mm and the length is 20.4 mm, making it suitable for space-saving installations.
It is constructed from durable polyamide material, which provides insulation and durability for electronic applications.
The Hirose DF13 connector housing has a straight orientation, designed for cable mount applications.
This connector housing is specifically designed for use with the DF13 series connectors.
It is widely used in digital cameras, LCD displays, automotive navigation systems, and measurement devices.
Yes, it meets the UL94V-0 flammability standard, indicating its compliance with electrical safety requirements.
The mounting type of the Hirose DF13 connector housing is cable mount, facilitating easy installation in various devices.
The friction locking mechanism ensures a secure connection by preventing accidental disconnection once mated.
The country of origin for this connector housing is India.
The Hirose DF13 connector housing is a male connector, designed to fit into corresponding female connectors.
