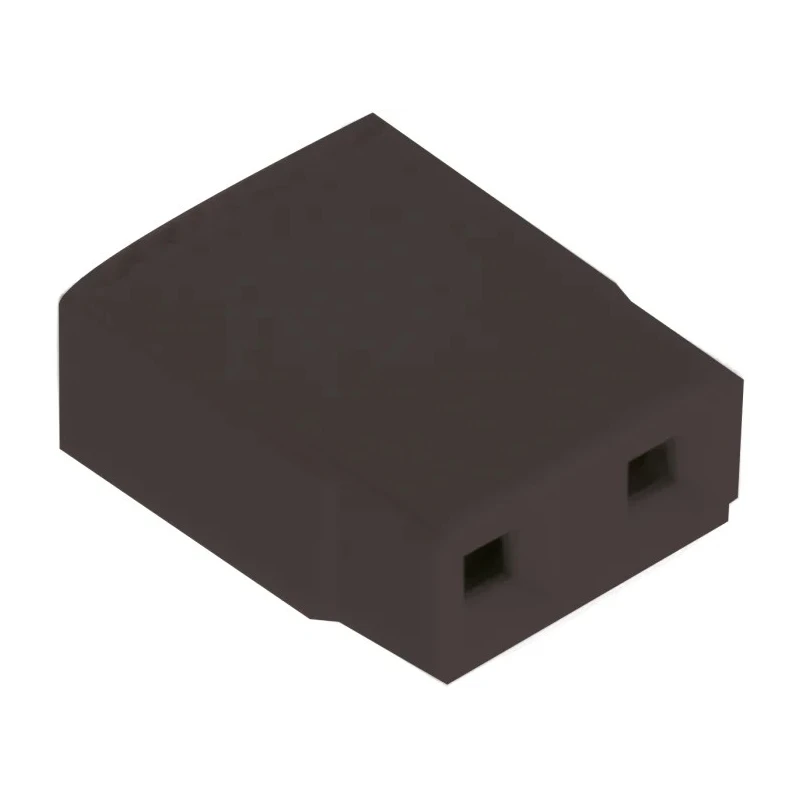

HARWIN M20 Jumper Straight Female Black Open Top 2 Way 1 Row 2.54 mm Pitch M7567-05
Specifications
| Country of Origin | United Kingdom |
|---|---|
| Voltage | 250V |
| Brand | HARWIN |
| Colour | Black |
| Orientation | Straight |
| Current | 3A |
| Length | 6.3mm |
| Model | M7567-05 |
| Depth | 2.3mm |
| Width | 5mm |
| Housing Material | Polybutylene Terephthalate |
| Contact Material | Phosphor Bronze |
| Series | M20 |
| Sub Type | Open Top |
| Number of Rows | 1 |
| Pitch | 2.54mm |
| Contact Plating | Gold |
| Number of Contacts | 2 |
| Contact Gender | Female |
| Connector Gender | Female |
| Maximum Contact Resistance | 25mΩ |
Key Features
- Constructed from polybutylene terephthalate housing material for durability.
- Rated for 3 A current and 250 V voltage ensuring reliable electrical performance.
- Features phosphor bronze contacts plated with gold to guarantee low resistance and corrosion protection.
- Compact size with dimensions 6.3 mm length, 5 mm width, and 2.3 mm depth for versatile PCB applications.
- Designed with an open top for test probe access and twin beam contacts for high reliability.
- Compatible with HARWIN M20 series pin headers and suitable for stacking side by side or end to end.
- Maximum contact resistance rated at 25 mΩ ensuring excellent conductivity.
Product Description
HARWIN M7567-05 is a 2 way, 1 row open top jumper connector designed for use in electronic PCB connectors and wire housing applications. It features a straight orientation and female connector gender with a 2.54 mm pitch, making it suitable for HARWIN M20 series pin headers.
The housing is made from durable polybutylene terephthalate, while the contacts are constructed from phosphor bronze and plated with gold to provide excellent electrical conductivity and resistance to corrosion. This jumper supports a current rating of 3 A and voltage rating of 250 V.
Its compact physical dimensions - 6.3 mm length, 5 mm width, and 2.3 mm depth - enable easy stacking and use in dense PCB layouts. The open top design allows access for test probes, facilitating circuit testing without removal. Twin beam contacts provide enhanced reliability and secure connections.
This jumper is ideal for industrial electronics, manufacturing testing, prototyping, and development environments where precise and reliable PCB connectivity is critical. Constructed with polybutylene terephthalate housing for durability.
Phosphor bronze contacts with gold plating ensure low resistance. Rated for 3 A current and 250 V voltage for reliable operation. Open top design allows test probe access during inspection. Compact size for ease of integration in PCB assemblies.
Compatible with HARWIN M20 series pin headers and SMT applications. Maximum contact resistance 25 mΩ ensuring efficient electrical contact. Manufactured in the United Kingdom, this jumper meets quality and reliability standards expected in demanding electronic applications.
Explore more options in Jumpers & Shunts category on EnvMart for your electronic component sourcing needs.
Explore more products in our Jumpers & Shunts category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This jumper connector is rated for a current of 3 A and a voltage of 250 V, ensuring reliable electrical performance in various applications.
The dimensions of this jumper are 6.3 mm in length, 5 mm in width, and 2.3 mm in depth, making it compact for PCB applications.
The housing is constructed from polybutylene terephthalate, while the contacts are made of phosphor bronze and plated with gold for low resistance and corrosion protection.
The open top design allows for easy access for test probes, facilitating circuit testing without the need to remove the jumper from the PCB.
The maximum contact resistance is rated at 25 mΩ, ensuring efficient electrical contact and low resistance in connections.
Yes, it is compatible with HARWIN M20 series pin headers, allowing for versatile integration in electronic applications.
This jumper is ideal for industrial electronics, manufacturing testing, prototyping, and development environments where reliable PCB connectivity is essential.
The HARWIN M7567-05 jumper features a female connector gender, suitable for various PCB configurations.
The pitch size of this jumper is 2.54 mm, which is standard for many PCB applications.
This jumper has 2 contacts, allowing for dual connections in electronic circuits.
The jumper is designed with a straight orientation, facilitating straightforward installation on PCBs.
This jumper is manufactured in the United Kingdom, meeting quality and reliability standards for electronic components.
