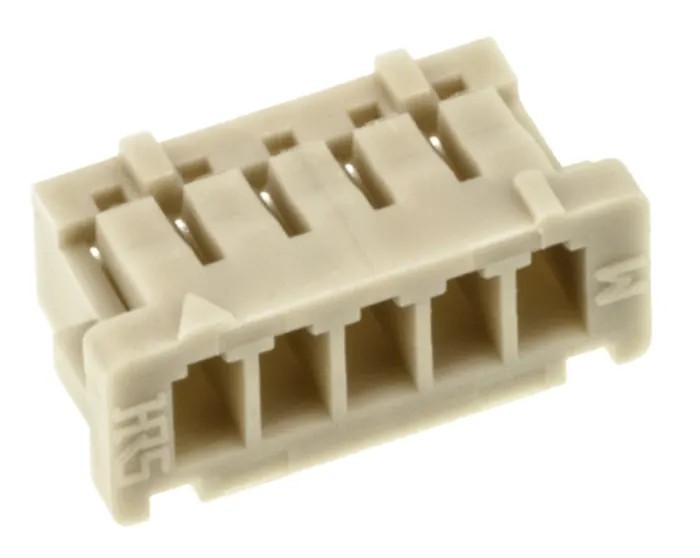

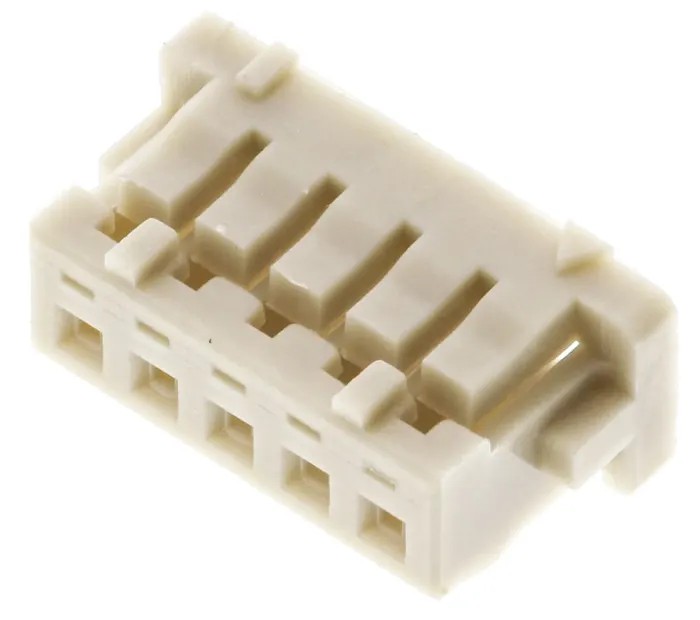

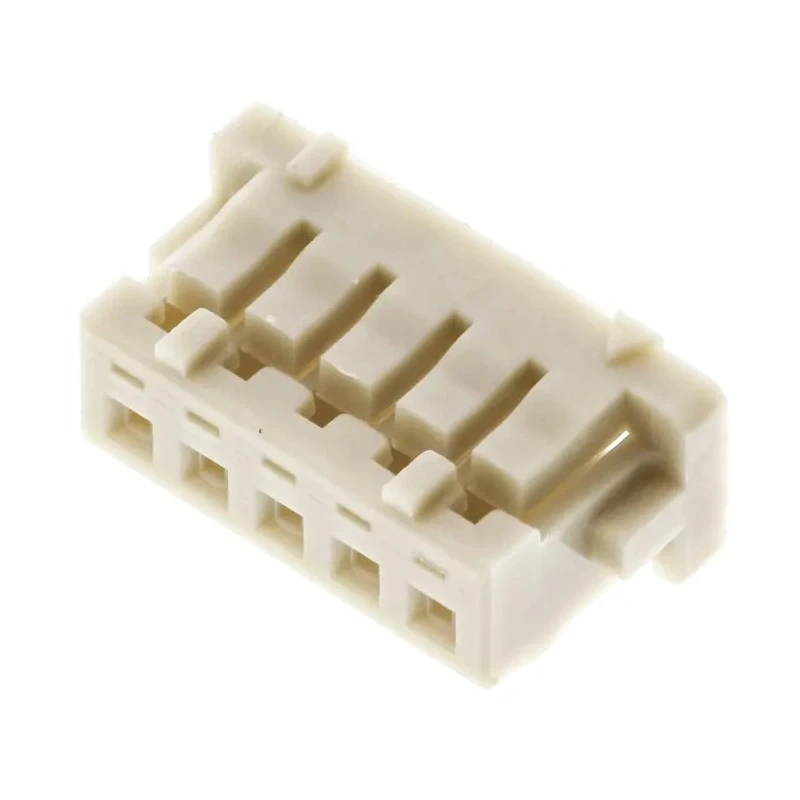

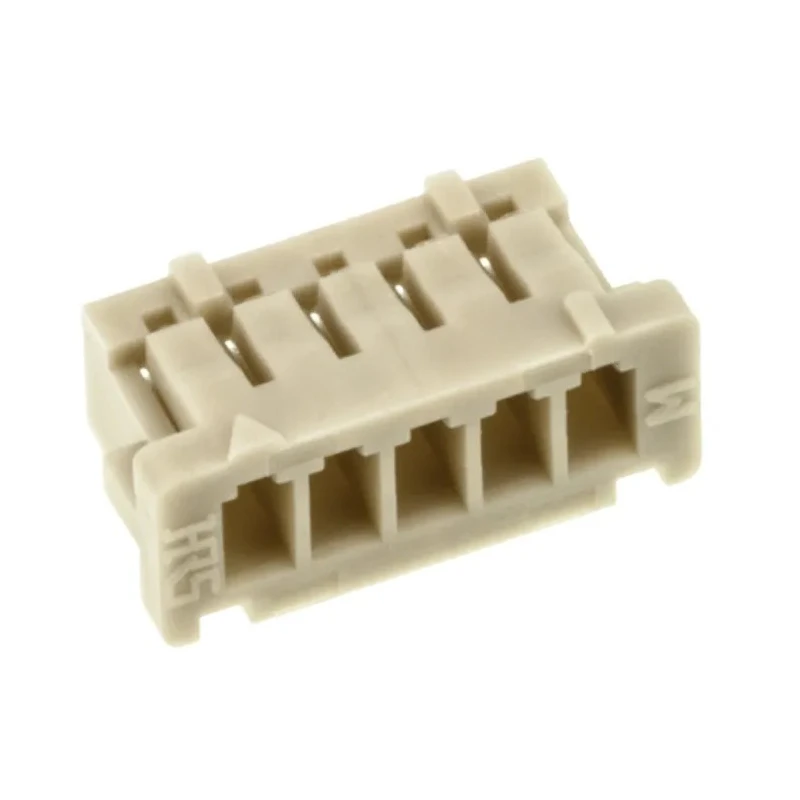

Hirose DF13 Male Connector Housing, 1.25 mm Pitch, 5 Way, 1 Row Straight DF13
Specifications
| Country of Origin | Japan |
|---|---|
| Brand | Hirose |
| Orientation | Straight |
| Length | 7.9mm |
| Model | DF13 |
| Width | 3.2mm |
| Mount Type | Cable |
| Housing Material | Polyamide |
| Series | DF13 |
| Number of Rows | 1 |
| Pitch | 1.25mm |
| For Use With | Miniature Crimping Connector |
| Number of Contacts | 5 |
| Connector Gender | Male |
Key Features
- Miniature connector housing with 1.25 mm pitch for space-saving applications.
- Features 5 contact points arranged in a single straight row.
- Constructed from durable polyamide housing material.
- Designed for use with miniature crimping connectors, ensuring secure cable mounting.
- Friction locking mechanism enhances mating connection stability.
- Polarisation slots prevent incorrect insertion of connectors.
- Commonly used in digital cameras, LCD displays, DVRs, car navigation, and measurement devices.
- Orientation is straight, with cable mount type for versatile applications.
Product Description
Hirose DF13 male connector housing, model DF13, is a compact 1.25 mm pitch connector housing designed for cable mounting applications requiring reliable multi-contact connections.
This housing features 5 contacts arranged in a single row straight configuration that supports miniature crimping connectors. The polyamide housing material provides durability and resistance suitable for various industrial and electronic uses.
Its miniature design and 1.25 mm pitch make it ideal for space-constrained assemblies in devices such as digital cameras, LCD displays, digital video recorders, car navigation systems, access control units, and precision measurement instruments.
The housing incorporates polarisation slots to prevent misinsertion, alongside a friction locking mechanism that secures mating connections for reliable operation. The straight orientation and cable mount type facilitate flexible integration in multiple applications.
Its compact size with a length of 7.9 mm and width of 3.2 mm enables high-density configurations and efficient use of space. Miniature connector housing with 1.25 mm pitch for space-saving applications. Features 5 contact points arranged in a single straight row.
Polyamide housing ensures durability and electrical insulation. Polarisation slots and friction lock secure proper connector mating. Compatible with miniature crimping connectors for cable mounting. Used extensively in electronics, automotive, and industrial equipment.
Designed for applications such as digital cameras, LCD displays, and car navigation. Compact dimensions optimize space and allow for high-density layouts. Manufactured in Japan meeting quality standards. This connector housing from Hirose fits perfectly into both commercial and industrial electronics where compact, reliable wiring connections are essential.
Explore a broad range of Connector Housings and related components in the Electronics & Electricals category at EnvMart for your PCB and wiring needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The pitch size of this connector housing is 1.25 mm.
It features 5 contacts arranged in a single straight row.
The orientation of this model is straight, designed for cable mounting applications.
The housing is constructed from durable polyamide material, providing electrical insulation.
This unit has a length of 7.9 mm and a width of 3.2 mm.
Yes, it incorporates a friction locking mechanism that enhances the stability of the mating connection.
The country of origin for this connector housing is Japan.
This connector housing has 1 row.
