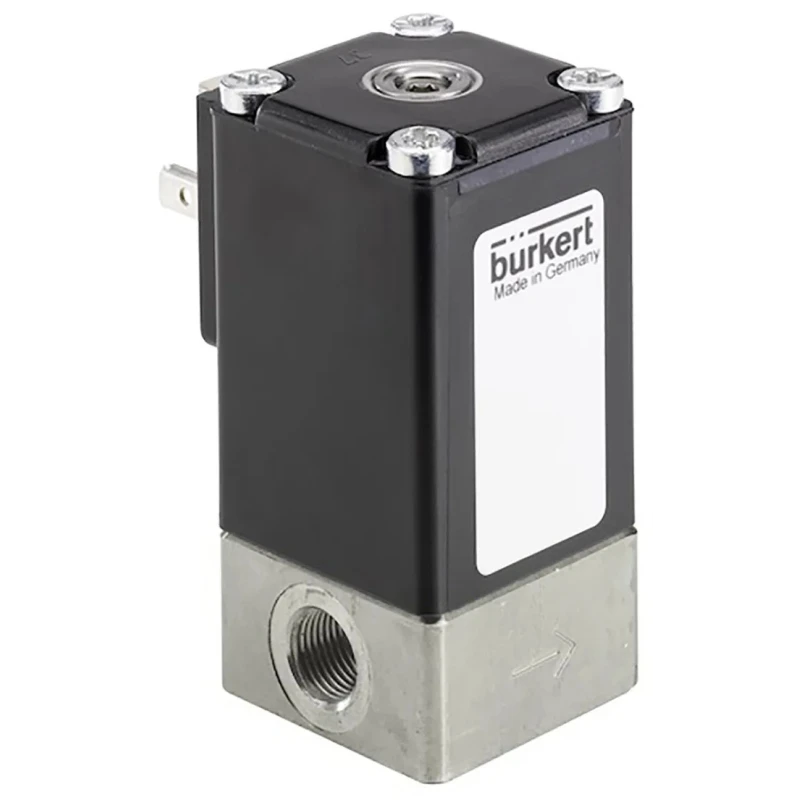

Burkert Proportional Solenoid Valve 2 Port NC 24V DC Stainless Steel Body 3mm Orifice 3.5 bar 2873 Series 239082
Specifications
| Country of Origin | Germany |
|---|---|
| Brand | Burkert |
| Body Material | Stainless Steel |
| Maximum Operating Pressure | 3.5 bar |
| Model | 239082 |
| Series | 2873 |
| Number Of Ports | 2 |
| Minimum Operating Temperature | 55°C |
| Orifice Diameter | 3mm |
| Supply Voltage | 24V dc |
| Standards/Approvals | ATEX, UL 429, IECEX |
| Inlet Port Size | 6.35 mm |
| Default Valve Position | NC |
| Inlet Port Gender | Female |
| Maximum Opening Time | 20ms |
| Flow Factor Kv | 0.22m³/h |
Key Features
- Provides continuously adjustable and smooth fluid flow control.
- Features a 3 mm orifice diameter for precise flow regulation.
- Constructed with a stainless steel body for durability and corrosion resistance.
- Normal closed (NC) valve position with female inlet and outlet ports sized 6.35 mm.
- Maximum operating pressure of 3.5 bar suitable for liquid and neutral gas applications.
- Designed for excellent response time with a maximum opening time of 20 ms.
- Complies with ATEX, UL 429, and IECEX standards for safety and reliability.
- IP65 rated protecting against dust and water ingress.
Product Description
Burkert 239082 proportional solenoid valve is a high-precision 2/2 way valve from the 2873 Series designed for liquid and neutral gas control. Featuring a stainless steel body and female inlet and outlet ports of 6.35 mm size, it operates at 24V DC with a normal closed (NC) valve position providing reliable shut-off.
This valve enables continuously variable flow control using PWM (pulse width modulation), allowing for precise regulation from 0 to 100 percent flow. Its frictionless plunger mechanism and elastomeric seal ensure accurate adjustments and tight sealing, making it ideal for demanding industrial applications requiring high accuracy.
Designed with an orifice diameter of 3 mm and maximum operating pressure of 3.5 bar, it performs efficiently across a wide temperature range of -55°C to +55°C. The fast 20 ms maximum opening time ensures swift response for control processes.
The valve meets international standards including ATEX, UL 429, and IECEX, marking compliance for safety in hazardous environments (though this specific model does not have hazardous area certification). Its IP65 rating confirms protection against dust and water ingress, ensuring reliable operation in tough industrial and commercial environments.
Typical applications include industrial automation, laboratory and process control, HVAC systems, water treatment plants, and manufacturing operations. The stainless steel body contributes to excellent corrosion resistance and mechanical robustness for long-term use.
Provides continuously adjustable and smooth fluid flow control. Features a 3 mm orifice diameter for precise flow regulation. Constructed with a stainless steel body for durability and corrosion resistance. Normal closed (NC) valve position with female inlet and outlet ports sized 6.35 mm.
Maximum operating pressure of 3.5 bar suitable for liquid and neutral gas applications. Designed for excellent response time with a maximum opening time of 20 ms. Complies with ATEX, UL 429, and IECEX standards for safety and reliability.
IP65 rated protecting against dust and water ingress. Operates within a temperature range of -55°C to +55°C. Ideal for industrial, water treatment, HVAC, and process control systems. Explore more Burkert Solenoid Valves and industrial control valves on EnvMart for reliable and precise fluid management solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating pressure of this model is 3.5 bar, making it suitable for liquid and neutral gas applications.
This valve features an orifice diameter of 3 mm, allowing for precise flow regulation.
It operates at a supply voltage of 24V DC.
The default valve position is normally closed (NC).
The valve has female inlet and outlet ports sized at 6.35 mm.
The maximum opening time for this valve is 20 ms, ensuring a swift response for control processes.
This model can operate within a temperature range of -55°C to +55°C.
It complies with ATEX, UL 429, and IECEX standards for safety and reliability.
The body of this valve is constructed from stainless steel, providing corrosion resistance.
Typical applications include industrial automation, laboratory and process control, HVAC systems, and water treatment plants.
While it complies with safety standards, this specific model does not have hazardous area certification.
The flow factor Kv for this model is 0.22 m³/h, which indicates its flow capacity.
