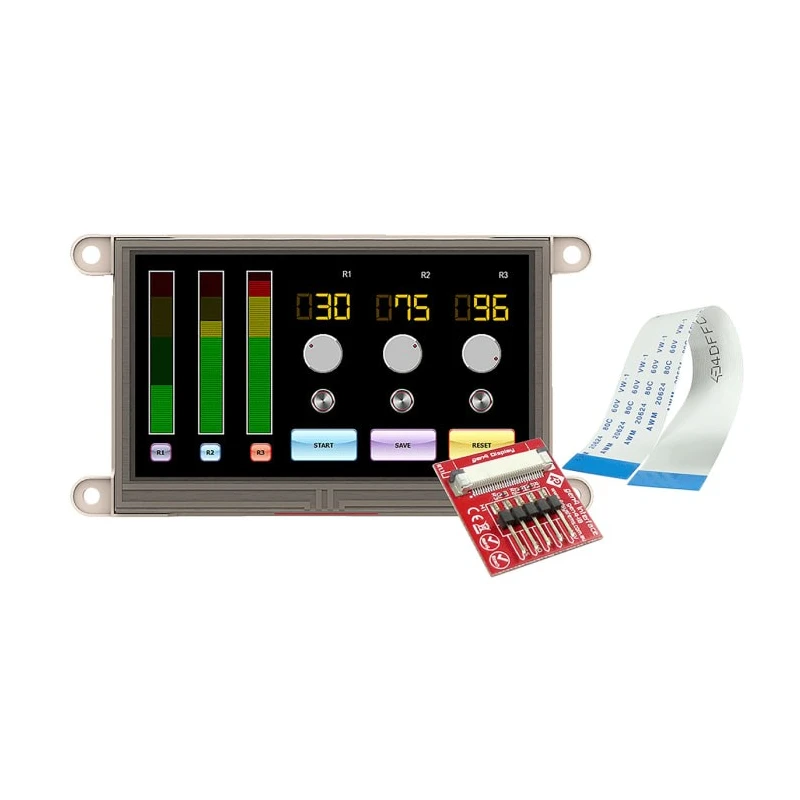

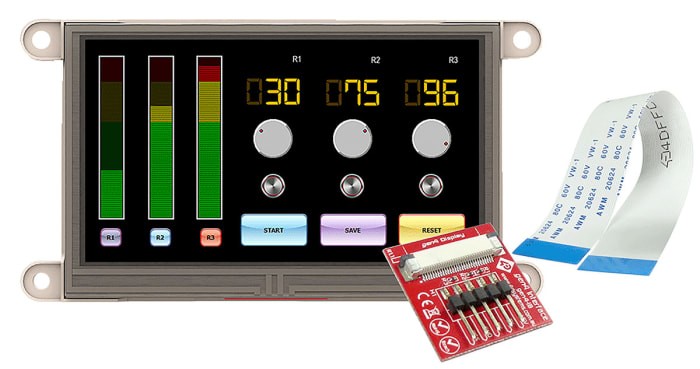

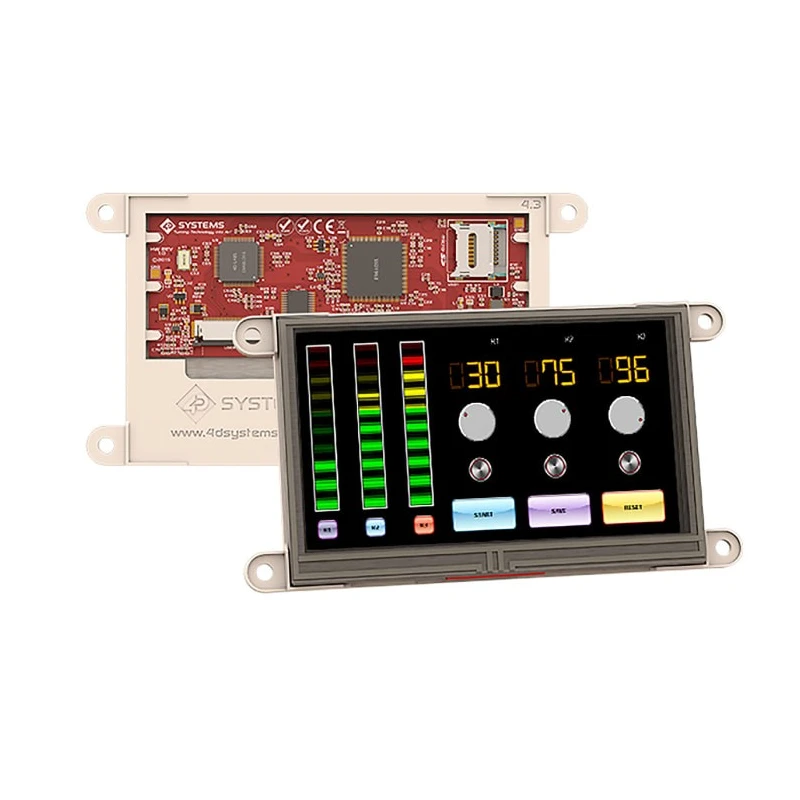

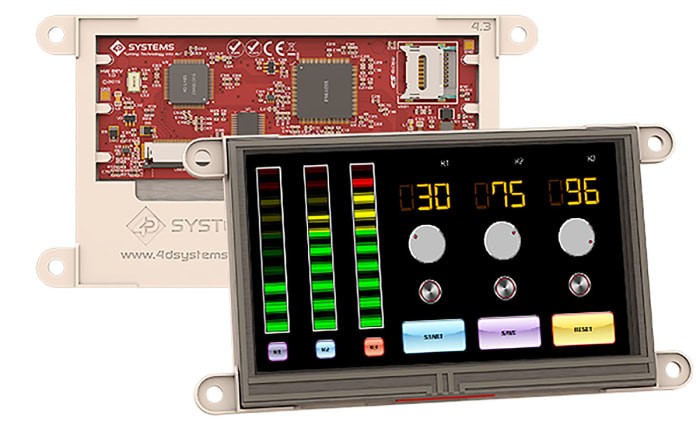

4D Systems LCD Colour Display Touch Screen 4.3 in 480x272 Pixel Serial Interface Resistive 310mA LED gen4-uLCD-43DT

4D Systems gen4-uLCD-43DT is a high-quality LCD colour display touch screen designed for seamless integration in industrial, electronic, and embedded system applications. Featuring a 4.3 inch diagonal screen with a resolution of 480 x 272 pixels, this display uses a serial interface type and resistive touch technology to provide precise and intuitive human-machine interaction.

The display module has a bright LED backlight with a luminance of 400cd/m² and a strong contrast ratio of 500:1, ensuring clear visibility in various lighting conditions. Its compact dimensions of 127.6mm width, 53.86mm depth, and only 7.8mm height allow it to fit snugly into constrained spaces, making it highly suitable for embedded applications.

Operating voltages range between 4.0V and 5.5V, drawing 310mA of current, thus offering efficient power consumption. The rugged operating temperature range from -10°C to 60°C makes it reliable for use in industrial and commercial environments.

The gen4-uLCD-43DT features a 30-pin FPC connector which provides power, communication, and GPIO interfaces, simplifying installation by eliminating extensive wiring. Additionally, a micro-SD card connector is included to support multimedia storage and data logging, making it versatile for embedded control systems demanding data retention or dynamic content display.

Powered by the 4D Systems Diablo16 processor, the display supports built-in graphics, text, image, and animation capabilities. It is compatible with the 4D Workshop4 IDE, allowing developers to choose from four development environments for application programming flexibility.

The display offers RGB 65k true-to-life colours. It incorporates 6 banks of 32KB Flash memory and 32KB of user RAM for application and data storage. Includes 16 GPIO pins with multiple configurable outputs such as analog, PWM, pulse, and quadrature encoder inputs.

Dedicated PWM audio pin enhances multimedia capabilities. The thin and compact design supports a low profile, suitable for flush mounting in various projects.

This 4D Systems LCD Colour Display Touch Screen is ideal for industrial automation, embedded systems, instrumentation, control panels, and other applications that require a reliable, bright, and programmable touchscreen display module.
