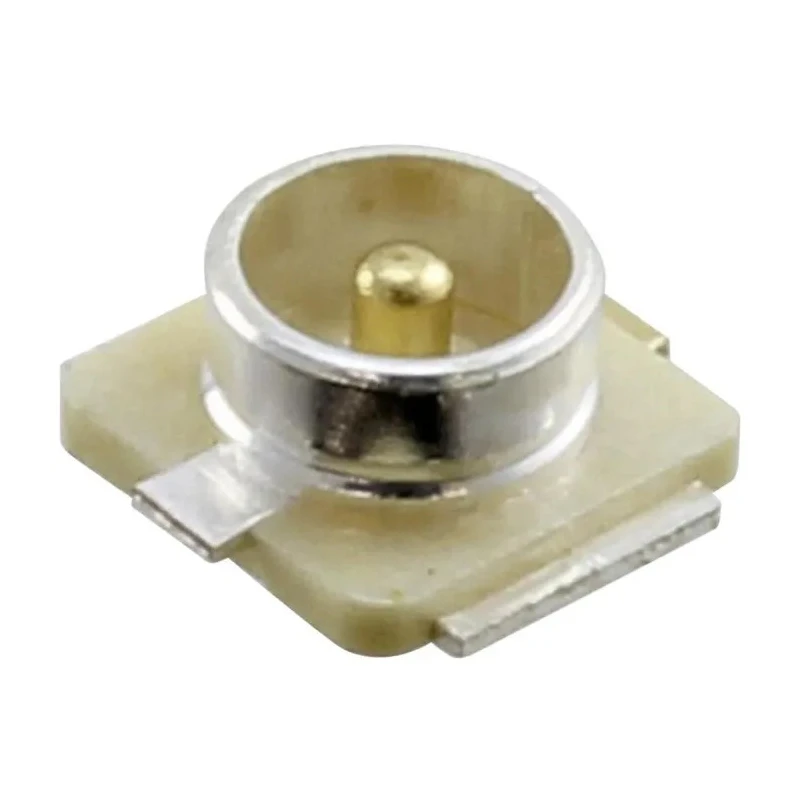

Radiall MML Series Coaxial Connector PCB Female UHF 50 Ω Straight Body Solder R302302000
Specifications
| Country of Origin | India |
|---|---|
| Size | Miniature |
| Brand | Radiall |
| Orientation | Straight |
| Model | R302302000 |
| Mount Type | PCB |
| Operating Frequency | 6GHz |
| Contact Material | Brass |
| Series | MML |
| Termination Type | Solder |
| Maximum Operating Temperature | 90°C |
| Cable Type | Coaxial |
| Minimum Operating Temperature | -40°C |
| Polarity | Normal |
| Impedance | 50Ω |
| Contact Plating | Gold |
| Contact Gender | Female |
| Connector Gender | Female |
| Coaxial Connector Type | UHF |
| Body Plating | Gold |
Key Features
- Features gold plated brass contact and bronze body for corrosion resistance.
- Designed for PCB mounting with solder termination type.
- Supports temperature range from -40°C to 90°C for robust operation.
- Offers a straight body orientation for flexible installation.
- Compatible with coaxial cables and supports snap-on mechanism.
- Ideal for WiFi access points, GPS devices, and handheld radios.
- Polarity is normal with a female contact gender configuration.
Product Description
Radiall R302302000 MML Series Coaxial Connector is a precision-engineered PCB mount female UHF connector designed to operate at 50 Ω impedance and frequencies up to 6 GHz. It features a gold plated bronze body and a gold plated brass centre contact to ensure reliable connectivity and excellent signal transmission.
This connector has a straight body design and solder termination type, making it suitable for durable PCB interconnections. It operates efficiently within a wide temperature range from -40°C to 90°C, suitable for industrial and commercial applications involving WiFi access points, GPS/mobile devices, and handheld radios.
The miniature size and robust snap-on mechanism facilitate easy and secure connections while maintaining high performance. Its gold plating resists corrosion and enhances conductivity, making it ideal for demanding electronic environments. The normal polarity and female connector gender provide standardized interfacing in coaxial cable systems.
Gold plated body and centre contact for excellent corrosion resistance. Supports sharp frequency response with up to 6 GHz operational bandwidth. Snap-on mechanism enables quick and reliable mating. Robust temperature tolerance from -40°C to 90°C ensures wide environmental usability.
Miniature PCB mounting profile saves board space. Suitable for wireless communication and radio frequency devices. Highly durable brass contact and body materials.
This Radiall MML series connector is widely used in industrial electronics, telecommunication, RF applications, and manufacturing environments requiring dependable coaxial connections. It supports precision signal transmission in laboratory, commercial, and industrial settings.
Explore Radiall product ranges and related Coaxial Connectors at EnvMart for comprehensive solutions in electronic connector technology.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating frequency of this coaxial connector is 6 GHz, making it suitable for high-frequency applications.
This connector has an impedance rating of 50 Ω, which is standard for many RF applications.
It operates efficiently within a temperature range from -40°C to 90°C, allowing for use in various environmental conditions.
This model uses a solder termination type, which is designed for secure PCB mounting.
The contact is made of brass and is gold plated, while the body is also gold plated bronze, enhancing conductivity and corrosion resistance.
The connector features a female contact gender configuration, which is standard for interfacing with coaxial cables.
This connector is classified as miniature, which helps save space on printed circuit boards.
The snap-on mechanism enables quick and reliable mating, facilitating easy connections in various applications.
It is commonly used in applications involving WiFi access points, GPS devices, and handheld radios.
The connector has a straight body orientation, which allows for flexible installation options on PCBs.
The country of origin for this connector is India.
This model is compatible with coaxial cables, making it suitable for various RF applications.
