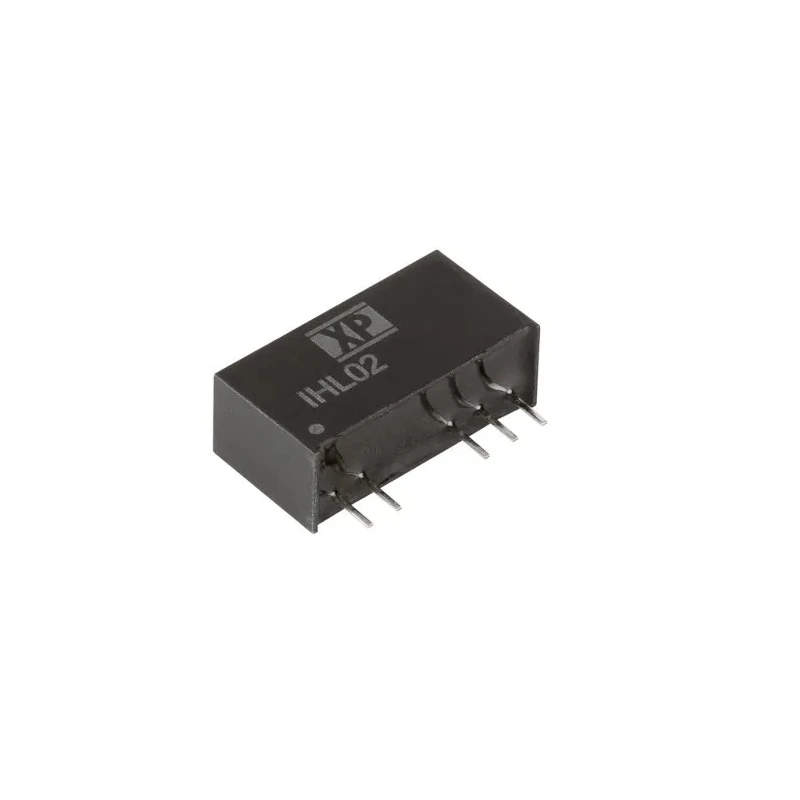

XP Power Isolated DC/DC Converter 3.3V DC 500mA Output, 13.2V Max Input, 10.8V Min Input, 2W Power, SIP7 Through Hole IHL02
Specifications
| Country of Origin | Taiwan |
|---|---|
| Brand | XP Power |
| Efficiency | 77% |
| Length | 19.5mm |
| Model | IHL02 |
| Depth | 10mm |
| Width | 7.2mm |
| Mount Type | Through Hole |
| Series | IHL02 |
| Maximum Operating Temperature | 85°C |
| Package Type | SIP |
| Minimum Operating Temperature | -40°C |
| MTBF | 3300000h |
| Number of outputs | 1 |
| Maximum Output Power | 2W |
| Maximum Input Voltage | 13.2V dc |
| Minimum Input Voltage | 10.8V |
| Number of Pins | 7 |
| Output Voltage 1 | 3.3V dc |
| Output Current 1 | 500mA |
| Isolation Voltage | 5.2kV dc |
Key Features
- High isolation voltage of 5.2kV DC ensures safety and reliability.
- Wide input voltage range from 10.8V to 13.2V DC supports flexible power sources.
- Operating temperature range from -40°C to 85°C for harsh environments.
- Compact SIP7 package with dimensions 19.5mm length, 7.2mm width, and 10mm depth.
- MTBF of 3,300,000 hours guarantees long operational lifetime.
- Efficiency rating at 77% optimizes power usage and thermal performance.
- Designed for through hole mounting facilitating easy PCB assembly.
- Single output channel simplifies integration in electronic systems.
Product Description
XP Power IHL02 model is a highly reliable DC/DC converter providing stable 3.3V DC output at up to 500mA current with a maximum output power of 2W. It operates within a voltage input range of 10.8V to 13.2V DC, making it versatile for power supply designs requiring high isolation and robust performance.
The unit features a high isolation voltage of 5.2kV DC, ensuring electrical safety in demanding industrial environments. Installed in a standard SIP7 through hole package, it offers easy mountability with a compact footprint measuring 19.5mm in length, 7.2mm in width, and 10mm in depth.
Operating temperature range from -40°C to 85°C allows deployment in harsh and varying climate conditions. Its 77% efficiency rating not only reduces power losses but also minimizes heat dissipation, enhancing device longevity and reducing cooling requirements.
The device is engineered with an MTBF rating of 3,300,000 hours signifying exceptional reliability and operational lifetime. This converter is well suited for various power supply applications including industrial automation systems, laboratory instrumentation, and embedded electronic device power management where compact, isolated DC/DC conversion is essential.
Typical applications include MOSFET and IGBT drive circuits, industrial control systems, and communication devices requiring isolated, regulated voltage outputs. High isolation voltage of 5.2kV DC for safety and noise immunity.
Wide input voltage accommodation from 10.8V to 13.2V DC. Compact SIP7 through hole mounting package for easy PCB integration. Operating temperature from -40°C to 85°C for industrial environments. High reliability with MTBF of 3.3 million hours.
Good efficiency of 77% for effective power management. Designed for single output operation providing 3.3V DC at 500mA. Suitable for industrial, laboratory, and embedded system power solutions.
XP Power products are widely recognized for their quality and innovation. Explore more DC/DC converters and power supplies for your industrial and electronic design needs in the EnvMart DC/DC Converter category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model provides a stable output voltage of 3.3V DC with a maximum output current of 500mA.
It operates within a voltage input range of 10.8V to 13.2V DC, allowing for flexibility in power supply designs.
The isolation voltage of this unit is 5.2kV DC, ensuring electrical safety in demanding environments.
The SIP7 package has dimensions of 19.5mm in length, 7.2mm in width, and 10mm in depth.
It has an efficiency rating of 77%, which helps optimize power usage and thermal performance.
The operating temperature range is from -40°C to 85°C, making it suitable for harsh environments.
The MTBF is rated at 3,300,000 hours, indicating exceptional reliability and operational lifetime.
It is designed for through hole mounting, facilitating easy PCB assembly.
This model has a single output channel, simplifying integration into electronic systems.
It is suitable for various applications including industrial automation systems, laboratory instrumentation, and embedded electronic devices.
The SIP7 package contains 7 pins, which are used for connections in the circuit.
This model belongs to the IHL02 series, which includes other similar DC/DC converters.
