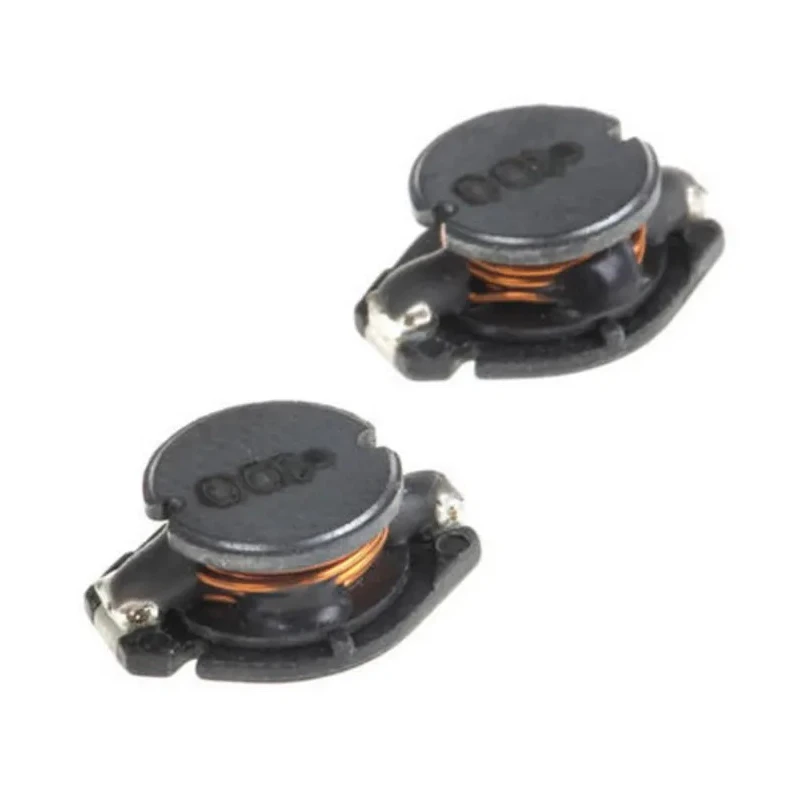

Wurth Elektronik Wirewound Surface Mount Inductor WE-PD4 Series 10 μH ±20% 3.3 A Idc Ferrite Core 7445610

Wurth Elektronik 7445610 is a high quality, wirewound surface mount inductor from the WE-PD4 series featuring a robust ferrite core and an inductance value of 10 μH with ±20% tolerance. Designed for power applications, this inductor supports a maximum DC current of 3.3 A and operates efficiently within a temperature range of -40°C to 125°C.

The compact design dimensions of 12.7 mm in length, 5 mm in height, and 10 mm in depth make it ideal for space-constrained PCB layouts. It is packaged in tape and reel format to facilitate automated surface-mount technology assembly processes.

This component is constructed using wirewound technology ensuring stable inductance and low energy losses, with a maximum DC resistance of 45 mΩ. The unshielded configuration and two-pin count allow versatile integration in various electronic circuits. It boasts a high self-resonant frequency of 23 MHz, enabling its use in high frequency applications like switch mode power supplies (SMPS).

The 7445610 model complies with industry standards including RoHS, REACH, and JEDEC JS709B. This compliance guarantees adherence to environmental and quality directives. Compact ferrite core wirewound inductor optimized for surface mount assembly.

Rated for maximum DC current of 3.3 A suitable for power regulation circuits. Temperature tolerant from -40°C to +125°C for reliable industrial performance. Tape & reel packaging supports high volume automated production.

Low DC resistance minimizes energy loss and heat generation in circuits. High self-resonant frequency supports applications up to 23 MHz. Meets RoHS, REACH, and JEDEC JS709B quality and safety standards. Dimensions tailored for efficient PCB space use: 12.7 mm × 5 mm × 10 mm.

Wirewound construction enhances durability and inductance stability. Unshielded two-pin design for flexible electronic integration.

This Surface Mount Inductor is ideal for electronic, industrial, and power management applications including switch mode power supplies, interference suppression, and general electronic equipment. Its robust design ensures durability and stable electrical characteristics in demanding environments.
