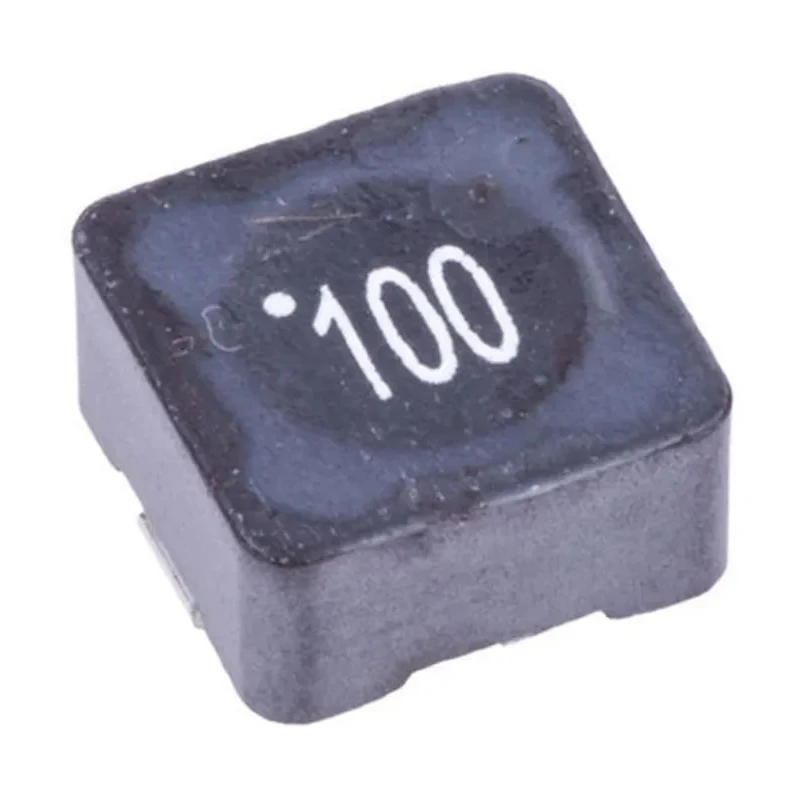

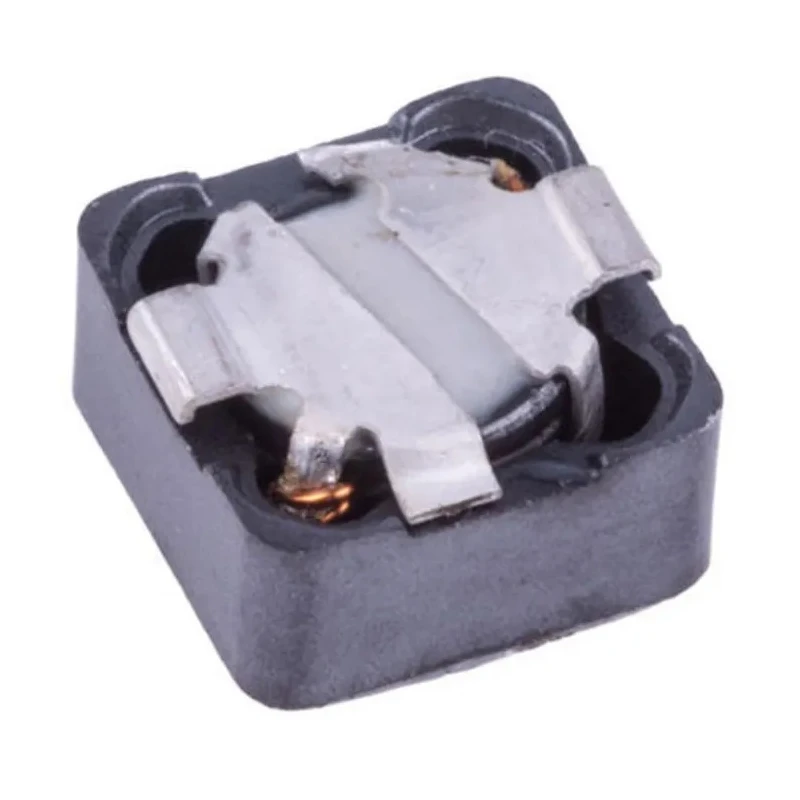

Wurth Elektronik WE-PD 7345 Shielded Wirewound Surface Mount Inductor with Ferrite Core, 10 μH ±20% 2 A Idc 74477710
Specifications
| Country of Origin | China |
|---|---|
| Brand | Wurth Elektronik |
| Height | 4.5mm |
| Length | 7.3mm |
| Model | 74477710 |
| Depth | 7.3mm |
| Packaging | Tape & Reel |
| Series | WE-PD |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -40°C |
| Core Material | Ferrite |
| Inductance | 10μH |
| Standards/Approvals | IEC 62024-2-2020, JEDEC JS709B, REACH, RoHS |
| Package/Case | 7345 |
| Maximum DC Current | 2A |
| Pin Count | 2 |
| Maximum DC Resistance | 49mΩ |
| Inductance Tolerance | ±20 % |
| Termination Style | Surface Mount |
| Maximum Self Resonant Frequency | 26MHz |
| Inductor Construction | Wirewound |
| Automotive Standard | AEC-Q200 |
Key Features
- Magnetically shielded for a low leakage magnetic field.
- Constructed with a ferrite core and wirewound technique.
- Compact 7345 package size with surface mount termination style.
- Suitable for operating temperatures from -40°C to 125°C.
- Complies with automotive standard AEC-Q200 and IEC 62024-2-2020.
- Maximum DC resistance of 49 milliohms ensures efficiency.
- Maximum self-resonant frequency of 26 MHz enhances performance.
- Ideal for switching regulators and integrated DC-DC converters.
Product Description
Wurth Elektronik presents the model 74477710 WE-PD series shielded wirewound surface mount inductor, featuring a ferrite core and a compact 7345 package. This 10 μH ±20% tolerance inductor supports a maximum DC current of 2 A, making it well-suited for high performance applications requiring stable inductance and low leakage magnetic fields.
The inductor's design includes magnetic shielding to minimize interference and maintain efficiency in sensitive electronic circuits. Its wirewound construction and ferrite core allow it to handle high storage capacity and current load with minimal resistance (49 mΩ max).
Engineered to operate reliably between -40°C to +125°C, it meets automotive standard AEC-Q200 and compliances such as IEC 62024-2-2020, JEDEC JS709B, REACH, and RoHS, assuring quality and durability.
Typical applications include switching regulators with both low and high efficiency (>86%), integrated DC-DC converters, and graphic card designs. The inductor is molded and delivered in a tape and reel format, enhancing production efficiency and solder profile compatibility with reflow processes.
Magnetic shielding reduces leakage field. High current and storage capacity. Wide operating temperature range from -40°C to 125°C. Automotive standard compliant (AEC-Q200). Surface mount design in 7345 package. Explore the Electronics & Electricals category for more high-quality Inductors and related components.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The inductance value of this inductor is 10 μH with a tolerance of ±20%.
This model can handle a maximum DC current of 2 A.
The maximum DC resistance is 49 milliohms, ensuring efficient performance.
The dimensions of this inductor are 7.3 mm in length, 7.3 mm in depth, and 4.5 mm in height.
It operates reliably within a temperature range of -40°C to 125°C.
The maximum self-resonant frequency is 26 MHz, which enhances its performance in applications.
This inductor is constructed with a ferrite core, which contributes to its magnetic shielding capabilities.
It complies with automotive standard AEC-Q200, as well as IEC 62024-2-2020, JEDEC JS709B, REACH, and RoHS.
The inductor is molded and delivered in a tape and reel format, which enhances production efficiency.
This model features a surface mount termination style, suitable for various PCB applications.
Typical applications include switching regulators, integrated DC-DC converters, and graphic card designs.
The inductor is constructed using a wirewound technique, which allows for high storage capacity and current load.
