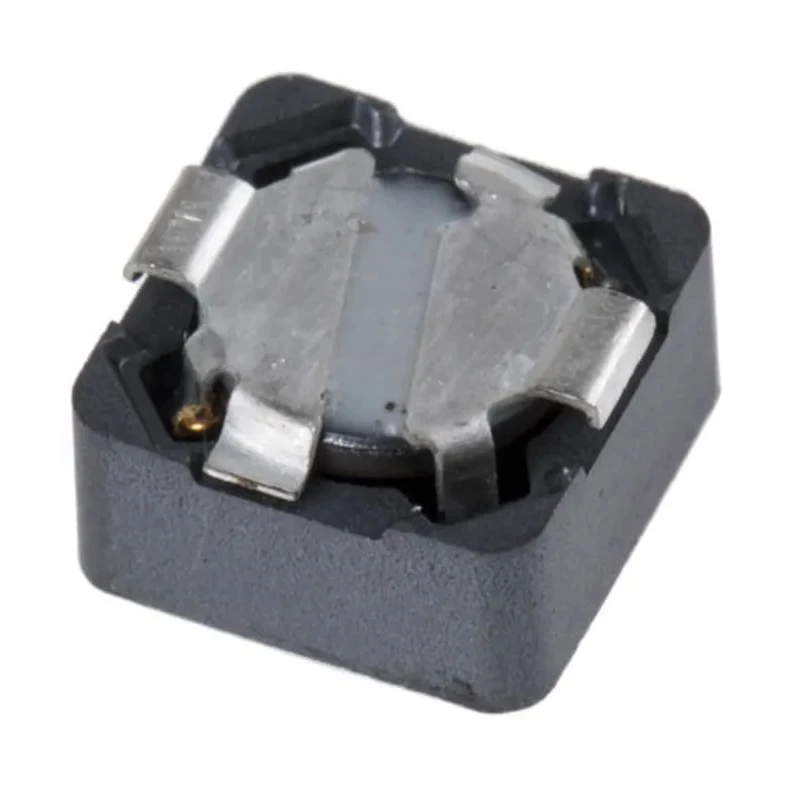

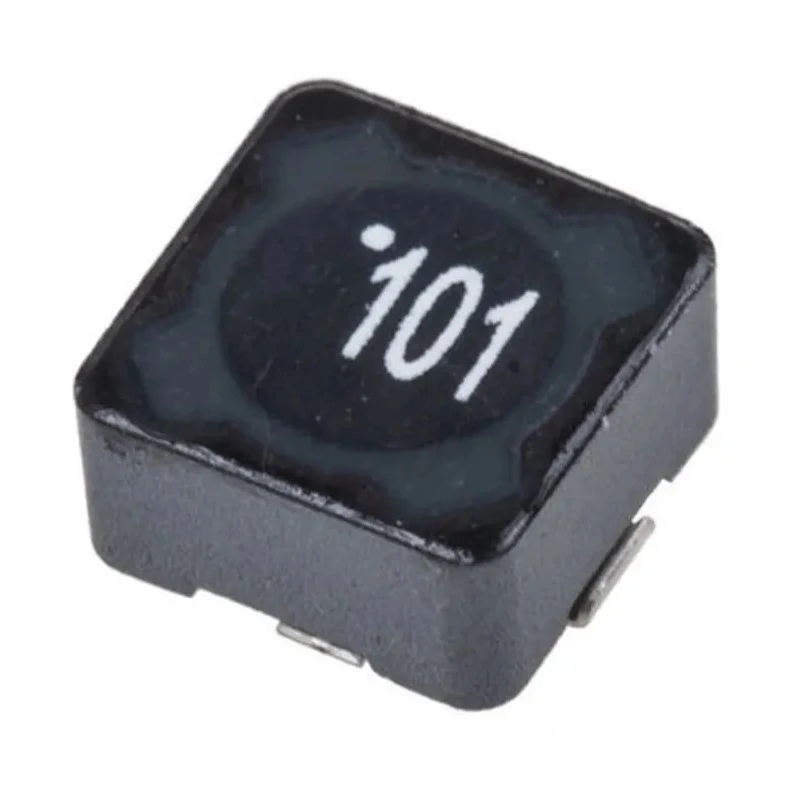

Wurth Elektronik WE-PD 7345 Shielded Wirewound Surface Mount Inductor with Ferrite Core 100μH ±20% 790mA Idc 74477720

Wurth Elektronik 74477720 WE-PD series shielded wirewound surface mount inductor offers a robust ferrite core design with an inductance of 100μH ±20% and a maximum DC current rating of 790mA. This surface mount inductor comes in a compact 7345 package size with physical dimensions of 7.3mm length, 7.3mm depth, and 4.5mm height, making it highly suitable for high-density electronic assemblies.

The WE-PD inductors are magnetically shielded, significantly reducing leakage fields to improve circuit performance. Its wirewound construction and ferrite core contribute to high storage capacity and current loading, suitable for demanding power applications. The device supports operation across temperatures from -40°C to 125°C, adhering to automotive AEC-Q200 standard, alongside JEDEC JS709B, REACH, RoHS, and IEC certifications.

Designed for high efficiency switching regulators (over 86%), integrated DC-DC converters, and graphic card circuits, this inductor ensures reliable performance with a maximum DC resistance of 610mΩ and a self-resonant frequency up to 7.5MHz. The product is supplied in tape & reel packaging for ease of automated assembly and features surface mount termination style.

Magnetically shielded to minimize electromagnetic interference. High current capacity suitable for switching regulator applications. Compliance with key automotive and industry standards for reliability. Compact form factor fits compact electronic devices.

Wirewound construction with ferrite core for stability and durability. Wide operating temperature range from -40°C to 125°C. Surface mount technology for modern PCB assembly processes. Packaging supports automated manufacturing and large scale production.

This Wurth Elektronik Surface Mount Inductor is ideal for industrial electronics, automotive electronics, telecommunications, and computing equipment. Its reliable construction and extensive certifications assure longevity and compliance with environmental regulations.
