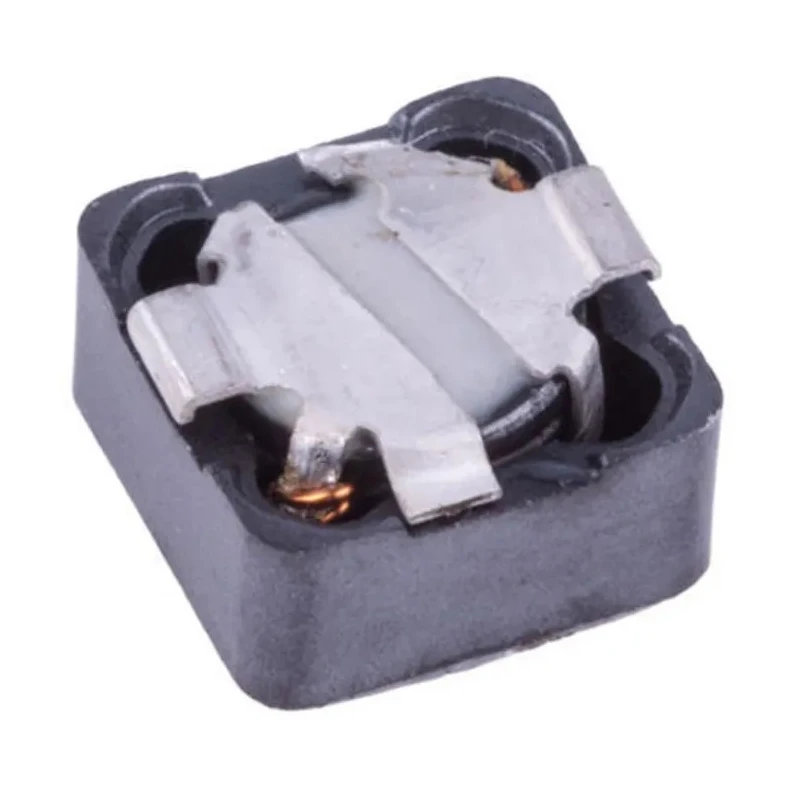

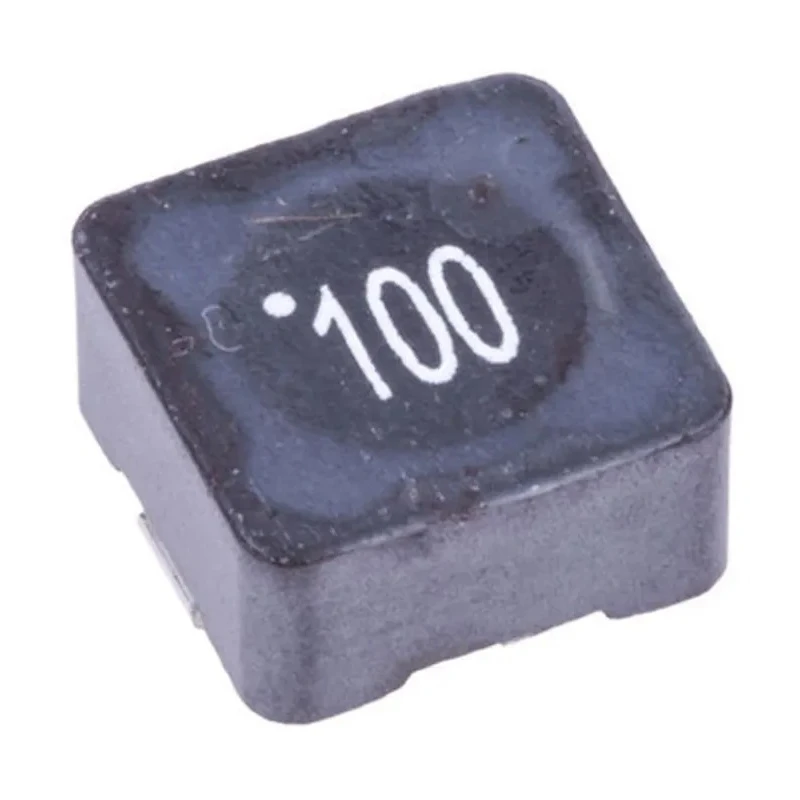

Wurth Elektronik WE-PD Shielded Wirewound Surface Mount Inductor with Ferrite Core 10 μH ±20 % 2 A Idc 7345 74477710
Specifications
| Country of Origin | China |
|---|---|
| Brand | Wurth Elektronik |
| Height | 4.5mm |
| Length | 7.3mm |
| Model | 74477710 |
| Depth | 7.3mm |
| Packaging | Tape & Reel |
| Series | WE-PD |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -40°C |
| Core Material | Ferrite |
| Inductance | 10μH |
| Standards/Approvals | IEC 62024-2-2020, JEDEC JS709B, REACH, RoHS |
| Package/Case | 7345 |
| Maximum DC Current | 2A |
| Pin Count | 2 |
| Maximum DC Resistance | 49mΩ |
| Inductance Tolerance | ±20 % |
| Termination Style | Surface Mount |
| Maximum Self Resonant Frequency | 26MHz |
| Inductor Construction | Wirewound |
| Automotive Standard | AEC-Q200 |
Key Features
- Constructed with a ferrite core to ensure magnetic shielding and low leakage fields.
- Features a compact 7345 package size with dimensions 7.3 mm length, 7.3 mm depth, and 4.5 mm height.
- Supports operating temperatures from -40°C to 125°C, suitable for harsh environments.
- Complies with automotive standard AEC-Q200 and international standards IEC 62024-2-2020, JEDEC JS709B, REACH, and RoHS.
- Surface mount termination style enables easy PCB integration and automated assembly.
- Designed for use in switching regulators, integrated DC-DC converters, and high-efficiency electronics.
- Maximum DC resistance is 49 mΩ ensuring efficient power management.
- Maximum self-resonant frequency of 26 MHz supports high-frequency applications.
Product Description
Wurth Elektronik 74477710 WE-PD series shielded wirewound Surface Mount Inductor offers a 10 μH inductance with ±20 % tolerance and a maximum DC current rating of 2 A. Featuring a ferrite core and magnetic shielding, the inductor exhibits low leakage fields, making it highly efficient for power applications.
Measuring 7.3 mm in length and depth with a height of 4.5 mm in the 7345 package size, it is designed for surface mounting with a tape & reel packaging format optimized for automated assembly lines.
This inductor is built to withstand operating temperatures from -40°C up to 125°C, compliant with automotive-grade AEC-Q200 requirements and international standards including IEC 62024-2-2020 and JEDEC JS709B, ensuring reliability and quality certification.
It provides a maximum DC resistance of 49 mΩ and a maximum self-resonant frequency of 26 MHz, making it suitable for switching regulators, integrated DC-DC converters, graphic cards, and other high-efficiency power electronic devices.
The wirewound construction ensures robust magnetic performance and high current loading capacity, suitable for demanding industrial, automotive, and electronics manufacturing applications.
The product is made in China and adheres to REACH and RoHS compliance for environmental safety. Constructed with ferrite core and magnetically shielded for low leakage. Compact 7345 surface mount package for space-saving PCB layout.
Wide operating temperature range and automotive certification. High current rating and low DC resistance for efficient power handling. Packaged on tape & reel for high-volume production processes. Explore more Wurth Elektronik inductors and components on EnvMart for your electronic manufacturing and design needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model has an inductance value of 10 μH with a tolerance of ±20%.
The maximum DC current rating for this inductor is 2 A.
The dimensions of the 7345 package are 7.3 mm in length, 7.3 mm in depth, and 4.5 mm in height.
The maximum DC resistance is 49 mΩ, ensuring efficient power management.
The maximum self-resonant frequency is 26 MHz, making it suitable for high-frequency applications.
It supports operating temperatures from -40°C to 125°C, suitable for harsh environments.
It complies with automotive standard AEC-Q200 and international standards IEC 62024-2-2020, JEDEC JS709B, REACH, and RoHS.
The inductor is packaged on tape & reel, which is optimized for automated assembly lines.
It features a wirewound construction with a ferrite core, providing magnetic shielding and low leakage fields.
This model is designed for use in switching regulators, integrated DC-DC converters, and high-efficiency electronics.
This inductor has a pin count of 2.
The product is manufactured in China.
