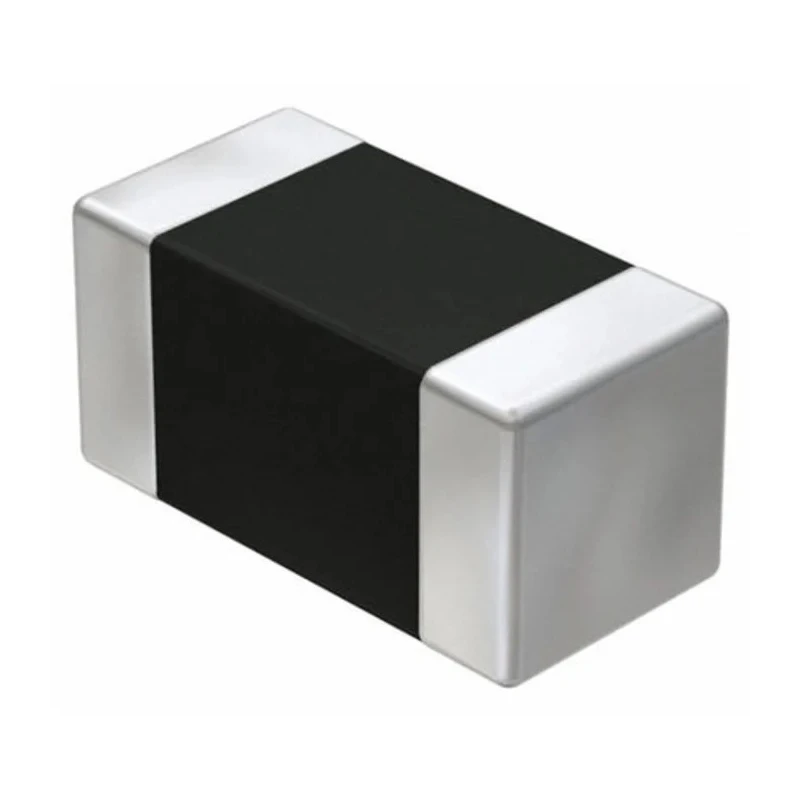

Wurth Elektronik 1206 Shielded Multilayer Surface Mount Inductor with Ferrite Core 3A IDC 742792113

Wurth Elektronik model 742792113 is a 1206 shielded multilayer surface mount inductor with a ferrite core designed for high-speed and high-current electronic applications. It supports a maximum DC current of 3A, making it suitable for power supply filtering, voltage decoupling, and signal integrity enhancement in compact electronic assemblies.

The component features a multilayer inductor construction with a ferrite core that provides excellent anti-electromagnetic interference (EMI) protection. Its low DC resistance of 30mΩ helps minimize power losses and heat generation. The robust shielded design allows it to be placed close to interference sources even in small form factor layouts such as 0402 size equivalents.

It complies with automotive industry standard AEC-Q200 and IPC/JEDEC J-STD-020D for quality and reliability under harsh operating conditions. The inductor is molded and terminated for surface mount technology and comes supplied on tape and reel to facilitate automated PCB assembly.

This Wurth Elektronik inductor is ideal for use in electronic circuits requiring stable inductance under varying temperatures from -55°C to 125°C. Typical applications include high speed interfaces such as USB 2.0 and IEEE 1394, control signal filtering (RS232, RS422), and DC/DC converter power supplies.

Compact 1206 package with low-profile height of 1.1mm. Maximum DC current rating of 3A for demanding power applications. Shielded multilayer design for EMI suppression. Molded construction with Ni-Sn electrode plating for reliable soldering.

Certified to meet automotive and industrial standards.

Originating from Taiwan, Province Of China, this inductor supports industrial, automotive, telecommunications, and power electronics markets. Its compact size, shielding, and current rating make it versatile for modern compact electronics requiring efficient power and signal conditioning.

EnvMart offers this Wurth Elektronik 742792113 model under the Surface Mount Inductor category, providing a reliable solution for engineers and manufacturers requiring high-quality multilayer inductors.
