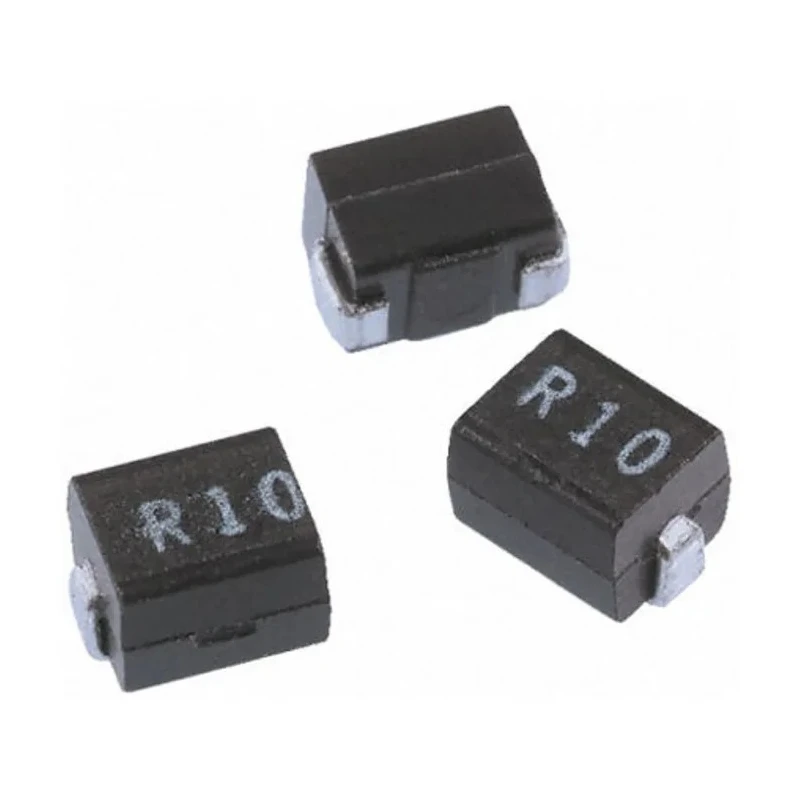

Wurth Elektronik WE-GF 1210 Shielded Wirewound Surface Mount Inductor with Ferrite Core 22 μH ±10% 110 mA Idc Q:30 744764122

Wurth Elektronik 744764122 is a WE-GF series high frequency shielded wirewound surface mount inductor designed for advanced electronics applications requiring precision and reliability. Featuring a 22 μH inductance with ±10% tolerance, it supports up to 110 mA maximum DC current with a quality factor (Q) of 30. The component employs a ferrite core for superior magnetic shielding, reducing electromagnetic interference in delicate high frequency circuits.

The inductor comes in a compact 1210 package with the dimensions of 2.9 mm length, 2.5 mm depth, and 2.2 mm height, making it suitable for space-constrained surface mount technology (SMT) PCB designs. It operates reliably in challenging temperature conditions, from -40°C minimum to +105°C maximum, supporting a wide range of industrial and commercial electronic devices.

Its wirewound, moulded construction ensures mechanical robustness and stable electrical characteristics. The component's maximum DC resistance of 3.7 Ω and self-resonant frequency of 25 MHz make it ideal for applications such as high frequency amplifiers, oscillators, transponders, LC filter circuits, and adapter networks. The surface mount termination style enhances ease of assembly on automated production lines, with tape and reel packaging provided.

This inductor is manufactured in China under Wurth Elektronik's WE-GF series, recognized for quality and performance in the electronics industry. It does not bear any automotive or specialized approvals but is well suited for various electronic circuits including HF circuits such as tuners.

The inductor has a compact 1210 package size and ferrite core for effective shielding. Maximum DC current rating of 110 mA supports low-power applications. Operating temperature ranges from -40°C to 105°C, suitable for harsh environments.

It features a high quality factor (Q) of 30 ensuring low losses at resonant frequency. Tape and reel packaging facilitates automated SMT assembly processes. Surface mount termination style enables easy PCB mounting. Maximum DC resistance of 3.7 Ω contributes to stable performance.

Wirewound and moulded construction offers mechanical durability. Maximum self-resonant frequency is 25 MHz for RF applications. Ideal for use in high frequency amplifiers, oscillators, transponders, LC filter circuits, and tuners.

These characteristics make the Wurth Elektronik 744764122 a reliable choice for engineers seeking precise and rugged inductors in demanding electronic assembly environments. Browse the wide range of surface mount inductors and Electronic Components on EnvMart for all your project needs.
