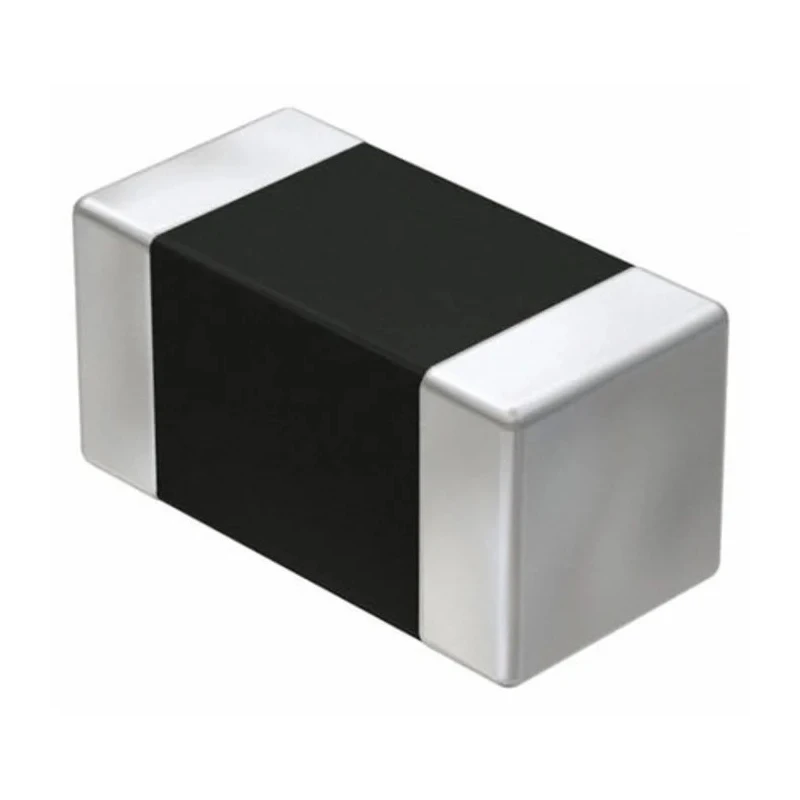

Wurth Elektronik Multilayer Surface Mount Inductor WE-CBF 0805 Shielded 3A IDC 742792023
Specifications
| Country of Origin | Taiwan |
|---|---|
| Brand | Wurth Elektronik |
| Height | 0.9mm |
| Length | 2mm |
| Depth | 1.2mm |
| Packaging | Tape & Reel |
| Series | WE-CBF |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -55°C |
| Core Material | Ferrite |
| Standards/Approvals | RoHS, REACH |
| Package/Case | 0805 |
| Maximum DC Current | 3A |
| Pin Count | 2 |
| Maximum DC Resistance | 30mΩ |
| Termination Style | Surface Mount |
| Inductor Construction | Multilayer |
| Automotive Standard | AEC-Q200 |
| High Current | Current supply, DC/DC converter etc |
| Wide Band | Control signals, RS232, RS422, DC/DC converter, etc |
Key Features
- Compact 0805 package measuring 2mm length, 0.9mm height, and 1.2mm depth.
- Shielded multilayer construction ensuring excellent anti-EMI properties.
- High-quality ferrite core material for stable inductance and low DC resistance of 30mΩ.
- Designed for reflow soldering with Ni-Sn electrodes and tape and reel packaging.
- Meets automotive standard AEC-Q200 and RoHS, REACH compliance.
- Operates reliably from -55°C up to 125°C maximum temperature.
- Ideal for data line filtering, voltage decoupling, USB 2.0, IEEE 1394, LVDS, RS232, RS422, and DC/DC converters.
- Supports high current applications up to 3A with low electrical losses.
Product Description
Wurth Elektronik 742792023 is a multilayer Surface Mount Inductor from the WE-CBF series with a shielded 0805 package size. Featuring a ferrite core and multilayer construction, this inductor provides excellent electromagnetic interference (EMI) suppression and low DC resistance of 30mΩ, ensuring efficient current conduction up to 3 amps.
With dimensions of 2mm length, 0.9mm height, and 1.2mm depth, it is suitable for compact PCB designs. The component is moulded and terminated with reliable nickel-tin electrodes, packaged on tape and reel for automated assembly processes.
It conforms to the automotive standard AEC-Q200 and environmental regulations including RoHS and REACH, guaranteeing high reliability under varied operating conditions ranging from -55°C to 125°C.
This inductor is optimized for high-speed and wide-band applications such as USB 2.0, IEEE 1394, LVDS transmission lines, control signals like RS232 and RS422, as well as DC/DC converter circuits. Its shielding effectively reduces EMI, making it ideal for sensitive electronic applications.
Compact 0805 footprint fits densely packed PCBs. Shielded multilayer design reduces EMI. High maximum DC current of 3A supports demanding power applications. Ferrite core ensures stable inductance and low losses. Automotive quality with AEC-Q200 certification.
Operates over a wide temperature range from -55°C to 125°C. RoHS and REACH compliant for environmental safety. Supplied in tape and reel for efficient manufacturing. This product is suitable for use in industrial electronics manufacturing, telecommunications hardware, automotive electronics, and consumer electronic device assemblies.
Explore more multilayer inductors and related electronic components in the Electronics Components section at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum DC current rating for this model is 3A, making it suitable for high current applications.
This inductor has dimensions of 2mm in length, 0.9mm in height, and 1.2mm in depth, fitting compact PCB designs.
It operates reliably within a temperature range of -55°C to 125°C, suitable for various environmental conditions.
The core material used in this inductor is ferrite, which contributes to its stable inductance and low DC resistance.
The DC resistance of this inductor is 30mΩ, which helps in minimizing electrical losses during operation.
This inductor meets the automotive standard AEC-Q200 and is compliant with RoHS and REACH regulations.
It is packaged on tape and reel, which facilitates automated assembly processes in manufacturing.
This model is ideal for applications such as data line filtering, voltage decoupling, USB 2.0, and DC/DC converters.
The inductor features a multilayer construction, which enhances its performance in electromagnetic interference (EMI) suppression.
The termination style for this model is surface mount, allowing for easy integration into PCB layouts.
This inductor has a pin count of 2, which is typical for surface mount components.
This inductor belongs to the WE-CBF series, which is known for its shielded multilayer design.
