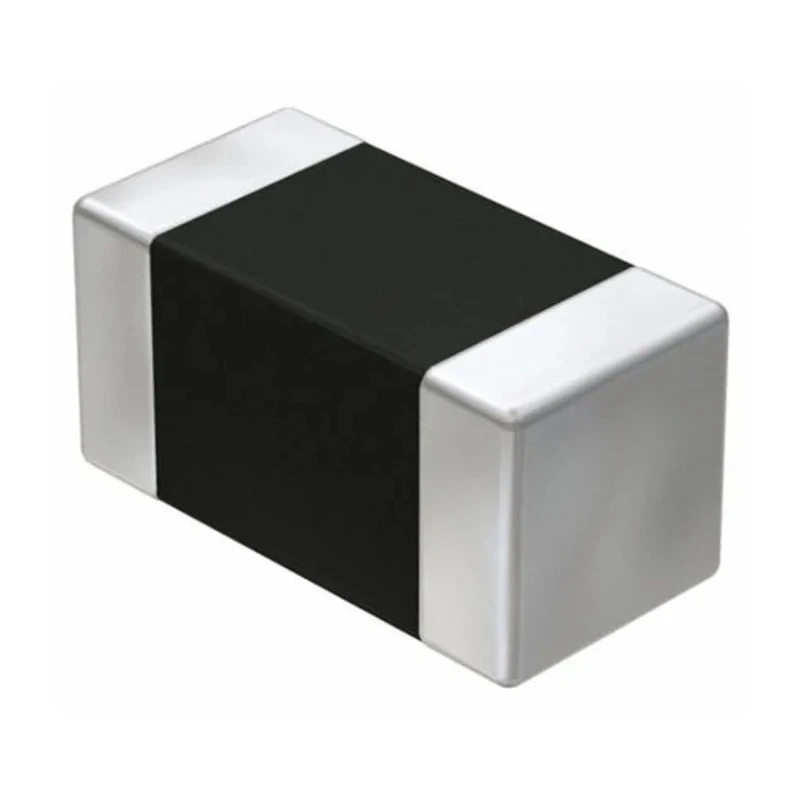

Wurth Elektronik WE-CBF 0805 Shielded Multilayer Surface Mount Inductor Ferrite Core 3A IDC 742792023

Wurth Elektronik 742792023 is a high-speed multilayer shielded Surface Mount Inductor in an 0805 package featuring a ferrite core rated for a maximum DC current of 3A. Designed for use in electronic components, this inductor offers excellent anti-electromagnetic interference properties and low DC resistance of 30mΩ, enhancing overall circuit efficiency.

The multilayer construction and shielded design enable placement close to interference sources in compact PCB layouts, including smallest sizes such as 0402, with maximum impedance up to 1000Ω. The product meets AEC-Q200 automotive standards, making it suitable for high-reliability automotive and industrial applications operating within a temperature range from -55°C to 125°C.

This component is ideal for applications such as data line filtering, voltage decoupling, and current supply in USB 2.0, IEEE 1394, LVDS, RS232, RS422 protocols and DC/DC converters. The reliable nickel-tin (Ni-Sn) electrodes provide robust electrical connections and support reflow soldering processes, ensuring compatibility with automated manufacturing.

Use cases span industrial electronics, automotive systems, communication interfaces, and power management circuits where compactness, shielding, and high current capability are critical. The inductor comes supplied in tape and reel packaging, facilitating efficient automated assembly and inventory management.

Compact 0805 surface mount package with ferrite core construction. Shielded multilayer design with low DC resistance of 30mΩ. Supports a maximum DC current rating of 3A. Meets AEC-Q200 automotive reliability standard. Operating temperature range: -55°C to 125°C.

Ideal for high-speed data line filtering and voltage decoupling. Suitable for USB 2.0, IEEE 1394, LVDS, RS232, RS422 applications. Recommended for reflow soldering with tape and reel packaging. Ferrite core ensures excellent EMI suppression and signal integrity.

Applications include industrial, automotive, telecommunication and power supply circuits.

This Wurth Elektronik WE-CBF series inductor offers a trusted solution for engineers designing compact, high-performance electronic circuits requiring robust EMI shielding and stable current handling. Explore more electronics components and accessories on EnvMart for your industrial and laboratory requirements.
