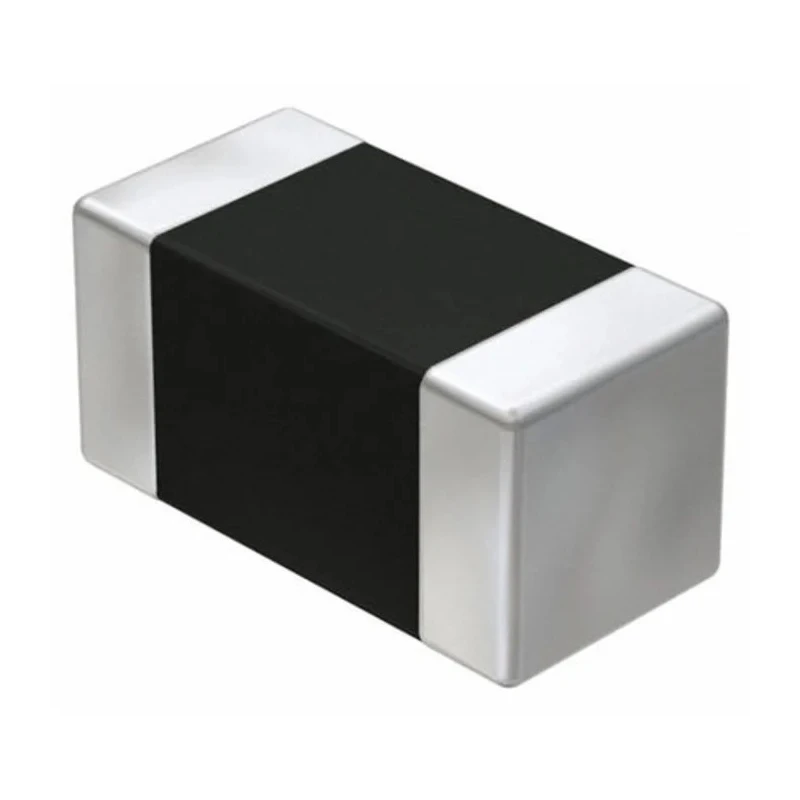

Wurth Elektronik WE-CBF 0805 Shielded Multilayer Surface Mount Inductor with Ferrite Core 200mA IDC 74279205
Specifications
| Country of Origin | Taiwan |
|---|---|
| Brand | Wurth Elektronik |
| Height | 0.9mm |
| Length | 2mm |
| Model | 74279205 |
| Depth | 1.2mm |
| Packaging | Tape & Reel |
| Series | WE-CBF |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -55°C |
| Core Material | Ferrite |
| Standards/Approvals | IEC 60286-3:2013 |
| Package/Case | 0805 |
| Maximum DC Current | 200mA |
| Pin Count | 2 |
| Maximum DC Resistance | 450mΩ |
| Termination Style | Surface Mount |
| Inductor Construction | Multilayer |
| Automotive Standard | AEC-Q200 |
| High Current | Current supply, DC/DC converter etc |
| Wide Band | Control signals, RS232, RS422, DC/DC converter, etc |
| Standards/Approvals IEC 60286-3 | 2013 |
Key Features
- Supports maximum DC current up to 200mA for reliable performance.
- Compact 0805 package case ensuring space-saving mounting on PCBs.
- Constructed with a multilayer ferrite core exhibiting shielding to reduce electromagnetic interference.
- Rated for an operating temperature range from -55°C to 125°C for robust application tolerance.
- Automotive standard AEC-Q200 qualified ensuring high reliability in automotive and industrial environments.
- Maximum DC resistance specified at 450mΩ to minimize power loss.
- Ideal for high-speed data line filtering such as USB 2.0 and IEEE 1394 interfaces.
- Recommended for voltage de-coupling and use in DC/DC converters and control signal lines like RS232 and RS422.
Product Description
Wurth Elektronik 74279205 WE-CBF 0805 shielded multilayer surface mount inductor features a ferrite core and multilayer construction optimized for low DC resistance and excellent EMI suppression. This compact 2mm x 1.2mm x 0.9mm device supports maximum DC currents of 200mA and adheres to automotive AEC-Q200 standards, making it suitable for automotive and industrial applications.
Its shielding capability and low resistance make it ideal for data line filtering applications such as USB 2.0, IEEE 1394, and LVDS, as well as wide band uses like control signals (RS232, RS422) and DC/DC converters. The inductor's robust temperature range from -55°C to 125°C ensures performance stability across harsh operating conditions.
Constructed with nickel-tin electrodes and designed for surface mount termination, it is recommended for reflow soldering processes. Its tape and reel packaging format supports automated high-volume manufacturing.
Applications include high-speed communication interfaces, wide band control signal conditioning, and high current supply filtering often found in industrial electronics, automotive systems, and power management modules.
Supports maximum DC current up to 200mA with low DC resistance of 450mΩ. Compact 0805 package ensuring space efficiency for modern PCB designs. Shielded multilayer ferrite construction minimizes EMI and optimizes signal integrity.
Wide operating temperature range of -55°C to 125°C ensuring durability in demanding environments. AEC-Q200 automotive standard qualification promoting suitability for automotive applications. Ideal for USB 2.0, IEEE 1394 high-speed data filtering, and DC/DC converter voltage decoupling.
Manufactured in Taiwan, Province of China following IEC 60286-3:2013 standards.
Choose from a trusted brand and model with proven reliability for your industrial, automotive, and electronics manufacturing requirements. Explore more high-quality Surface Mount Inductors on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum DC current rating for this model is 200mA.
It is rated for an operating temperature range from -55°C to 125°C.
This unit has dimensions of 2mm in length, 1.2mm in depth, and 0.9mm in height.
The inductor is constructed with a ferrite core.
Yes, it is qualified under the AEC-Q200 automotive standard, making it suitable for automotive applications.
The maximum DC resistance specified for this inductor is 450mΩ.
It is packaged in a tape and reel format, which supports automated high-volume manufacturing.
It is ideal for high-speed data line filtering, such as USB 2.0 and IEEE 1394, as well as for voltage decoupling in DC/DC converters and control signal lines like RS232 and RS422.
The termination style is surface mount, designed for reflow soldering processes.
This model complies with the IEC 60286-3:2013 standards.
It features a multilayer construction optimized for low DC resistance and excellent EMI suppression.
This inductor has a pin count of 2.
