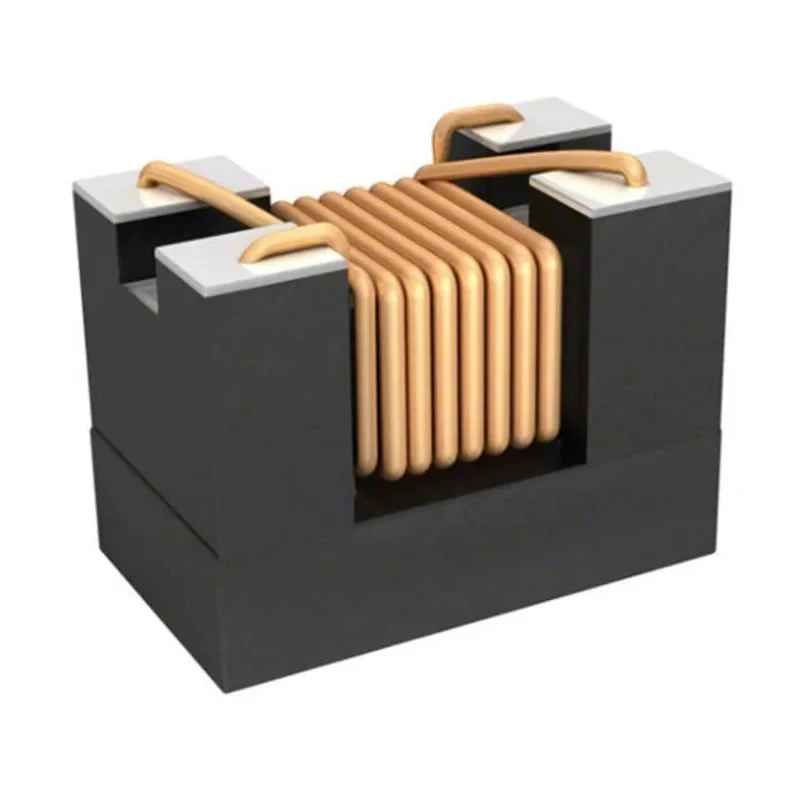

Wurth Elektronik WE-CNSW SMD 1206 Wirewound Surface Mount Inductor with Ferrite Core 0.11 μH Dual ±25 % 370 mA 744232090

Wurth Elektronik 744232090 represents the WE-CNSW SMD Series 1206 Wirewound Surface Mount Inductor featuring a ferrite core and dual inductor construction. This component offers an inductance of 0.11 μH with a maximum DC current rating of 370 mA, making it suitable for electronic circuits requiring effective common mode noise suppression.

Its compact surface mount 1206 package with precise dimensions of 3.2 mm length, 1.8 mm height, and 1.6 mm depth allows seamless integration into modern printed circuit boards. The part is designed with 4 pins and packaged in tape and reel format to support high-volume automated assembly.

The inductor supports operating temperatures ranging from -40°C to 125°C, ensuring stability in harsh environments. With an inductance tolerance of ±25 % and maximum DC resistance of 300 mΩ, it balances performance with efficiency in consumer, automotive, and industrial electronics applications.

Certified to RoHS and REACH standards with an automotive AEC-Q200 rating, this inductor is ideal for use in USB 2.0, Firewire, LVDS, LAN, and other high-speed data line circuits where common mode EMI noise needs suppression at high frequencies. The ferrite core and winding symmetry optimize high-frequency performance and signal integrity.

The WE-CNSW SMD 744232090 inductor is manufactured in China and builds upon Wurth Elektronik's reputation for quality passive components used extensively in electronics manufacturing, automotive systems, and industrial instruments.

Features a ferrite core for efficient magnetic performance. Packaged in a 1206 surface mount case suitable for automated placement. Inductance tolerance of ±25 % ensures acceptable variation in circuit design. Maximum DC resistance is 300 mΩ supporting low power loss.

Operates reliably between -40°C and 125°C temperature range. Complies with RoHS and REACH environmental standards. AEC-Q200 automotive standard certified for high reliability applications. Designed with 4 pins and dual inductor construction for common mode noise suppression.

Supplied in tape and reel packaging facilitating efficient manufacturing processes. Compact dimensions of 3.2mm length, 1.8mm height, and 1.6mm depth. Explore more components and passive inductors in the Electronics Components category on EnvMart to find compatible parts for your designs and manufacturing needs.
