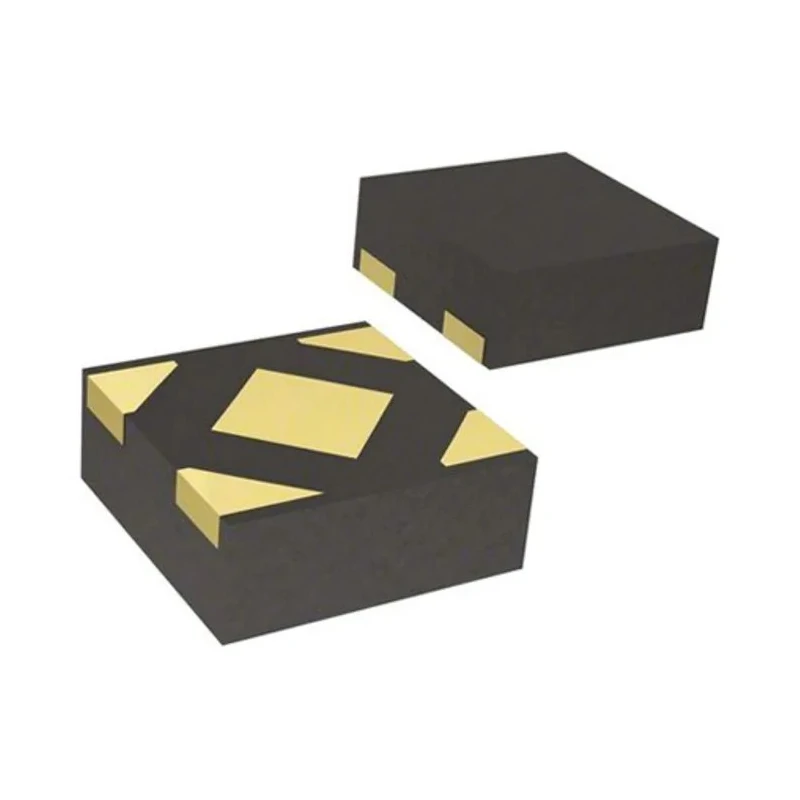

onsemi Voltage Regulator 5.5V UDFN 4-Pin NCP114AMX330TBG
Specifications
| Country of Origin | India |
|---|---|
| Brand | onsemi |
| Height | 550μm |
| Length | 1mm |
| Model | NCP114AMX330TBG |
| Width | 1mm |
| Mount Type | Surface |
| Series | NCP114 |
| Maximum Operating Temperature | 150°C |
| Package Type | UDFN |
| Polarity | Positive |
| Maximum Input Voltage | 5.5V |
| Quiescent Current | 50μA |
| Minimum Input Voltage | 1.7V |
| Pin Count | 4 |
Key Features
- Operates with input voltage range from 1.7V to 5.5V for versatile power supply compatibility.
- Low quiescent current of 50 μA to conserve battery life in portable devices.
- Compact surface mount UDFN package with a 1 mm length and 1 mm width, and 550 μm height.
- Supports a positive polarity with a 4-pin configuration suitable for space-constrained applications.
- Designed for maximum operating temperature up to 150°C to ensure reliable performance.
- Part of the NCP114 series, offering robustness in power management circuits.
- Low dropout (LDO) linear operation ensures stable voltage regulation with fast transient response.
- Ideal for industrial, consumer electronics, telecommunications, and embedded system applications.
Product Description
onsemi NCP114AMX330TBG is a low dropout (LDO) linear voltage regulator designed for efficient voltage regulation in a compact 4-pin UDFN surface mount package. The regulator offers a maximum input voltage of 5.5V and a quiescent current of only 50 μA, making it highly suitable for battery-powered and low power consumption electronic devices.
This device operates over a wide input voltage range from 1.7V to 5.5V and can maintain stable output voltages with excellent transient response. Its positive polarity and 4-pin configuration in a compact 1mm x 1mm footprint allow easy integration in space-critical designs.
The maximum operating temperature of 150°C makes it reliable for various industrial and commercial applications, including consumer electronics, telecommunications equipment, and embedded systems.
The NCP114 series from onsemi is known for low noise, high power supply ripple rejection, and efficient voltage regulation, catering to a diverse set of power management needs. Operates with input voltage range from 1.7V to 5.5V for versatile power supply compatibility.
Low quiescent current of 50 μA to conserve battery life in portable devices. Compact surface mount UDFN package with dimensions 1 mm x 1 mm x 0.55 mm. Positive polarity with 4-pin design for easy PCB layout integration. High maximum operating temperature supports demanding industrial environments.
Low dropout linear regulation ensuring minimal voltage differential. Designed for use in electrical and electronic applications requiring stable voltage outputs.
This voltage regulator is ideally suited for design engineers working in industrial, laboratory, telecommunications, and consumer electronics sectors. It supports creating energy-efficient and compact electronic solutions.Explore more Voltage Regulators and power management ICs in EnvMart's comprehensive electronics category for the latest components to optimize your designs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model operates with an input voltage range from 1.7V to 5.5V, allowing for versatile power supply compatibility.
The NCP114AMX330TBG has a low quiescent current of 50 μA, which helps conserve battery life in portable devices.
The compact surface mount UDFN package measures 1 mm in length, 1 mm in width, and has a height of 550 μm.
It is designed to operate at a maximum temperature of 150°C, making it suitable for various industrial applications.
The NCP114AMX330TBG supports positive polarity, which is typical for many voltage regulation applications.
This voltage regulator features a 4-pin configuration, suitable for space-constrained applications.
The NCP114AMX330TBG uses a surface mount type for easy integration onto PCBs.
It is a low dropout (LDO) linear regulator, ensuring stable voltage regulation with minimal voltage differential.
This voltage regulator is ideal for industrial, consumer electronics, telecommunications, and embedded system applications.
The NCP114 series is known for its low noise and high power supply ripple rejection, catering to diverse power management needs.
The minimum input voltage for this model is 1.7V, which is essential for its operation.
This product is manufactured in India, indicating its origin for buyers.
