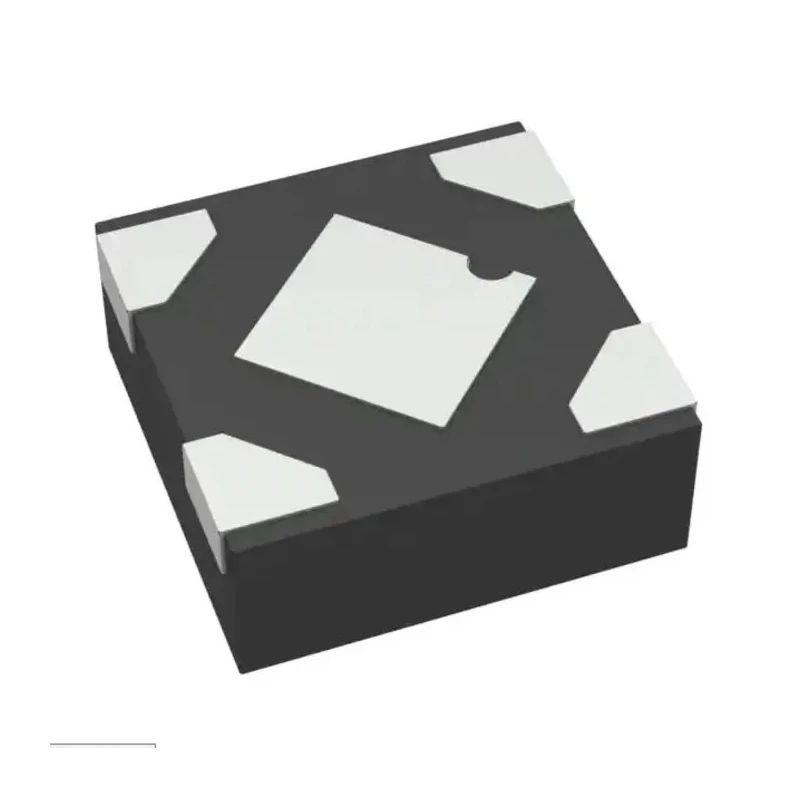

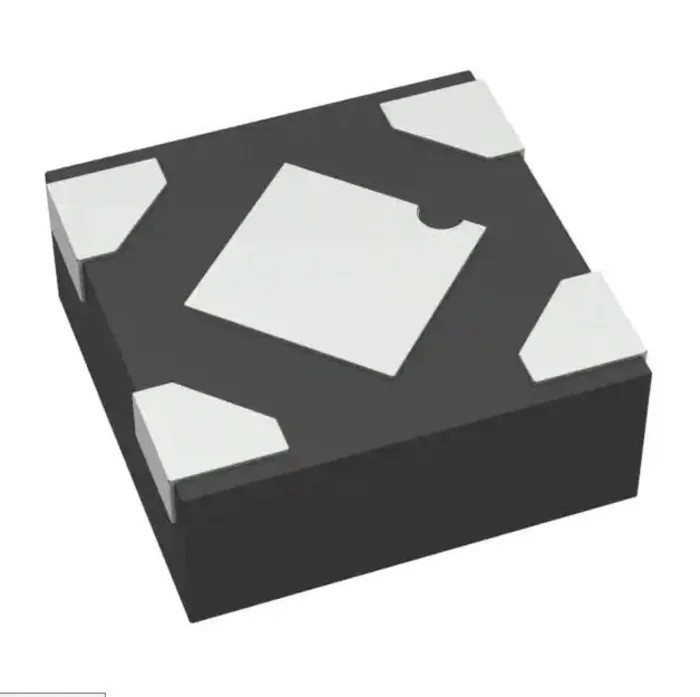

onsemi Voltage Regulator 5.5V XDFN 4-Pin NCP167BMX330TBG
Specifications
| Country of Origin | Thailand |
|---|---|
| Brand | onsemi |
| Height | 380μm |
| Length | 1mm |
| Model | NCP167BMX330TBG |
| Width | 1mm |
| Mount Type | Surface |
| Series | NCP167 |
| Maximum Operating Temperature | 150°C |
| Package Type | XDFN |
| Polarity | Positive |
| Maximum Input Voltage | 5.5V |
| Quiescent Current | 18μA |
| Minimum Input Voltage | 1.9V |
| Pin Count | 4 |
Key Features
- This device provides a maximum output current of 700 mA.
- It operates with an input voltage range between 1.9 V and 5.5 V.
- The regulator features ultra-low quiescent current of 12 μA and very low dropout voltage of 210 mV at 700 mA.
- Highly suitable for noise-sensitive applications and power-sensitive devices such as Wi-Fi modules.
- Compact XDFN 4-pin package with dimensions 1mm × 1mm × 380 μm for space-constrained designs.
- Excellent power supply rejection ratio (PSRR) of 85 dB at 1 kHz.
- Designed for improved efficiency during light load conditions and low power dissipation at full load.
- Applications include cameras, smartphones, tablets, wireless routers, and RF modules.
Product Description
onsemi NCP167BMX330TBG Voltage Regulator 5.5V XDFN 4-Pin is an ultra-small LDO regulator designed for modern RF and analog circuit applications requiring low noise and high power supply rejection.
Featuring a 700 mA output current capability, this voltage regulator operates efficiently within an input voltage range of 1.9 V to 5.5 V, making it suitable for battery-powered devices and power-sensitive modules.
The device exhibits ultra-low quiescent current, as low as 12 μA, contributing to extended battery life in portable applications. Its very low dropout voltage of 210 mV at full load ensures stable voltage regulation.
Packaged in a compact XDFN 4-pin form factor measuring 1 mm by 1 mm with a height of 380 μm, it is ideal for highly space-constrained designs. Its ultra-high PSRR of 85 dB at 1 kHz and ultra-low output noise (8.5 μV RMS) provide excellent performance in noise-sensitive environments.
Designed to support applications such as analog-to-digital converters, audio codecs, camera modules, RF devices including WiGig power supplies, and communication equipment like smartphones, tablets, and wireless routers, this regulator is a versatile solution.
The device supports operation up to a maximum temperature of 150°C ensuring robustness in demanding industrial and consumer electronics environments. This regulator includes ultra-low quiescent current, which reduces power consumption during standby.
Low dropout voltage enhances performance and efficiency for power-sensitive applications. Highly compact XDFN package enables minimum PCB footprint usage. Excellent PSRR and low output noise improve signal integrity in sensitive analog environments.
Wide operating voltage range supports diverse battery-powered and analog applications. Suitable for a variety of end products including cameras, smartphones, and wireless routers. Designed and manufactured to high temperature and reliability standards.
Choose onsemi NCP167BMX330TBG for efficient, low-noise power regulation in compact electronic designs. Browse the Electronics & Electricals category at EnvMart to discover more power management ICs and Voltage Regulators.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum output current of this voltage regulator is 700 mA.
It operates with an input voltage range between 1.9 V and 5.5 V.
The regulator features an ultra-low quiescent current of 12 μA.
The dimensions of the XDFN 4-pin package are 1 mm × 1 mm with a height of 380 μm.
The dropout voltage is 210 mV at 700 mA.
It has an excellent PSRR of 85 dB at 1 kHz.
The maximum operating temperature is 150°C.
This model uses surface mounting.
It is suitable for applications such as cameras, smartphones, tablets, and wireless routers.
The polarity of this voltage regulator is positive.
This voltage regulator has 4 pins.
It belongs to the NCP167 series.
