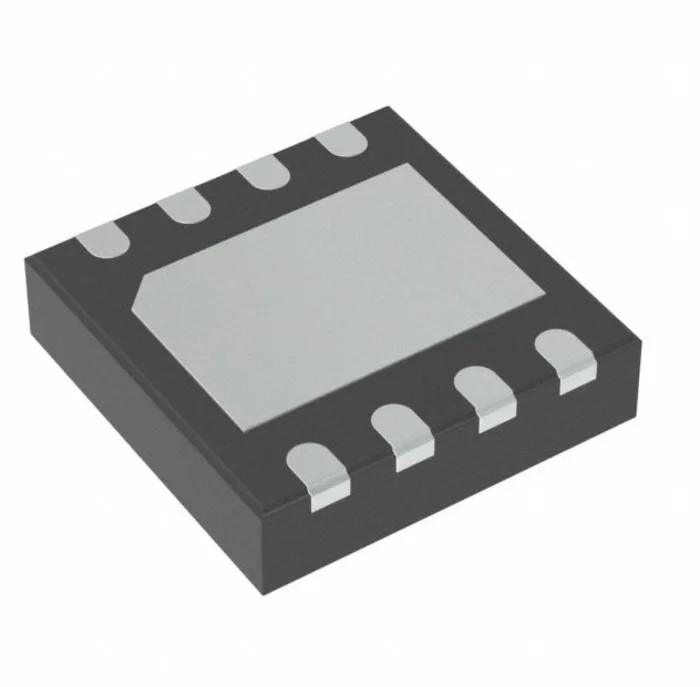

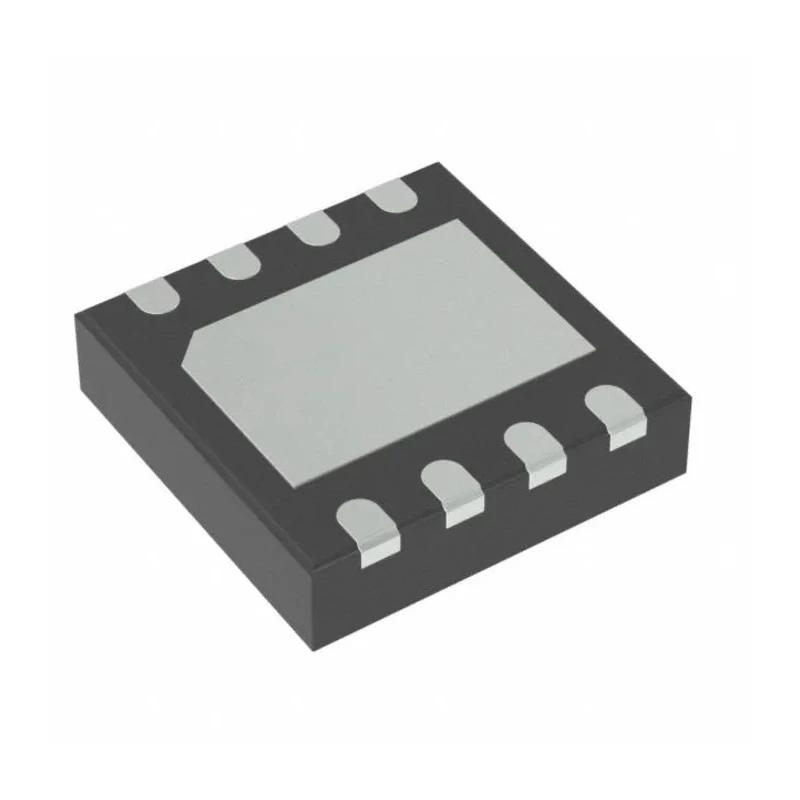

onsemi Voltage Regulator 5.5V DFNW 8-Pin NCV8165ML330TCG
Specifications
| Country of Origin | Thailand |
|---|---|
| Brand | onsemi |
| Height | 950μm |
| Length | 3.1mm |
| Model | NCV8165ML330TCG |
| Width | 3.1mm |
| Mount Type | Surface |
| Series | NCV8165 |
| Maximum Operating Temperature | 150°C |
| Package Type | DFNW |
| Polarity | Positive |
| Maximum Input Voltage | 5.5V |
| Quiescent Current | 18μA |
| Minimum Input Voltage | 1.9V |
| Pin Count | 8 |
| Automotive Standard | AEC-Q100 |
Key Features
- Capable of supplying 500 mA output current for power-sensitive applications.
- Features ultra-high PSRR of 85dB at 1 kHz and ultra-low output noise of 8.5 μVRMS.
- Operates within an input voltage range of 1.9V to 5.5V with very low dropout voltage of 200mV at 500mA.
- Designed for low quiescent current of 12 μA, enabling excellent battery-powered device efficiency.
- Compact DFNW8 package measures 3.1mm x 3.1mm x 0.95mm suitable for surface mounting.
- Suitable for noise-sensitive applications such as Wi-Fi modules and RF modules.
- Meets automotive standard AEC-Q100 and maximum operating temperature of 150°C.
- Ideal for applications in automotive equipment, infotainment, telematics, instrumentation, industrial smart meters, and factory automation.
Product Description
onsemi NCV8165ML330TCG Voltage Regulator 5.5V DFNW 8-Pin is an advanced low dropout (LDO) regulator designed for industrial and automotive applications requiring stable low-noise power delivery and efficient performance.
This device supports a maximum output current of 500 mA and operates within an input voltage range of 1.9V to 5.5V, providing excellent line and load transient response. The regulator achieves ultra high power supply rejection ratio (PSRR) of 85dB at 1 kHz and 63dB at 100 kHz, alongside ultra low output noise of 8.5 μVRMS, making it suitable for sensitive RF and analog circuitry.
With an ultra-low quiescent current of only 12 μA, the NCV8165 is well-suited for battery-powered and low power dissipation applications such as Wi-Fi modules, camera modules, audio codecs, and other portable electronics. The device is available in a compact DFNW8 surface mount package measuring 3.1 mm x 3.1 mm x 0.95 mm, optimized for space-constrained designs.
The voltage regulator meets rigorous automotive quality compliance including the AEC-Q100 standard and can operate reliably up to a maximum junction temperature of 150°C. Applications span across automotive infotainment, body control modules, telematics, instrument clusters, factory automation, smart meters, and general industrial uses.
The regulator is designed to work optimally with a 1 μF input and 1 μF output ceramic capacitor to guarantee stability and excellent transient response. It offers improved efficiency during light load conditions and provides very low dropout voltage of approximately 200 mV at full load current.
Capable of supplying 500 mA output current for power-sensitive applications. Ultra-high PSRR and ultra-low noise for sensitive electronics. Low quiescent current optimizes battery life. Compact DFNW8 surface mount package.
Compliance with automotive standard AEC-Q100. Wide operating input voltage range: 1.9V to 5.5V. Maximum operating temperature up to 150°C. Suitable for automotive and industrial applications.
This product is ideal for engineers designing low noise power supplies for RF systems, sensor modules, instrumentation, and battery-powered equipment. Explore the extensive range of Voltage Regulators at EnvMart for your power management solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model is capable of supplying a maximum output current of 500 mA.
It operates within an input voltage range of 1.9V to 5.5V.
The dropout voltage is approximately 200 mV at 500 mA output current.
The quiescent current is 12 μA, which helps optimize battery life in low power applications.
The package measures 3.1 mm x 3.1 mm x 0.95 mm.
It meets the AEC-Q100 automotive standard, ensuring compliance with automotive quality requirements.
The maximum operating temperature is 150°C.
The PSRR is 85 dB at 1 kHz, making it suitable for noise-sensitive applications.
It is suitable for automotive infotainment, telematics, instrumentation, and industrial applications.
This unit is designed for surface mounting.
It is recommended to use a 1 μF input and a 1 μF output ceramic capacitor for stability and excellent transient response.
The output noise level is ultra-low at 8.5 μVRMS, making it suitable for sensitive electronics.
