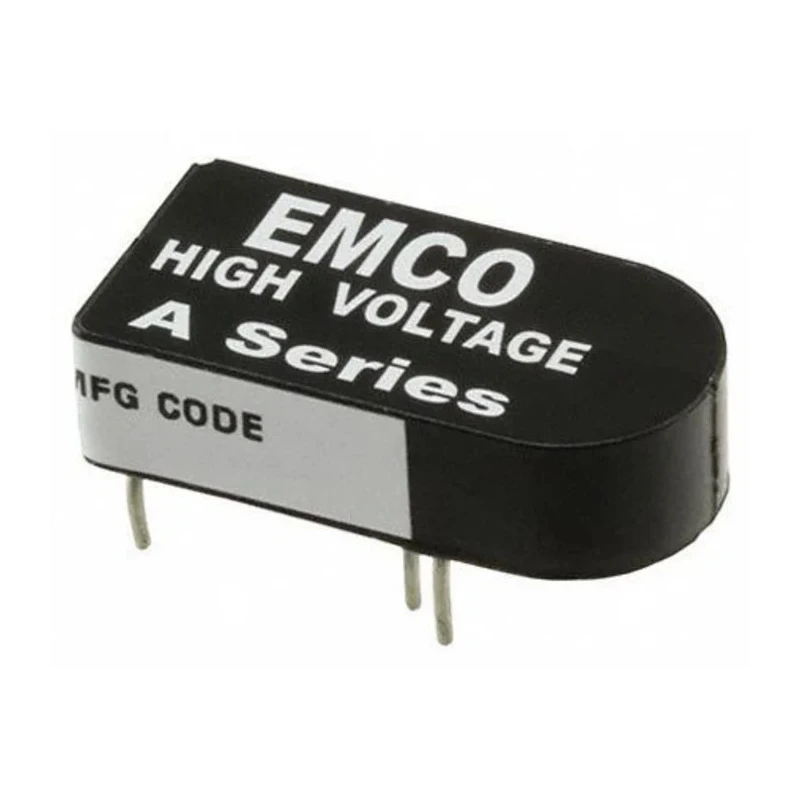

XP Power Isolated DC-DC Converter 800V DC Output, 1.25mA, 5V DC Input, Through Hole Mount, 1W Power, Operating Temp A08P-5
Specifications
| Country of Origin | United States |
|---|---|
| Voltage | Converters / DC-DC Converters XP Power A DC/DC Converter, 800V dc/ 1 |
| Brand | XP Power |
| Length | 23.37mm |
| Model | A08P-5 |
| Depth | 6.35mm |
| Gross Weight | 5.7g |
| Width | 11.43mm |
| Mount Type | Through Hole |
| Series | A |
| Maximum Operating Temperature | 75°C |
| Minimum Operating Temperature | -25°C |
| MTBF | 1862000h |
| Number of outputs | 1 |
| Ripple and Noise | 1% Pk-Pk |
| Maximum Output Power | 1W |
| Maximum Input Voltage | 5V dc |
| Minimum Input Voltage | 0V dc |
| Output Voltage 1 | 800V dc |
| Output Current 1 | 1.25mA |
| Isolation Voltage | 500V |
Key Features
- Features 800V DC output voltage for high voltage applications.
- Operates with a 5V DC input voltage range down to 0V.
- Delivers output current of 1.25mA with 1W maximum output power.
- Designed with a through-hole mounting type for secure PCB installation.
- Wide operating temperature range from -25°C to 75°C for versatile environments.
- Provides galvanic isolation with 500V isolation voltage for safety.
- Includes low ripple and noise of 1% peak-to-peak ensuring signal integrity.
- Minimal size and weight of 5.7g and compact dimensions (23.37mm length, 11.43mm width, 6.35mm depth).
Product Description
XP Power A08P-5 DC-DC Converter is a precision, isolated power converter that steps a low voltage DC input to a high voltage DC output. It features a compact design with a through-hole mounting type, making it ideal for applications demanding minimal size and weight.
This converter supports an input voltage range from 0V to 5V DC, delivering a regulated output of 800V DC at a current of 1.25mA and a power output of 1W. With an isolation voltage of 500V, it ensures safety and noise immunity.
Operating reliably across a temperature range of -25°C to 75°C, it is suitable for various industrial and scientific applications including avalanche photodiodes, capacitor charging, electrophoresis, photomultiplier tubes, piezo devices, and mass spectrometry.
Key features include a low leakage current, quasi-sinewave oscillator, input/output proportionality, and low output/input capacitance. The unit is designed with built-in short circuit protection lasting a minimum of one minute and requires no external components for operation.
800V DC output voltage for high voltage applications. Input voltage range from 0V to 5V DC. Output current of 1.25mA and 1W power capacity. Through-hole mount for PCB integration. Galvanic input to output isolation of 500V.
Low ripple and noise of 1% peak to peak. Operating temperature from -25°C to 75°C. Compact dimensions (23.37mm x 11.43mm x 6.35mm) and weight of 5.7g. One-minute minimum short circuit protection and no external components required.
This DC-DC converter is manufactured in the United States and meets relevant UL and RoHS standards. It is an ideal component for industrial, laboratory, and scientific equipment requiring stable high voltage DC power from low voltage DC sources.
Explore more DC/DC Converters in EnvMart's extensive electronics catalog for your power conversion needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model provides an output voltage of 800V DC, making it suitable for high voltage applications.
The A08P-5 operates with an input voltage range from 0V to 5V DC.
It delivers a maximum output power of 1W.
The output current of this unit is 1.25mA.
This converter has compact dimensions of 23.37mm in length, 11.43mm in width, and 6.35mm in depth.
The A08P-5 operates reliably across a temperature range of -25°C to 75°C.
This model is designed for through-hole mounting, allowing for secure PCB installation.
The unit provides galvanic isolation with an isolation voltage of 500V.
It features low ripple and noise of 1% peak-to-peak, ensuring signal integrity.
The A08P-5 includes built-in short circuit protection lasting a minimum of one minute and requires no external components for operation.
This DC-DC converter is manufactured in the United States.
It is suitable for various applications including avalanche photodiodes, capacitor charging, electrophoresis, photomultiplier tubes, piezo devices, and mass spectrometry.
