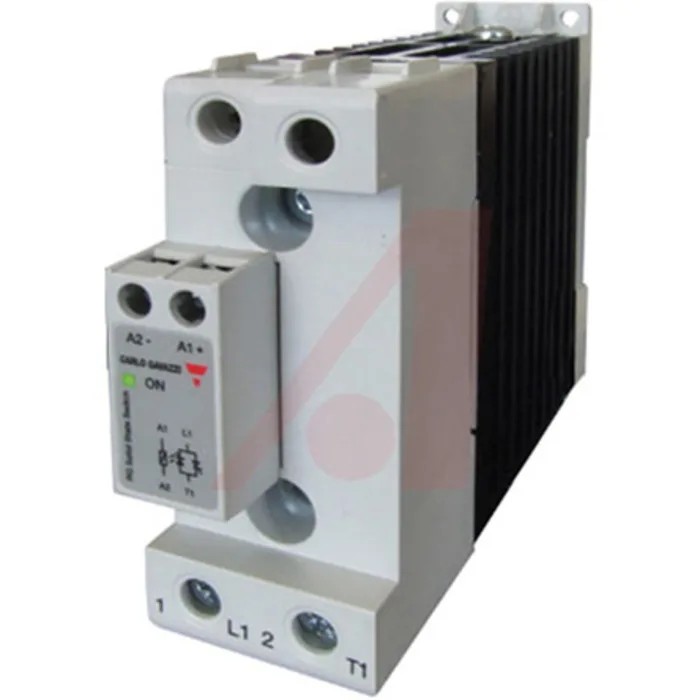

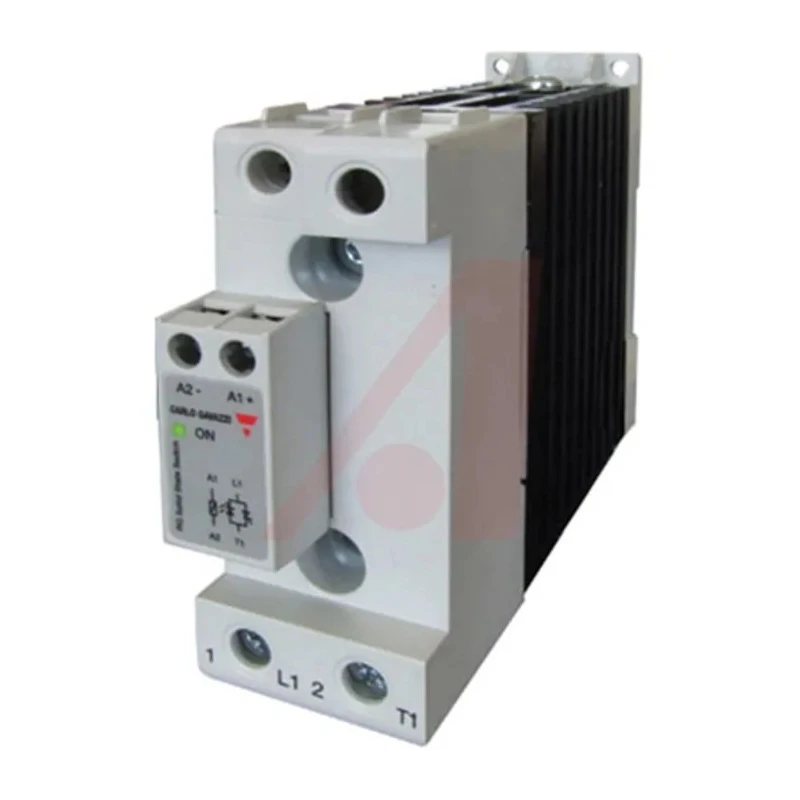

Crydom RGC Series Solid State Relay, 25.5 A Load Current, 240 V AC Load, 32 V Control Voltage, DIN Rail Mount RGC1A23D20KGU

Carlo Gavazzi RGC1A23D20KGU Solid State Relay is engineered for industrial electrical control applications requiring reliable switching of moderate currents. It supports a maximum load current of 25.5 A and a maximum load voltage of 240 V AC, making it suitable for various automation and control panel assemblies.

The relay mounts easily on DIN rails, providing space efficiency within electrical panels. It features screw type terminals that facilitate secure and stable electrical connections. The control voltage input ranges from 3 V to 32 V, allowing flexible control circuit integration.

Zero Cross Switching technology minimizes electrical noise and relay wear by switching when the AC load voltage crosses zero, thus extending device longevity. The device is rated IP20, protecting internal components from accidental ingress of solid objects larger than 12 mm and is designed for operation within a temperature range from -40°C to 80°C.

This model integrates a varistor output type for voltage transient protection, helping to safeguard downstream equipment against voltage spikes. Its design accommodates a short circuit current rating of 100 kA, enhancing resilience during fault conditions.

The dimensions of 125 mm (height) by 110 mm (length) and 70 mm (width) provide a compact footprint to maximize panel space usage. The contact configuration is single pole single throw (SPST), suitable for straightforward switching tasks.

Originating from Malta and compliant with multiple standards including UKCA, RoHS, CE, UL, VDE, and others, this relay assures conformity with industrial and international safety requirements.

Ideal applications include industrial automation, manufacturing process control, HVAC systems, and electrical distribution panels where reliable and compact solid state switching solutions are needed.

Browse the Carlo Gavazzi range of industrial relays and solid state contactors on EnvMart for advanced electrical control components. Supports a maximum load voltage of 240 V AC. Operates within a control voltage range from 3 V to 32 V.

Features Zero Cross Switching function for reduced electrical noise. IP20 rated for protection against solid objects over 12 mm. Compact dimensions: 125 mm height, 110 mm length, and 70 mm width. Equipped with screw terminal type connections for secure wiring.

Short circuit current rating of 100 kA ensures durability under fault conditions. Designed to operate between temperatures of -40°C and 80°C. Output incorporates varistor for integrated voltage transient protection. Single pole single throw (SPST) contact configuration.
