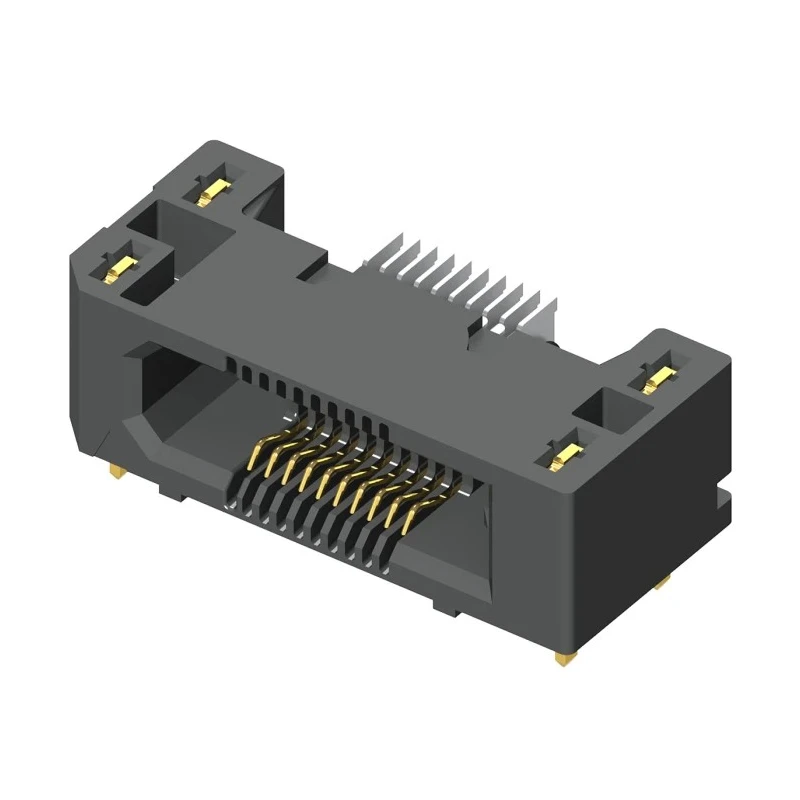

Samtec ERF5 Series Straight Surface PCB Socket, 150-Contact, 2 Row, 0.5 mm Pitch, 12 mm Stacking Height

Samtec ERF5 ERF5-075-05.0-L-DV-K-TR Straight Surface PCB Socket is a high-performance 0.5 mm pitch, 150-contact board-to-board connector designed for high-frequency SMT applications. Rated for 1.6A current and 194V voltage, it operates reliably across a wide temperature range from -55°C to 125°C.

This socket features ruggedized Edge Rate contacts with a smooth milled gold plating over beryllium copper alloy contacts, enhancing durability and maintaining excellent electrical performance. The liquid crystal polymer housing provides thermal stability and mechanical strength.

The straight orientation with surface mounting allows easy integration on printed circuit boards. It can mate with ERM5 series headers to achieve stacking heights between 7 mm to 12 mm, suitable for compact and high-speed electronic assemblies.

The Edge Rate contact design reduces crosstalk and broadside coupling ensuring high signal integrity and data transmission speeds up to 28 Gbit/s. The low insertion and withdrawal forces facilitate easy zippered mating and unmating cycles, extending the product lifecycle and usability in demanding industrial environments.

This PCB socket is ideal for industrial electronics, communication equipment, and other applications requiring reliable, high-speed board connections. Samtec's engineering ensures a robust and high-quality connector compliant with industry standards even though there are no formal certifications specified.

The socket incorporates high-density 150 contacts in two rows. Plated with gold contacts on beryllium copper alloy for optimized conductivity and wear resistance. Uses liquid crystal polymer housing material suitable for harsh operating temperatures.

Termination is solder type compatible with surface mount PCB assembly techniques. Supports applications requiring up to 1.6A current and 194V operating voltage. Designed for straight orientation and board-to-board systems.

Stacking height is 12 mm to accommodate various assembly layouts. Mechanical design reduces wear, crosstalk, and insertion force for durable performance. Explore a wide range of Samtec PCB Sockets and connectors on EnvMart for your industrial and electronic manufacturing needs.
