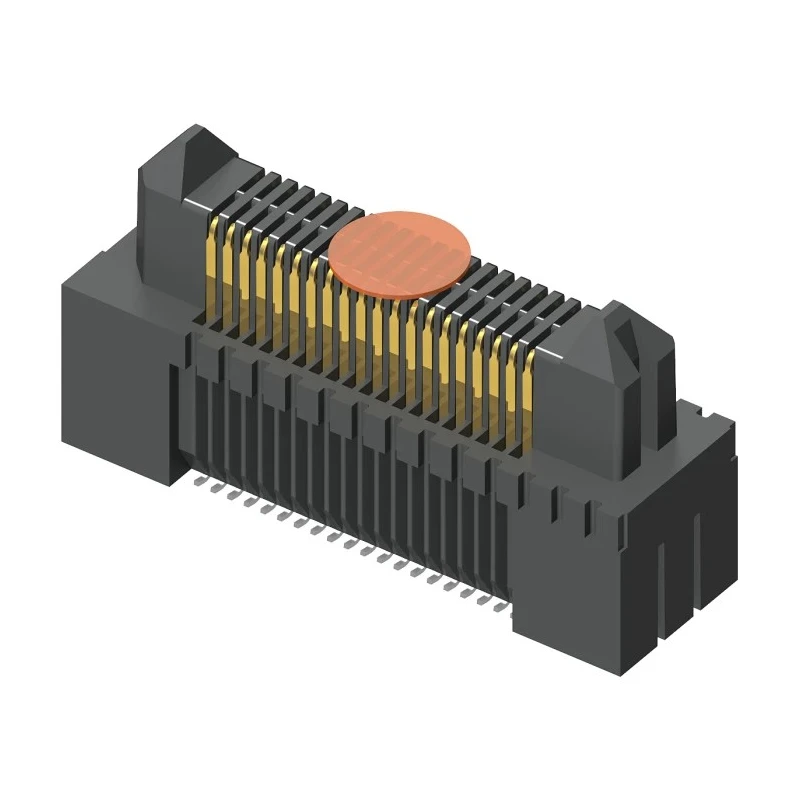

Samtec PCB Header 0.5 mm Pitch, 2 Row, 100 Contacts, Shrouded, Surface Mount ERM5 Series ERM5

Samtec ERM5 is a high-speed PCB header connector designed for board-to-board surface mounting application. This ERM5 Series header features a 0.5 mm pitch and a 2-row shrouded configuration with 100 male contacts, delivering exceptional signal integrity and high data speeds up to 28 Gbit/s.

The connector housing is made from Liquid Crystal Polymer, offering excellent mechanical robustness and thermal resistance from -55°C up to 125°C. Contacts are constructed of phosphor bronze and plated with gold to ensure reliable electrical performance and durability over repeated mating cycles.

This surface mount PCB header supports a voltage rating of 194 V and a current rating of 1.5 A, making it suitable for demanding electronics, industrial, and telecommunications equipment.

Key design features include ruggedized Edge Rate contacts which provide high contact wipe to reduce wear and insertion/withdrawal forces, allowing for reliable and long-lasting connections. The shrouded two-row design helps ensure secure mating and prevents misalignment.

ERM5 connectors are compatible with ERF5 series sockets, allowing flexible mating heights between 7 mm to 12 mm to fit various board stackups. This makes it ideal for compact, high-density PCB layouts requiring fast and efficient data transfer.

Designed for high-speed data transmission up to 28 Gbit/s. Features 0.5 mm pitch with 2-row configuration and 100 male contacts. Constructed with Liquid Crystal Polymer housing for durability. Phosphor Bronze contacts plated with gold ensure reliable electrical performance.

Operates in temperature range from -55°C to 125°C. Surface mount type with shrouded orientation for secure connections. Supports up to 194 V and 1.5 A current rating. High contact wipe edge rate contacts reduce wear and insertion force.

Compatible with ERF5 series sockets for mating heights from 7 mm to 12 mm.

This Samtec ERM5 surface mount PCB Header is widely used in industrial electronics, telecommunications, computing, and high-speed data communication applications requiring reliable and compact board-to-board connectors. EnvMart offers this product for professionals seeking robust, high-performance PCB interconnect solutions.
