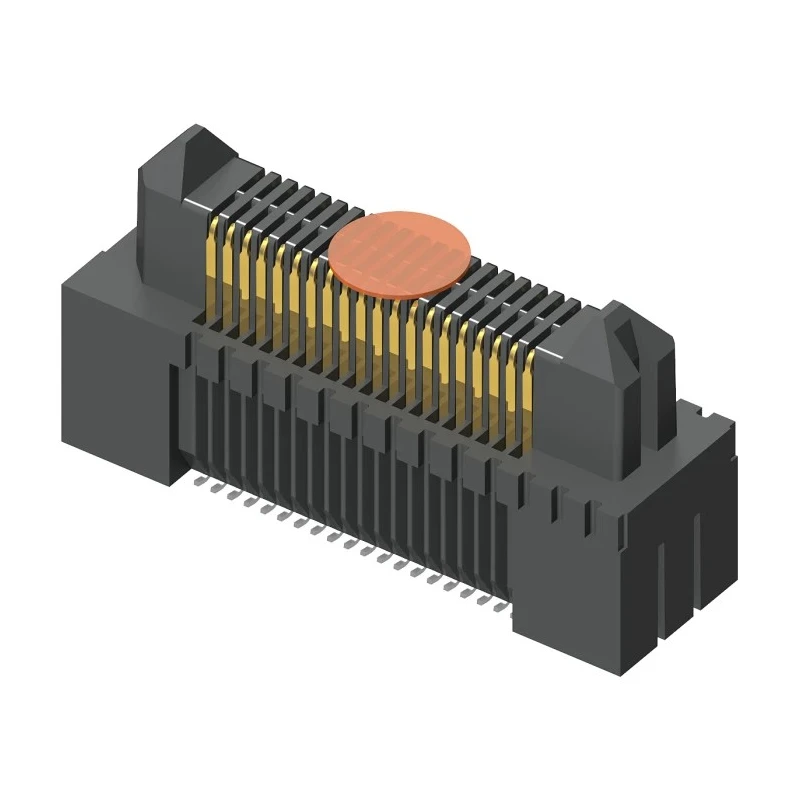

Samtec ERM5 Series Straight Surface PCB Header 40 Contact, 0.5 mm Pitch, 2 Row, Shrouded
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 194V |
| Brand | Samtec |
| Orientation | Straight |
| Current | 1.5A |
| Model | ERM5 |
| Mount Type | Surface |
| Housing Material | Liquid Crystal Polymer |
| Contact Material | Phosphor Bronze |
| Series | ERM5 |
| Termination Type | Solder |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 2 |
| Pitch | 0.5mm |
| Contact Plating | Gold |
| Number of Contacts | 40 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Shrouded |
| Connector System | Board-to-Board |
Key Features
- Constructed with high-quality liquid crystal polymer housing for durability.
- Phosphor bronze male contacts plated with gold for superior conductivity.
- Designed for board-to-board connection with surface mount mounting type.
- Operates in temperatures from -55°C to 125°C for versatile use.
- Supports current up to 1.5A and voltage rating of 194V for reliable electrical performance.
- Shrouded design ensures protection and secure mating.
- Edge Rate contacts provide high-speed data transmission up to 28 Gbit/s.
- Minimum row pitch of 0.5mm enables compact PCB layouts.
Product Description
Samtec ERM5-020-05.0-L-DV-K-TR is a high-speed straight surface PCB header designed for advanced electronic applications requiring reliable board-to-board connection. Featuring 40 male contacts arranged in two rows with 0.5 mm pitch, this shrouded header facilitates secure connection and protection against damage.
The liquid crystal polymer housing provides robust mechanical strength and thermal stability, operating effectively within a wide temperature range from -55°C to 125°C. The phosphor bronze contacts plated with gold ensure high conductivity and resistance to corrosion, making this header suitable for long-life cycle applications.
ERM5 series connectors are built with ruggedized Edge Rate contacts to support high-speed differential signaling performance up to 28 Gbit/s. The milled contact surface reduces wear and lowers insertion and withdrawal forces, improving durability and ease of use during mating and unmating cycles.
Ideal for compact and high-density circuitry, this surface mount header is designed for board-to-board connection systems and can be paired with compatible ERF5 series sockets to create various mating heights between 7 mm and 12 mm.
The shrouded design enhances connector protection and prevents misalignment during installation. This product is widely used in industrial, communication, computing, and embedded systems applications where high signal integrity and reliable electrical performance are critical.
Constructed with high-quality liquid crystal polymer housing for durability. Phosphor bronze male contacts plated with gold for superior conductivity. Designed for board-to-board connection with surface mount mounting type.
Operates in temperatures from -55°C to 125°C for versatile use. Supports current up to 1.5A and voltage rating of 194V for reliable electrical performance. Shrouded design ensures protection and secure mating. Edge Rate contacts provide high-speed data transmission up to 28 Gbit/s.
Minimum row pitch of 0.5mm enables compact PCB layouts. Explore the extensive category of PCB Headers at EnvMart to find complementary connectors, sockets, and accessories for your electronic assembly needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model supports a maximum current of 1.5A and a voltage rating of 194V.
It operates effectively within a temperature range of -55°C to 125°C.
The header features 40 male contacts arranged in two rows.
The pitch size of the contacts is 0.5 mm, allowing for compact PCB layouts.
The housing is made from liquid crystal polymer, while the contacts are constructed from phosphor bronze and plated with gold for conductivity.
It is designed for board-to-board connections with a surface mount mounting type.
The shrouded design of this model ensures protection and helps prevent misalignment during installation.
It supports high-speed data transmission up to 28 Gbit/s, thanks to its Edge Rate contacts.
The termination type for this model is solder, suitable for secure connections on PCBs.
The country of origin for this product is India.
It is widely used in industrial, communication, computing, and embedded systems applications.
Yes, it can be paired with compatible ERF5 series sockets to create various mating heights between 7 mm and 12 mm.
